Pump Power Requirements

The pump curve in Figure 53 is part of a family of curves for
a pump. Each curve of the family represents a different size
impeller used with the pump at a specified rpm. It relates to the
power input required just to move the water (water horsepower)
as follows:
Water hp = (flow x head x SG) ÷ 3960
Where:
flow = gpm
head = ft
SG = specific gravity of the liquid (water = 1)
The motor driving the pump must have a horsepower rating in
excess of water horsepower to take care of bearing and seal friction,
recirculation within the housing, and impeller efficiency.
NOTE: Water horsepower increases with head and flow. If
flow is allowed to increase, the motor may overload.
15"DIA
100
14"DIA
80
13"DIA
60
12"DIA
11"DIA
10"DIA
40
7
NPSH
20
0
0 200
ENGINEERING MANUAL OF AUTOMATIC CONTROL
50%
60%
70%
75%
8
NPSH
400 600 800
CAPACITY - G.P.M.
Courtesy of Aurora Pump

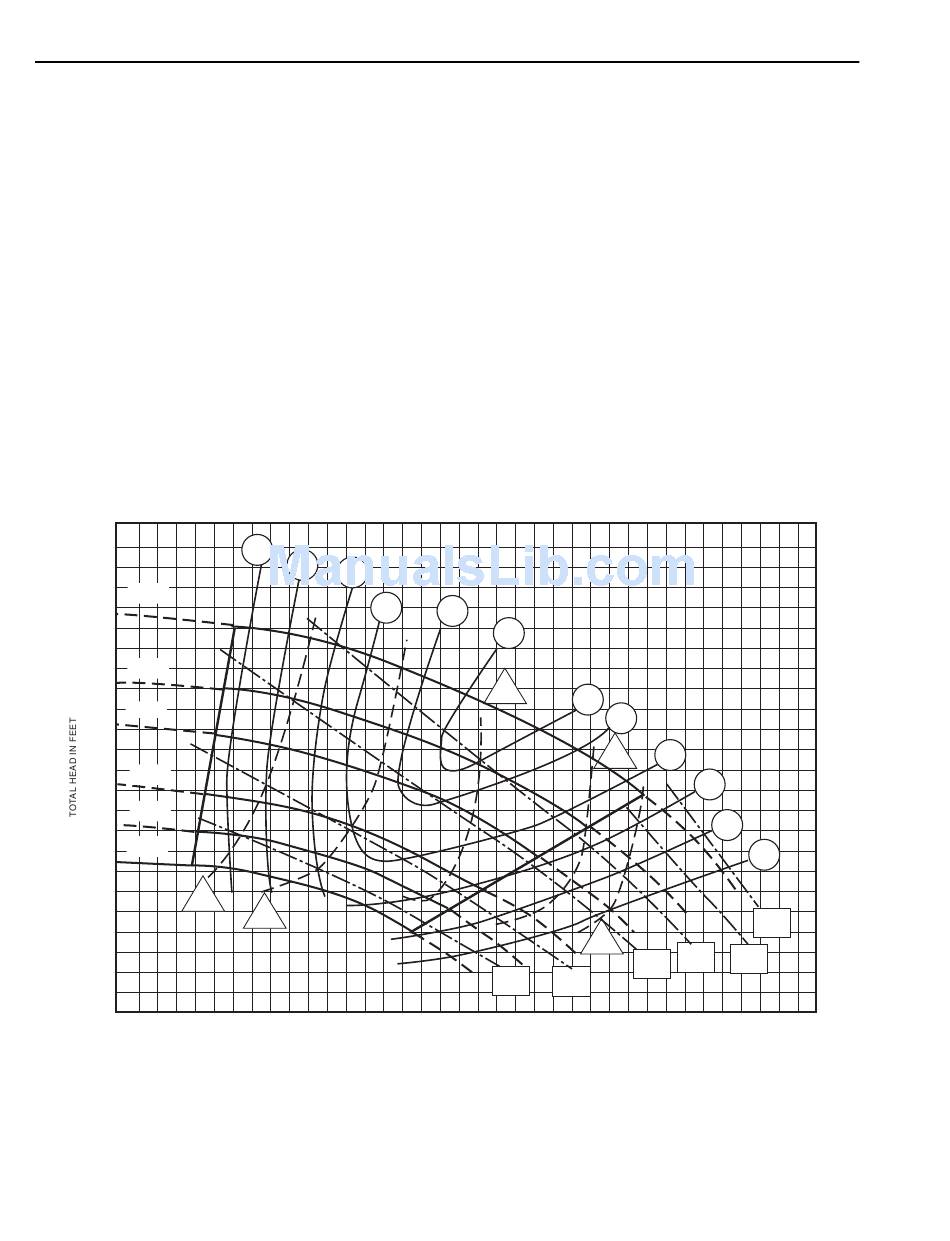

Fig. 54. 1150 RPM Typical Pump Curve.
