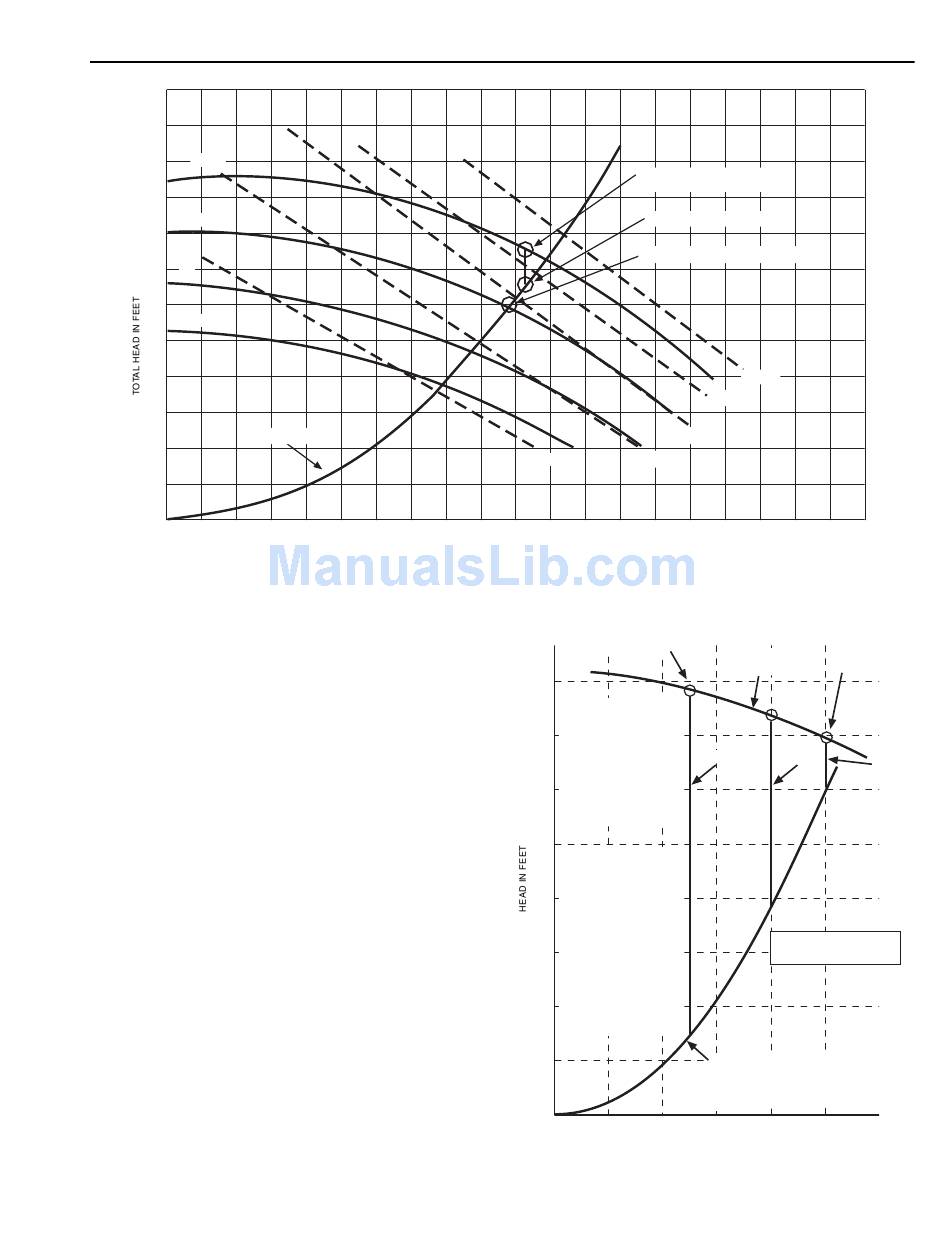

To better understand system curves, pump curves, and flow
control, Figure 58 shows the control valve(s) (the only variable
element of a typical system curve) separately from the rest of
the system elements. Lines are shown for each of three valve
positions; full, 80 percent, and 50 percent flow. These lines,
when added to the curve for all other elements of the system
intersect the pump curve at the corresponding operating point(s).
Figure 58 shows a system with 500 gpm and 70 foot head at
design, 10 ft of which is a full open control valve at the end of
the piping run. Line "A" represents the control valve and
connects the pump curve to the static-element system curve. If
all control valves positioned to 80 percent flow, the pump head
rises, the static-element system resistance drops, and the control
valve, represented by line "B", makes the difference; about 36
ft. Similarly, at 50 percent flow, the valve drop, represented by
line "C", accounts for about 63 ft.
