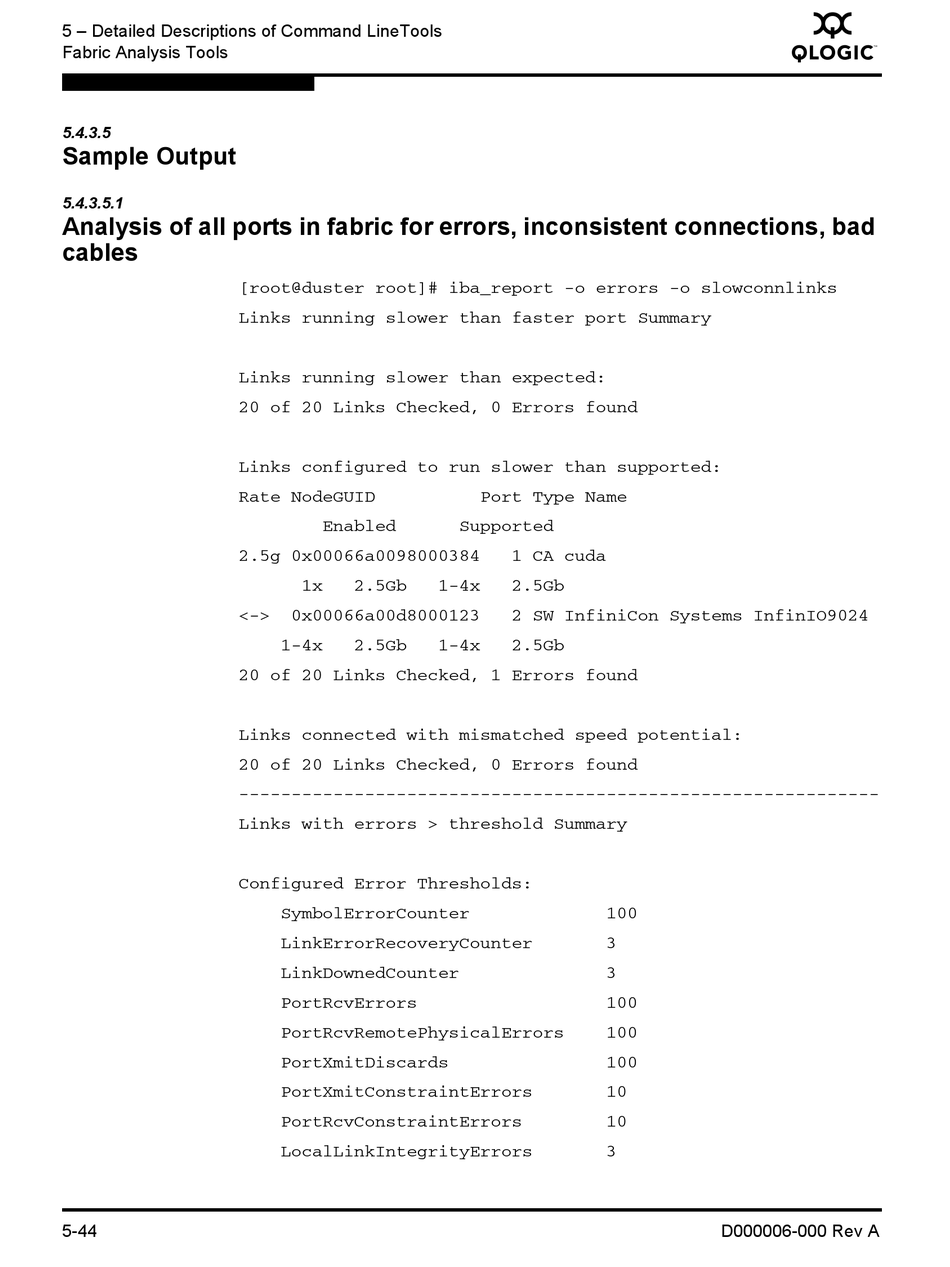

Qlogic Fast Fabric User Manual page 98

5 – Detailed Descriptions of Command LineTools
Fabric Analysis Tools
5.4.3.5
Sample Output
5.4.3.5.1
Analysis of all ports in fabric for errors, inconsistent connections, bad
cables
[root@duster root]# iba_report -o errors -o slowconnlinks
Links running slower than faster port Summary
Links running slower than expected:
20 of 20 Links Checked, 0 Errors found
Links configured to run slower than supported:
Rate NodeGUID
2.5g 0x00066a0098000384
<->
20 of 20 Links Checked, 1 Errors found
Links connected with mismatched speed potential:
20 of 20 Links Checked, 0 Errors found
-------------------------------------------------------------
Links with errors > threshold Summary
Configured Error Thresholds:
5-44
Enabled Supported
1x 2.5Gb 1-4x
0x00066a00d8000123
1-4x 2.5Gb 1-4x
SymbolErrorCounter
LinkErrorRecoveryCounter
LinkDownedCounter
PortRcvErrors
PortRcvRemotePhysicalErrors
PortXmitDiscards
PortXmitConstraintErrors
PortRcvConstraintErrors
LocalLinkIntegrityErrors
Port Type Name
1 CA cuda
2.5Gb
2 SW InfiniCon Systems InfinIO9024
2.5Gb
100
3
3
100
100
100
10
10
3
Q
D000006-000 Rev A
