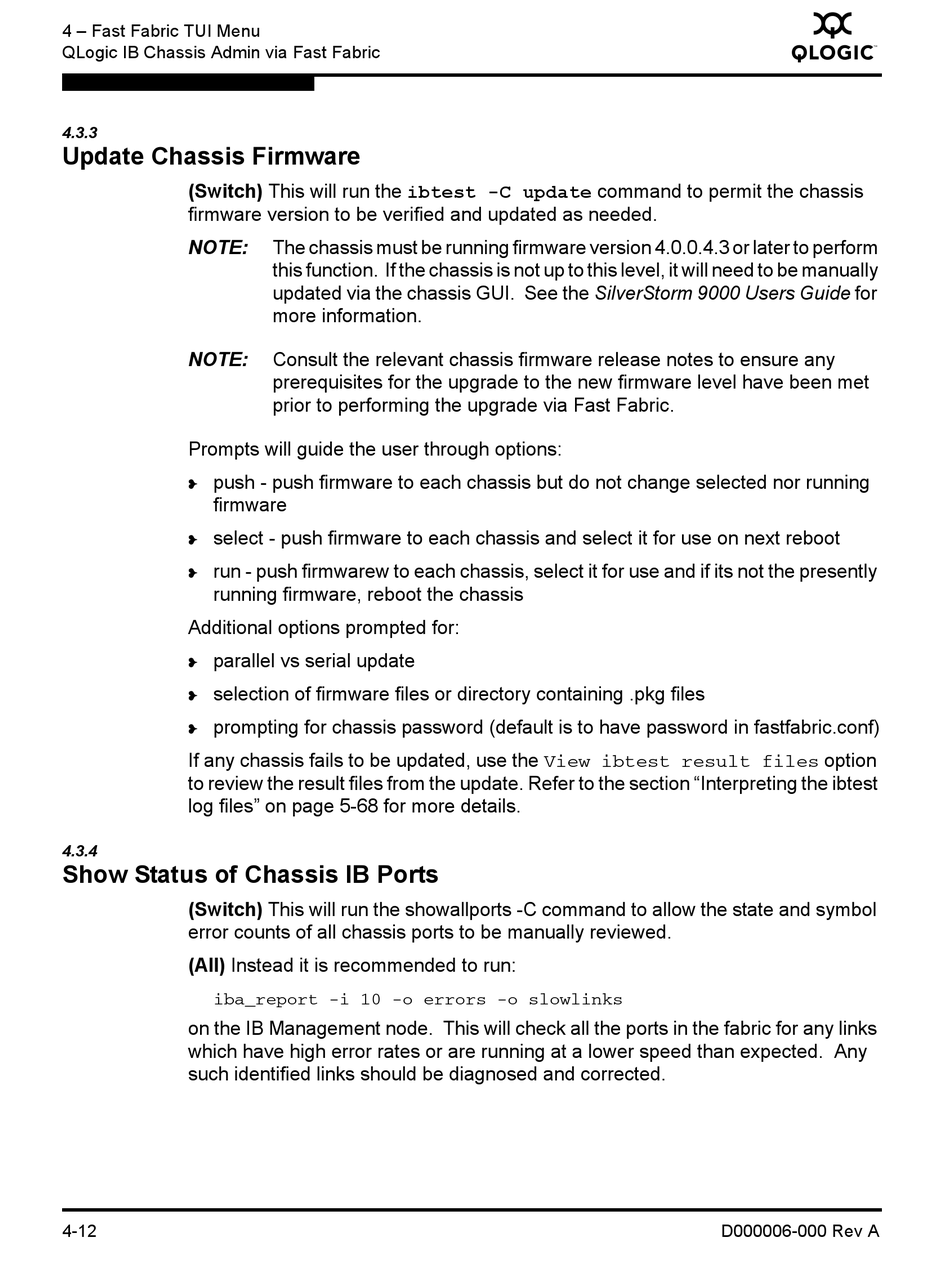

Update Chassis Firmware; Show Status Of Chassis Ib Ports - Qlogic Fast Fabric User Manual

4 – Fast Fabric TUI Menu
QLogic IB Chassis Admin via Fast Fabric
4.3.3

Update Chassis Firmware

(Switch) This will run the ibtest -C update command to permit the chassis
firmware version to be verified and updated as needed.
NOTE:
NOTE:
Prompts will guide the user through options:
push - push firmware to each chassis but do not change selected nor running
❥
firmware
select - push firmware to each chassis and select it for use on next reboot
❥
run - push firmwarew to each chassis, select it for use and if its not the presently
❥
running firmware, reboot the chassis
Additional options prompted for:
parallel vs serial update
❥
selection of firmware files or directory containing .pkg files
❥
prompting for chassis password (default is to have password in fastfabric.conf)
❥
If any chassis fails to be updated, use the View ibtest result files option
to review the result files from the update. Refer to the section "Interpreting the ibtest
log files" on page 5-68 for more details.
4.3.4

Show Status of Chassis IB Ports

(Switch) This will run the showallports -C command to allow the state and symbol
error counts of all chassis ports to be manually reviewed.
(All) Instead it is recommended to run:
iba_report -i 10 -o errors -o slowlinks
on the IB Management node. This will check all the ports in the fabric for any links
which have high error rates or are running at a lower speed than expected. Any
such identified links should be diagnosed and corrected.
4-12
The chassis must be running firmware version 4.0.0.4.3 or later to perform
this function. If the chassis is not up to this level, it will need to be manually
updated via the chassis GUI. See the SilverStorm 9000 Users Guide for
more information.
Consult the relevant chassis firmware release notes to ensure any
prerequisites for the upgrade to the new firmware level have been met
prior to performing the upgrade via Fast Fabric.
Q
D000006-000 Rev A
