Setting The Configuration Change Option; Options Dialog Box: Configuration Change - Qlogic SANsurfer FC HBA Manager User Manual

A

Setting the Configuration Change Option

SANsurfer FC HBA Manager keeps current the devices and the LUNs that the
adapter shows. When cables are pulled, devices are hot-plugged into the SAN, or
devices are removed, SANsurfer FC HBA Manager generates a configuration
event in the HBA Event Log.
To set how SANsurfer FC HBA Manager handles configuration changes:
1. To access the Options dialog box, choose one of the following methods:
The Options dialog box opens

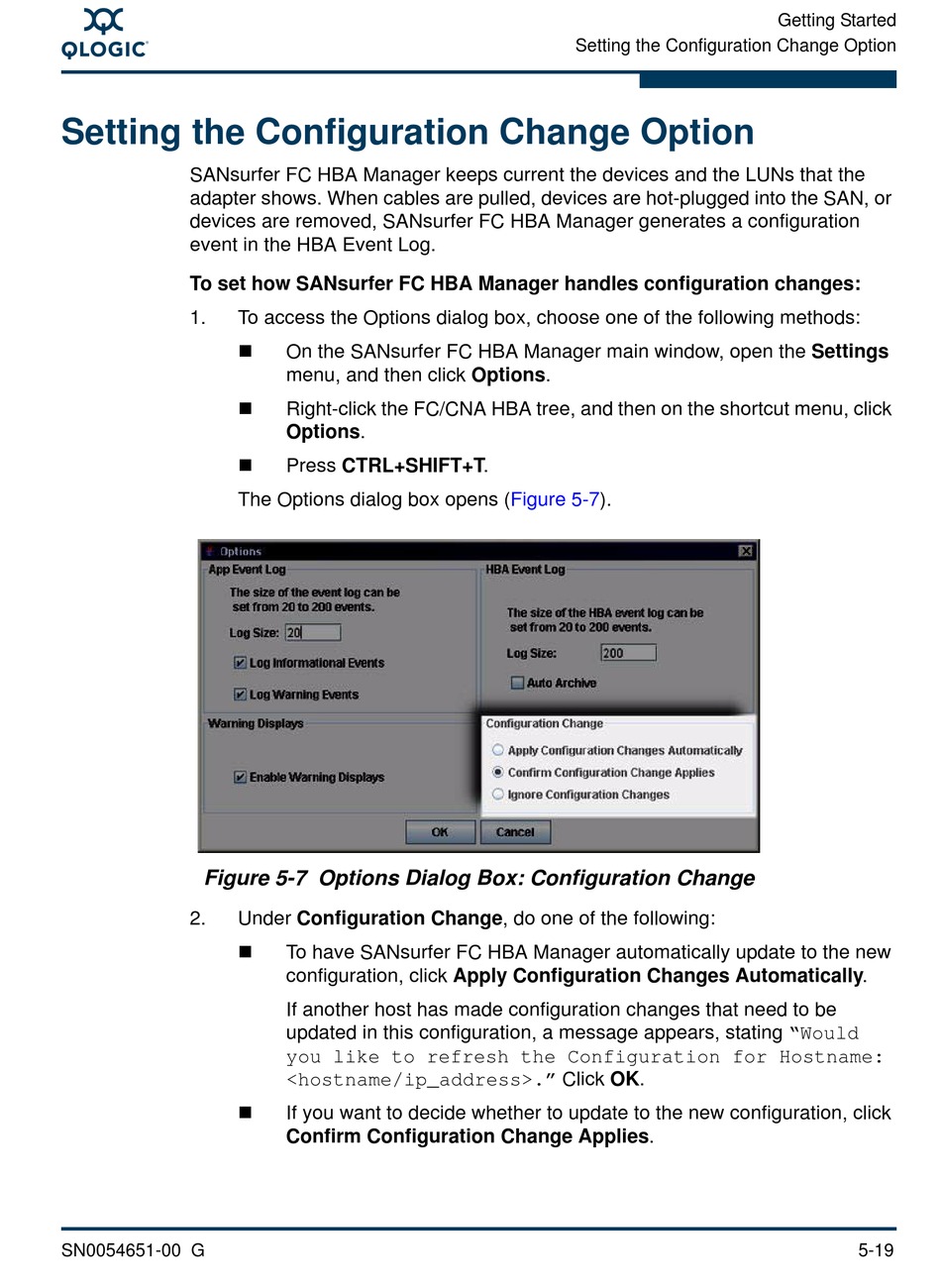

Figure 5-7 Options Dialog Box: Configuration Change
2. Under Configuration Change, do one of the following:
SN0054651-00 G
On the SANsurfer FC HBA Manager main window, open the Settings
menu, and then click Options.
Right-click the FC/CNA HBA tree, and then on the shortcut menu, click
Options.
Press CTRL+SHIFT+T.
To have SANsurfer FC HBA Manager automatically update to the new
configuration, click Apply Configuration Changes Automatically.
If another host has made configuration changes that need to be
updated in this configuration, a message appears, stating "Would
you like to refresh the Configuration for Hostname:
<hostname/ip_address>." Click OK.
If you want to decide whether to update to the new configuration, click
Confirm Configuration Change Applies.
Setting the Configuration Change Option
(Figure 5-7).
Getting Started
5-19
