A
FC/CNA
HBA Tree

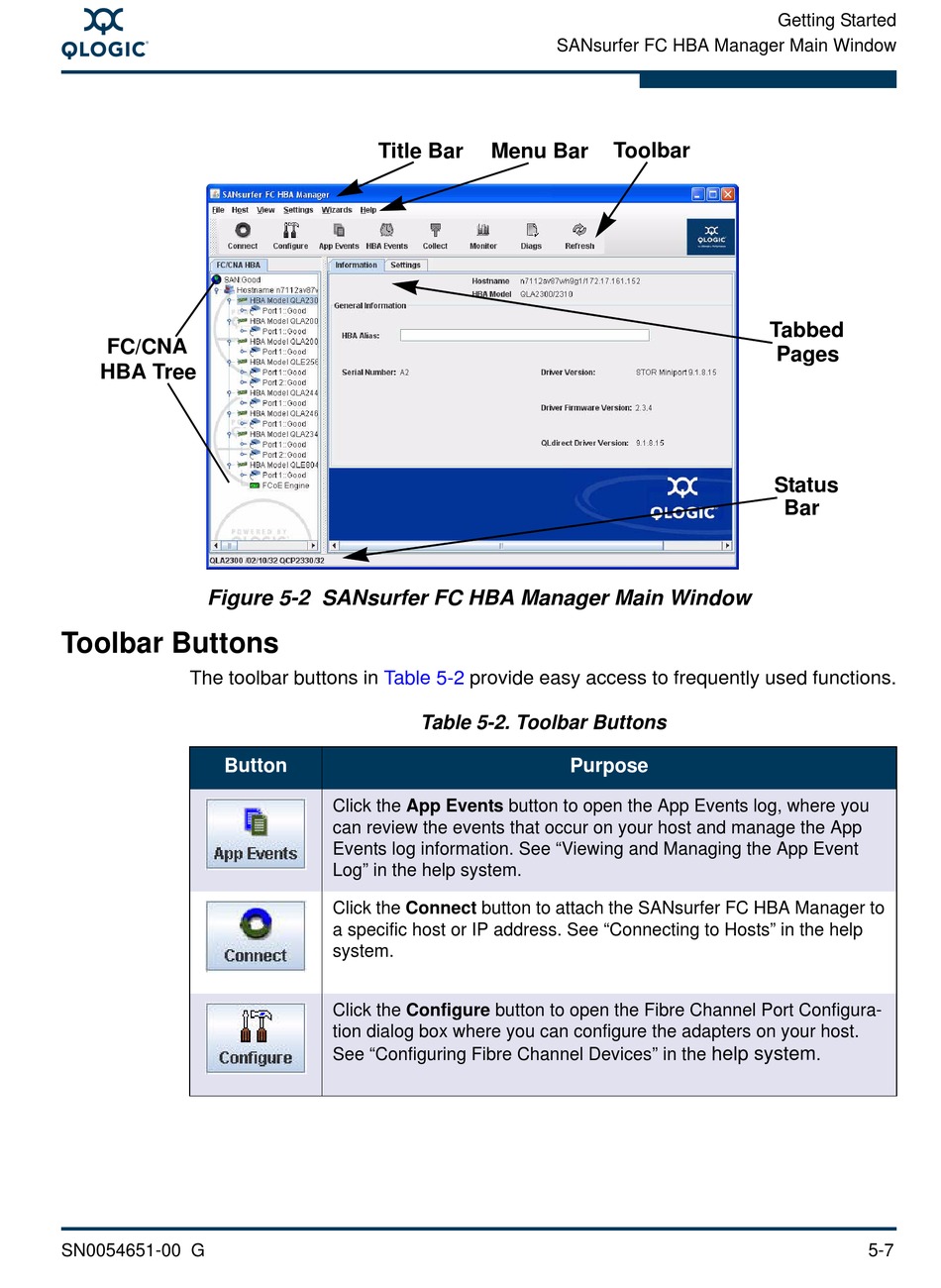

Figure 5-2 SANsurfer FC HBA Manager Main Window

Toolbar Buttons

The toolbar buttons in
Button
SN0054651-00 G
Menu Bar
Title Bar
Table 5-2 provide easy access to frequently used functions.
Table 5-2. Toolbar Buttons
Click the App Events button to open the App Events log, where you
can review the events that occur on your host and manage the App
Events log information. See "Viewing and Managing the App Event
Log" in the help system.
Click the Connect button to attach the SANsurfer FC HBA Manager to
a specific host or IP address. See "Connecting to Hosts" in the help
system.
Click the Configure button to open the Fibre Channel Port Configura-
tion dialog box where you can configure the adapters on your host.
See "Configuring Fibre Channel Devices" in the

SANsurfer FC HBA Manager Main Window

Toolbar
Purpose
help system
Getting Started
Tabbed
Pages
Status
Bar
.
5-7
