System Map: Left View


Multi-in-1 Card Reader
The card reader allows you to use the most
popular digital storage card formats:
MMC (MultiMedia Card) / RSMMC
SD (Secure Digital) / Mini SD / SDHC /
SDXC Compatible
MS (Memory Stick) / MS Pro / MS Duo
USB 3.0 Port
USB 3.0 ports are denoted by their blue col-
or; USB 2.0 ports are colored black. Note
that the USB 3.0 ports require a driver for
Windows 7 (see ""USB 3.0 (Win 7 Only)"
on page D - 24) installation (Windows 8
does not require a driver installation) and
do not support wake on USB.
2
4
4
1
4
5
6
Quick Start Guide

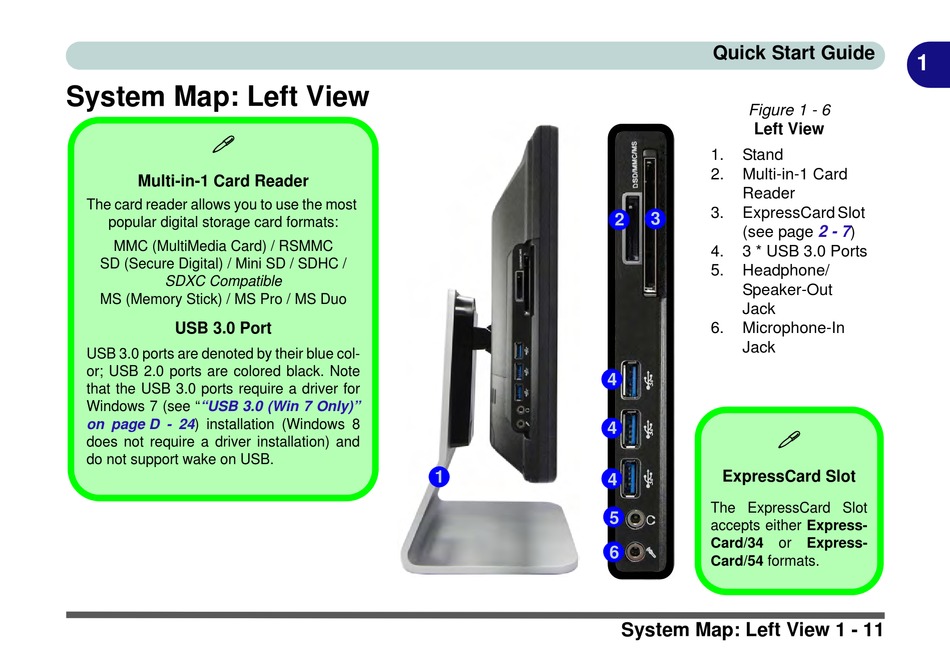

Figure 1 - 6
Left View
1. Stand
2. Multi-in-1 Card
Reader
3. ExpressCard Slot
3
(see page
4. 3 * USB 3.0 Ports
5. Headphone/
Speaker-Out
Jack
6. Microphone-In
Jack

ExpressCard Slot
The ExpressCard Slot
accepts either Express-
Card/34 or Express-
Card/54 formats.
System Map: Left View 1 - 11
1
2 - 7)
