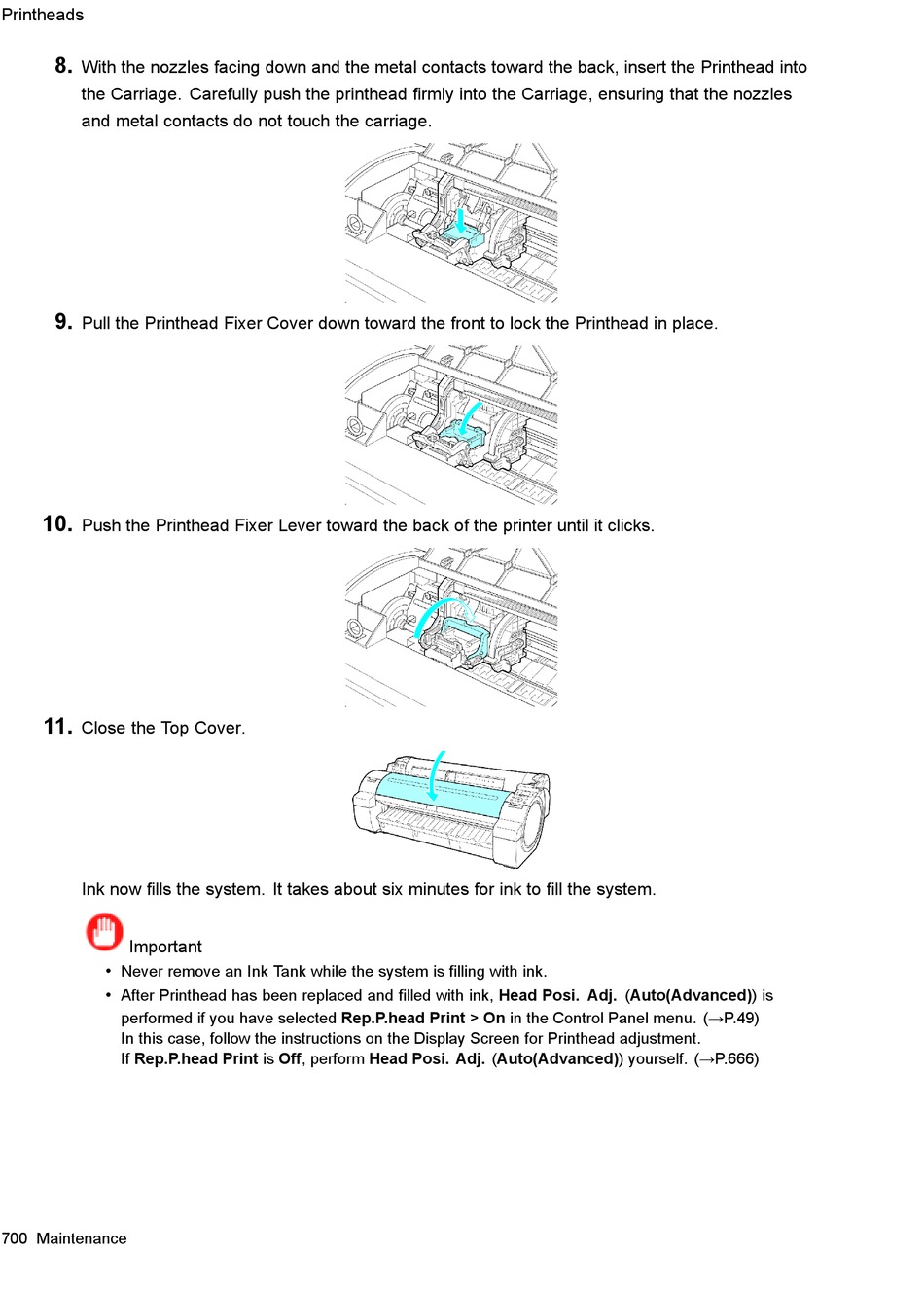

Printheads
8.
With the nozzles facing down and the metal contacts toward the back, insert the Printhead into
the Carriage. Carefully push the printhead rmly into the Carriage, ensuring that the nozzles
and metal contacts do not touch the carriage.
9.
Pull the Printhead Fixer Cover down toward the front to lock the Printhead in place.
10.
Push the Printhead Fixer Lever toward the back of the printer until it clicks.
11.
Close the Top Cover.
Ink now lls the system. It takes about six minutes for ink to ll the system.
Important
•
Never remove an Ink Tank while the system is lling with ink.
•
After Printhead has been replaced and lled with ink, Head Posi. Adj. (Auto(Advanced)) is
performed if you have selected Rep.P.head Print > On in the Control Panel menu. (→P.49)
In this case, follow the instructions on the Display Screen for Printhead adjustment.
If Rep.P.head Print is Off, perform Head Posi. Adj. (Auto(Advanced)) yourself. (→P.666)
