Installation
2.
If feet were previously installed on the bottom of the MDA,
remove them.
3.
For furniture mounting, hold the MDA with the attached
brackets against the underside of the table or other
furniture. Mark the location of the screw holes of the
bracket on the mounting surface.
4.
For furniture mounting, drill 3/32" (2 mm) diameter pilot
holes, 1/4" (6.3 mm) deep in the mounting surface at the
marked screw locations.
5.
For furniture mounting, insert #8 wood screws into the four
pilot holes. Tighten each screw into the mounting surface
until just less than 1/4" of the screw head protrudes.
6.
For furniture mounting, align the mounting screws with
the slots in the brackets and place the MDA against the
surface, with the screws through the bracket slots.
7.
For furniture mounting, slide the receiver slightly forward
or back, then tighten all four screws to secure the MDA in
place.
8.
For projector mounting, secure the MDA to a projector
mount or other surface by inserting the mounting bolt
through the bracket's slotted hole.
Connections and Indicator
Refer to figure 5.
Video Input connector — (MDA 5V - composite video and
1
MDA 5SV - S-video) Connect an input to this connector.
Video Outputs (1 through 5) connectors — Connect up to
2
five video devices to these connectors. (MDA 5V -
composite video and MDA 5SV - S-video).
Power connector— Plug the external 12V power supply
3
into this 2-pole captive screw connector. The power supply
is included with the unit. Figure 4 shows how to wire the
connector.
CAUTION
When connecting the power supply, voltage polarity
is extremely important. Applying power with
incorrect voltage polarity could damage the power
supply and the MDA. Identify the power cord
negative lead by the ridges on the side of the cord.
4
MDA 5V, 5SV, 5A RCA • Connections
End view of power
Captive Screw
supply output cord.
+12V

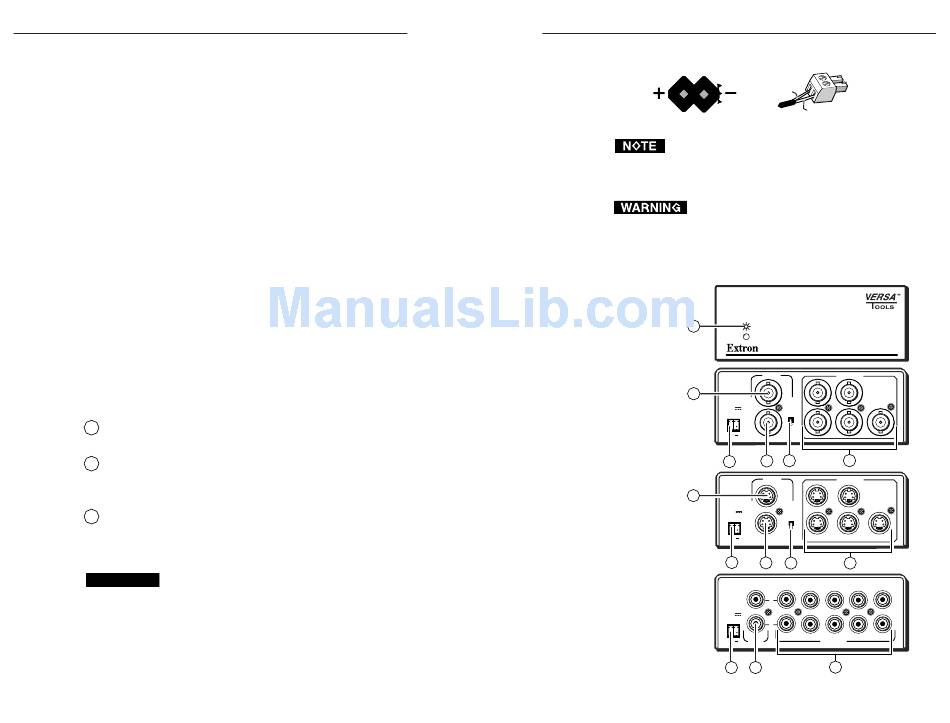

Figure 4 — Power connector wiring
Do not tin the stripped power supply leads before
installing the captive screw connector. Tinned wires are
not as secure in the captive screw connectors and could
pull out.
The two power cord wires must be kept separate
while the power supply is plugged in. Remove
power before continuing.
To verify the polarity before connection, plug in the power
supply with no load and check the output with a voltmeter.
Front Panel
4
All Models
INPUT
MDA 5V
1
Rear Panel
POWER
IN
HIGH Z
12V
MDA 5V
.5A MAX
75 Ohm
LOOP
6
3
5
INPUT
MDA 5SV
1
Rear Panel
POWER
IN
HIGH Z
12V
.5A MAX
MDA 5SV
75 Ohm
LOOP
3
6
5
MDA 5A RCA
1
L
Rear Panel
POWER
12V
MDA 5A RCA
.34A MAX
R
INPUT
3
7
Figure 5 — MDA 5V front and rear panels
MDA 5V, 5SV, 5A RCA • Specifications
Connector
Return
DISTRIBUTION AMPLIFIER
OUTPUTS
3
1
2
4
5
2
OUTPUTS
3
1
4
2
5
2
2
3
4
5
OUTPUTS
8
5
