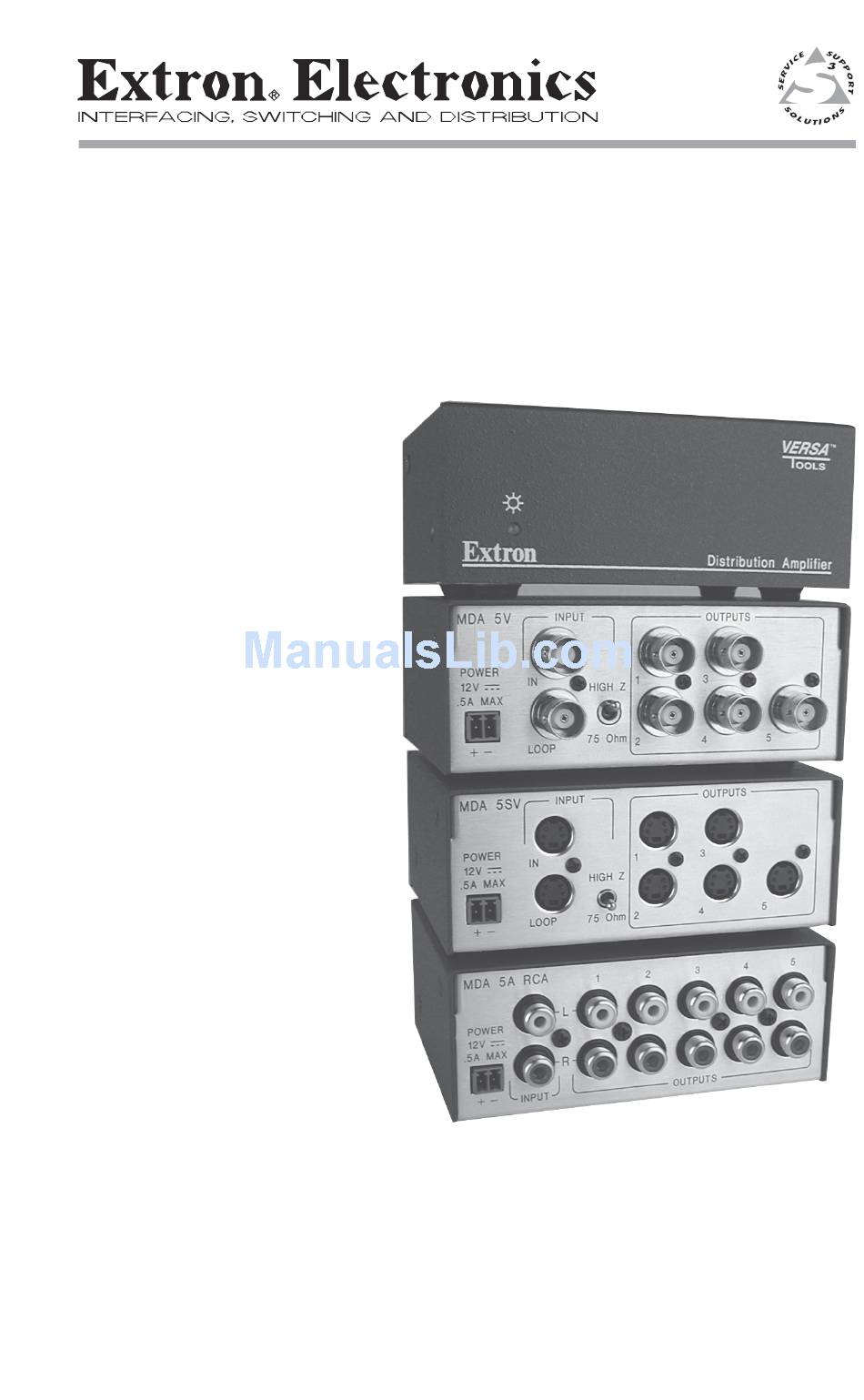

- Page 1 User’s Guide VersaTools™ MDA 5V, 5SV, 5A RCA Mini Distribution Amplifiers 68-614-01 Rev. B Printed in the USA 08 02...
-
Page 2: Rack Mounting
The MDAs ship with external, desktop 12V power supplies, which accept 100-240VAC input. Installation The MDA 5V, 5SV, and 5A RCA can be mounted on a rack shelf, under a desk or tabletop, or on a projector bracket. Rack mounting For optional rack mounting, mount the MDA on a VersaTools 19"... -
Page 3: Installation
MDA. Identify the power cord negative lead by the ridges on the side of the cord. MDA 5V, 5SV, 5A RCA • Connections End view of power Captive Screw supply output cord. -
Page 4: Specifications
Return loss ... <-40dB @ 0 to 10 MHz for MDA 5V <-25dB @ 0 to 10 MHz for MDA 5SV Maximum DC offset ... 1.0V MDA 5V, 5SV, 5A RCA • Specifications Video output Number/signal type MDA 5SV ... 6 S-video: 5 buffered for distribution, 1 passive loop-through MDA 5V ... -
Page 5: Fcc Class A Notice
General Power ... 100VAC to 240VAC, 50/60 Hz, 5 watts, Temperature/humidity ... Storage -40° to +158°F (-40° to +70°C) / 10% Rack mount ... Yes, with optional 1U rack shelf, part #60- Enclosure type ... Metal Enclosure dimensions ... 1.7" H x 4.3" W x 3.0" D (1U high, quarter Product weight ...
