User's Guide
VersaTools
®
MTP DA4 and MTP DA8
Mini Twisted Pair Distribution Amplifiers
Video, Audio, and/or Serial Link
68-975-01 Rev. B
02 05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VersaTools MTP DA4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics VersaTools MTP DA4

Summary of Contents for Extron electronics VersaTools MTP DA4

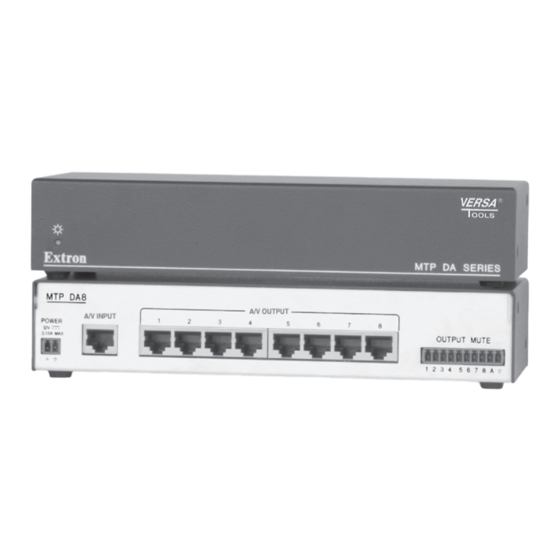

  • Page 1 © 2005 Extron Electronics. All rights reserved. User’s Guide VersaTools Extron Electronics, Japan Kyodo Building 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan +81.3.3511.7655 Fax +81.3.3511.7656 ® MTP DA4 and MTP DA8 Video, Audio, and/or Serial Link Mini Twisted Pair Distribution Amplifiers 68-975-01 Rev. B 02 05...

  • Page 2: Fcc Class A Notice

    Precautions Safety Instructions • English Warning This symbol is intended to alert the user of important Power sources • This equipment should be operated only from the power source indicated on the product. This equipment is intended to be used with a main operating and maintenance (servicing) instructions power system with a grounded (neutral) conductor.
  • Page 3 Mute output #7 Out #8 Mute output #8 1 2 3 4 A Out All Mute all Ground VersaTools ® MTP DA4 and MTP DA8 • Quick Start Guide TIA/EIA 568 A TP connector Wire color White-green Green White-orange Blue White-blue...

  • Page 4: Table Of Contents

    ® MTP DA4 and MTP DA8, cont’d Step 6 Connect 12 VDC power. See the drawing at right. VersaTools ® MTP DA4 and MTP DA8 • Quick Start Guide QS-2 Table of Contents POWER 0.93A MAX 0.2” (5 mm) Table of Contents, cont’d Introduction ...

  • Page 5: Introduction

    02 05 ® MTP DA4 and MTP DA8 The Extron MTP DA4 and MTP DA8 twisted pair (TP) distribution amplifiers (DAs) distribute a single TP input signal to four or eight MTP receivers. The TP input can be from any of the following MTP transmitter/DA/scaler families: •...

  • Page 6: Tp Cable Advantages

    MTP 15HD system. This suggested range is the same for either of the following two examples: ® VersaTools MTP DA4 and MTP DA8 • TP Cable Advantages System 1 components: One MTP T 15HD A transmitter One MTP DA4...

  • Page 7: Vtt001/Vtr001 Transmission Distances

    VersaTools VersaTools MTP DA4 and MTP DA8 • Termination Jumpering MTP DA4 and MTP DA8 • TP Cable Advantages Select audio or serial distribution — Locate jumpers J3 and J4 on the main board and shift the jumper from the audio (A) (rear) to the serial (S) (front) position (figure 2).

  • Page 8: Installation

    ® VersaTools VersaTools MTP DA4 and MTP DA8 • TP Cable Advantages MTP DA4 and MTP DA8 • Installation Attach the rack shelf to the rack using the supplied bolts. Only products in the VersaTools line can be mounted on a VersaTools shelf.

  • Page 9: Furniture Mounting

    ® ® VersaTools VersaTools MTP DA4 and MTP DA8 • Installation MTP DA4 and MTP DA8 • TP Cable Advantages Connections Do not connect these devices to a computer data or CAUTION telecommunications network. MTP DA8...

  • Page 10: Power Supply Wiring

    ® ® VersaTools VersaTools MTP DA4 and MTP DA8 • TP Cable Advantages MTP DA4 and MTP DA8 • Connections Function Out #1 Mute output #1 Out #2...

  • Page 11: Front Panel Power Indicator

    Power LED — Indicates power is applied to the MTP DA. ® ® 12 VersaTools VersaTools MTP DA4 and MTP DA8 • Skew Delay Problems MTP DA4 and MTP DA8 • TP Cable Advantages Skew Delay Problems Specifications Video Gain ... Unity Video input —...

  • Page 12: Part Numbers

    Contact closure pin configurations MTP DA4 ... 1 = mute output 1, 2 = mute output 2, 3 = mute output 3, 4 = mute output 4, 5 = mute all outputs, 6 = GND MTP DA8 ...

  • Page 13: Accessories

    CAT 6 jack (gray) CAT 6 jack (white) CAT 6 jack (ivory) ® ® VersaTools VersaTools MTP DA4 and MTP DA8 • TP Cable Advantages MTP DA4 and MTP DA8 • Part Numbers Part number 60-190-01 60-604-01 60-190-10 60-604-10 70-077-01...
