Embroidery edit
In embroidery edit you can adjust, combine, save, delete and restore designs. You do not need to have the
embroidery unit connected to your machine to edit your designs. The loaded design(s) are shown in the
embroidery fi eld (1).

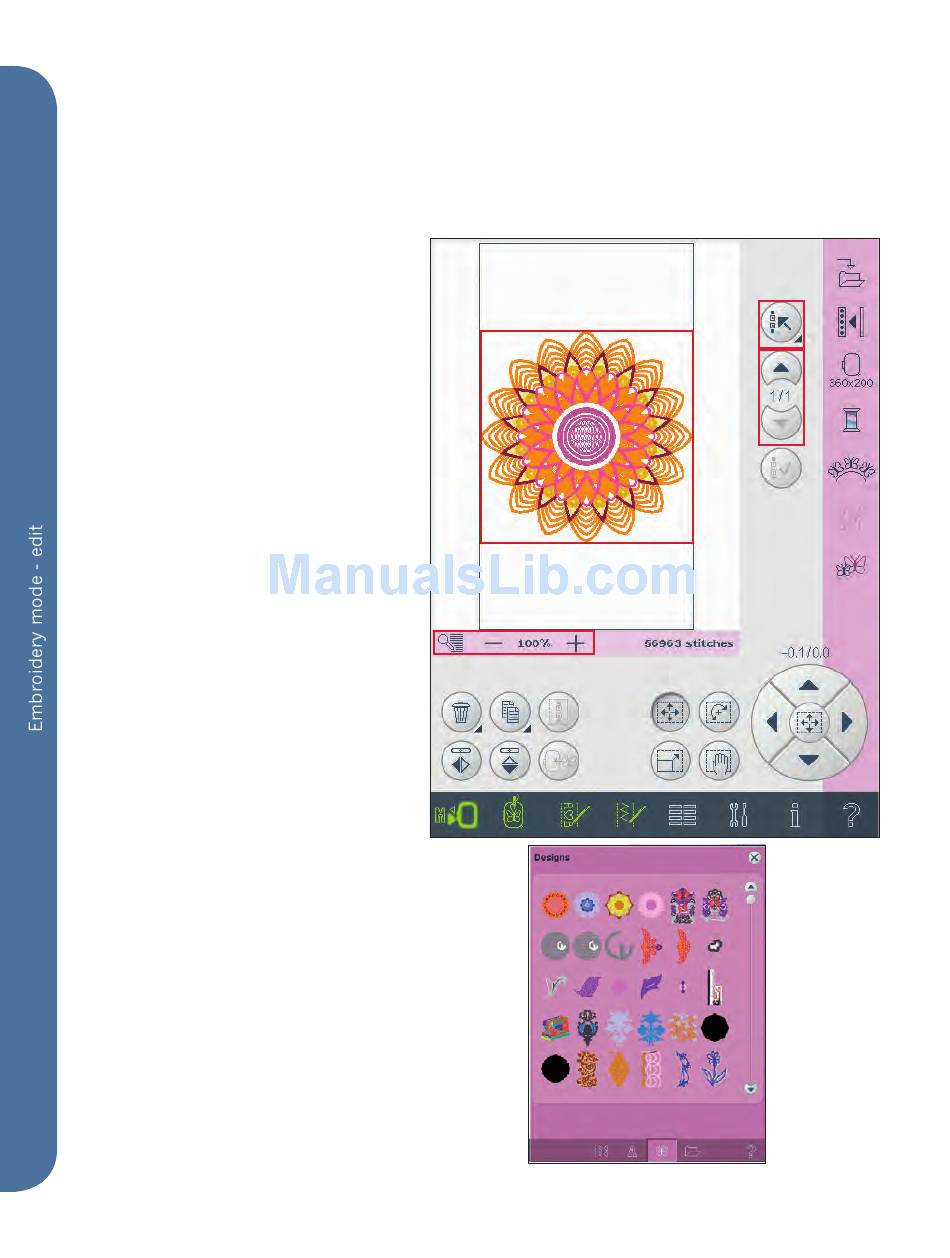

Embroidery edit - overview
1.
Embroidery fi eld
2.
Zoom
3.
Multi-select
4.
Arrows
5.
Select/deselect design
6.
Total number of stitches
7.
Delete
8.
Duplicate
9.
Group
10. Mirroring side to side
11. Mirroring end to end
12. Move design into hoop
13. Touch function - move
14. Touch function - rotate
15. Touch function - scale
16. Touch function - pan
17. Wheel
18. Wheel center icon
19. Save design
20. More options
21. Select hoop
22. Thread color edit
23. Shaping
24. Embroidery stitch editor
25. Resize
Load a design
To load a design, open the selection menu. Select
designs (A) from the selection bar. Your personal
designs will be shown in the menu. To load a
design, just touch it on the screen and it will be
loaded into embroidery edit.
8:2
1
2
7
8
9
10
11
12
5
6
13
14
15
16
A
19
3
20
21
4
22
23
24
25
18
17
