Sequencing
In sequencing, you are creating and adjusting a sequence of stitches. Combine various 9mm stitches, maxi
stitches and stitch fonts from the machine or from an external device. Stitches made in Stitch Creator can
also be inserted in a sequence.
You can create sequences up to approximately 500mm (20") long. You can see how long your actual
sequence is in the upper left corner (1).

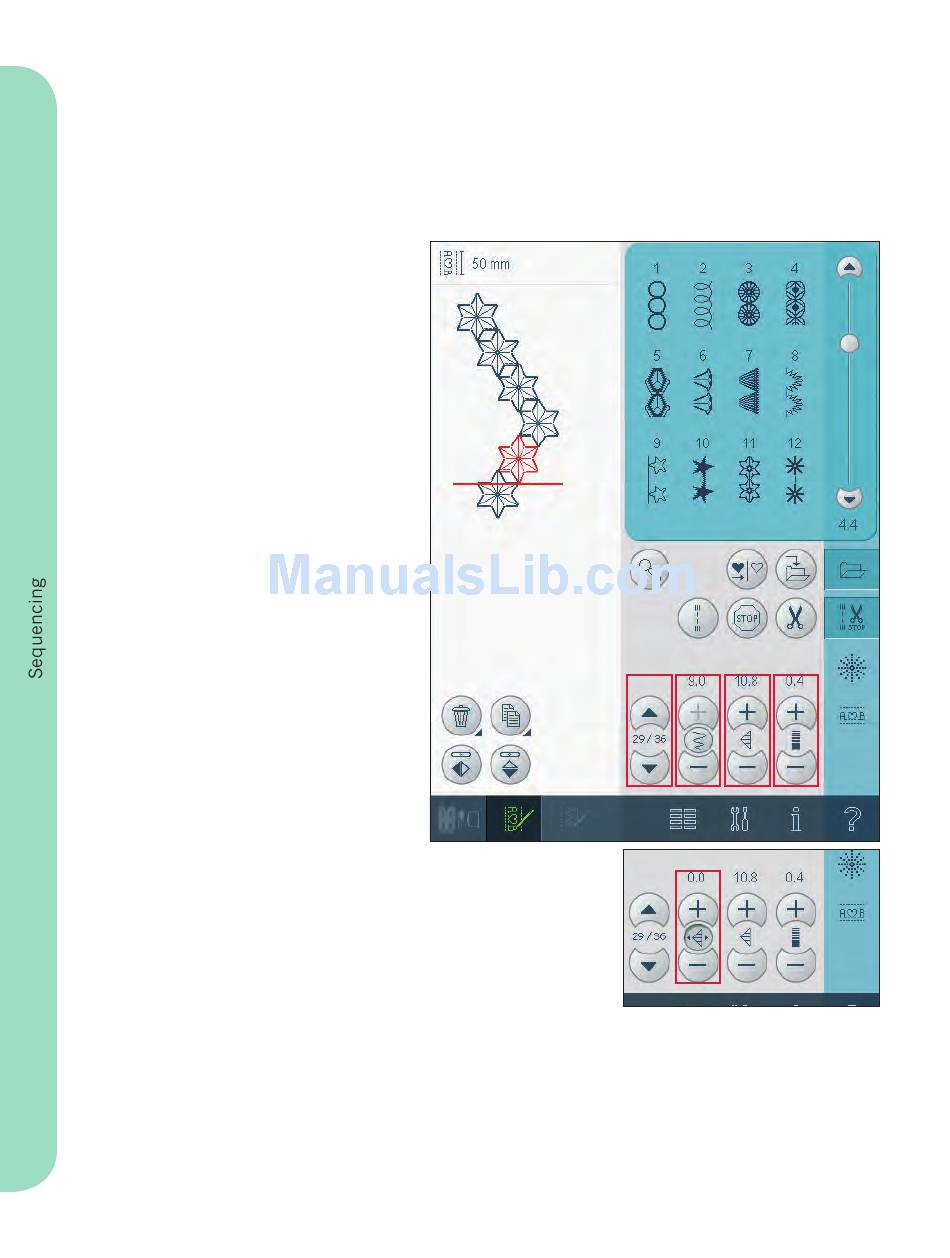

Sequencing - overview

1. Approximate length of sequence
2. Stitch selection area
3. Scroll bar (Scroll through stitch
categories)
4. Stitch fi eld
5. Delete
6. Duplicate
7. Mirroring side to side
8. Mirroring end to end
9. Zoom to all
10. Arrows
11. Stitch width
12. Width/position toggle
13. Stitch length
14. Stitch density
15. Save options
a) Save to personal menu
b) Save to personal fi les
16. Sequence commands
a) tie-off
b) stop
c) cut
17. Directional stitches
18. Horizontal preview
19. Stitch positioning
Note: All symbols and options will not be
shown at the same time.
Sequencing can be used in both sewing mode and in embroidery mode. To open, just touch the
sequencing symbol on the task bar. To close sequencing and sew your created combination, touch the
symbol on the task bar again.
Note: If sewing mode is active and your programmed stitch is ready to be sewn, you can also close the active function
by pressing the foot control, or by pressing the start/stop button.
Not all stitches are available to use in a sequence. If you try to select an unavailable stitch, a pop-up will
notify you.
5:2
1
4
5 6
7 8
2
9 15a 15b
16a 16b 16c
10 11 13 14
12
19
3
15
16
17
18
