Bobbin winding

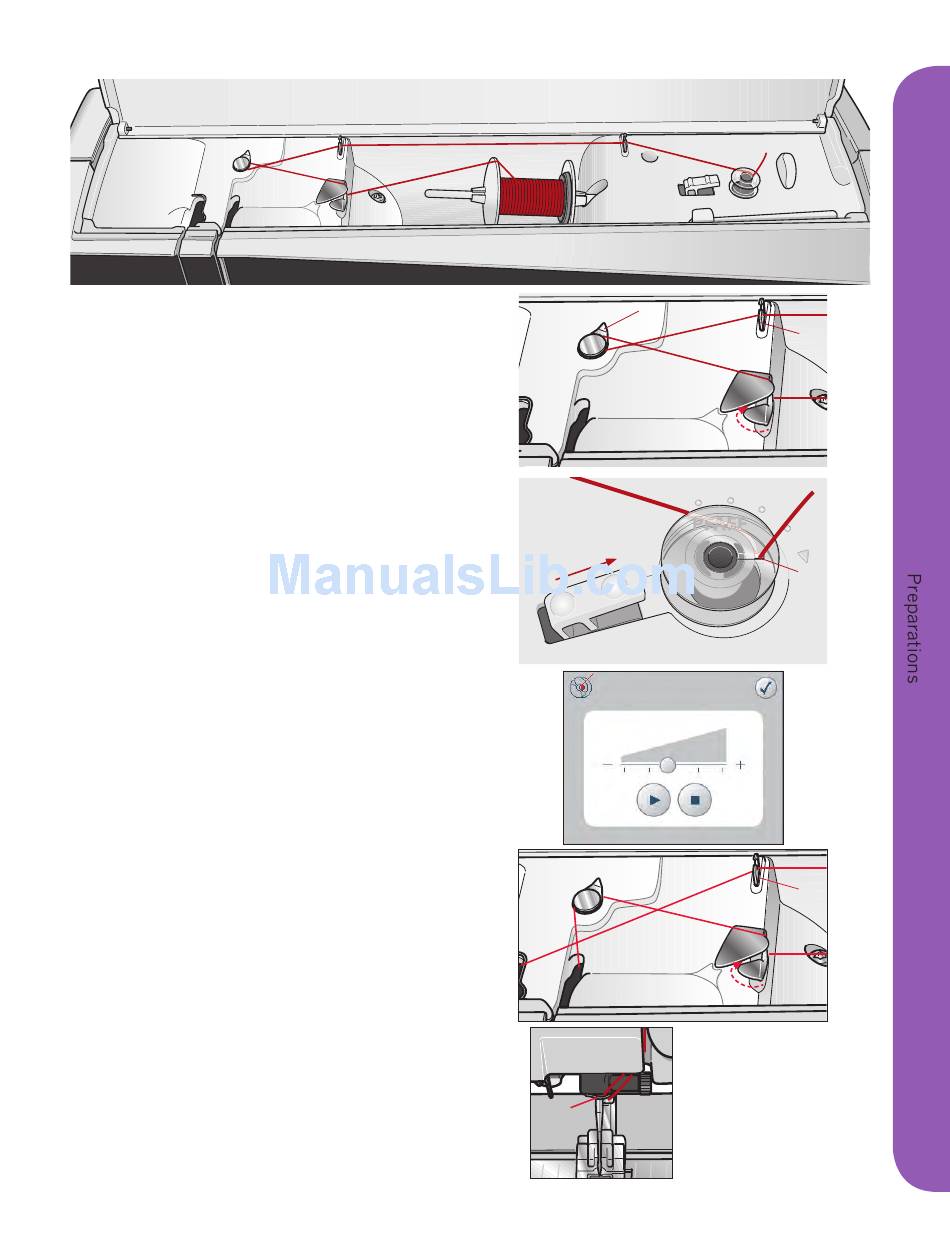

Winding from horizontal position
1. Place an empty bobbin on the bobbin spindle,
with the logo facing up. Use only the original
PFAFF® bobbins approved for this model.
2. Place the thread spool on the spool pin in
horizontal position. Slide a spool cap tightly
against the spool.
3. Place the thread into the thread guide (A) from
front to back. Pull the thread counter-clockwise
above the bobbin winder thread guide (B) and
then through the bobbin thread guides (C) at
the rear.
Note: Make sure the thread is pulled securely inside
the pre-tension device for correct thread tension.
4. Thread through the slot in the bobbin (D) from
the inside to the outside.
5. Push the bobbin winder lever towards the
bobbin to wind. A pop-up appears on the
screen. To adjust winding speed, use the slider
in the pop-up. Stop and start bobbin winding
with the icons in the pop-up. Hold the end of
the thread fi rmly when starting to wind.
When the bobbin is full, the bobbin winder
lever will switch back and the winding will
stop automatically. The pop-up closes. Remove
the bobbin and cut the thread using the bobbin
thread cutter. Cut the free thread end close to
the bobbin.
Winding while threaded
Make sure that the presser foot and the needle
are in the up position. To prevent the needle from
bending, pull the thread out of the needle.
Bring the thread up from the needle thread guide
(D), upward through the left-hand threading slot
and through the bobbin thread guides (E). Then
follow step 4 and 5 above.
B
A
A
D
C
D
E
2:7
