Resize (25)

Resize can reduce an embroidery design up to fi ve
times smaller than the original design or increase
it up to eight times larger than the original design.
The machine recalculates the number of stitches
in the design so that the original stitch density
remains.
Note: To reduce or increase the size less than 20%, use
scale touch function.

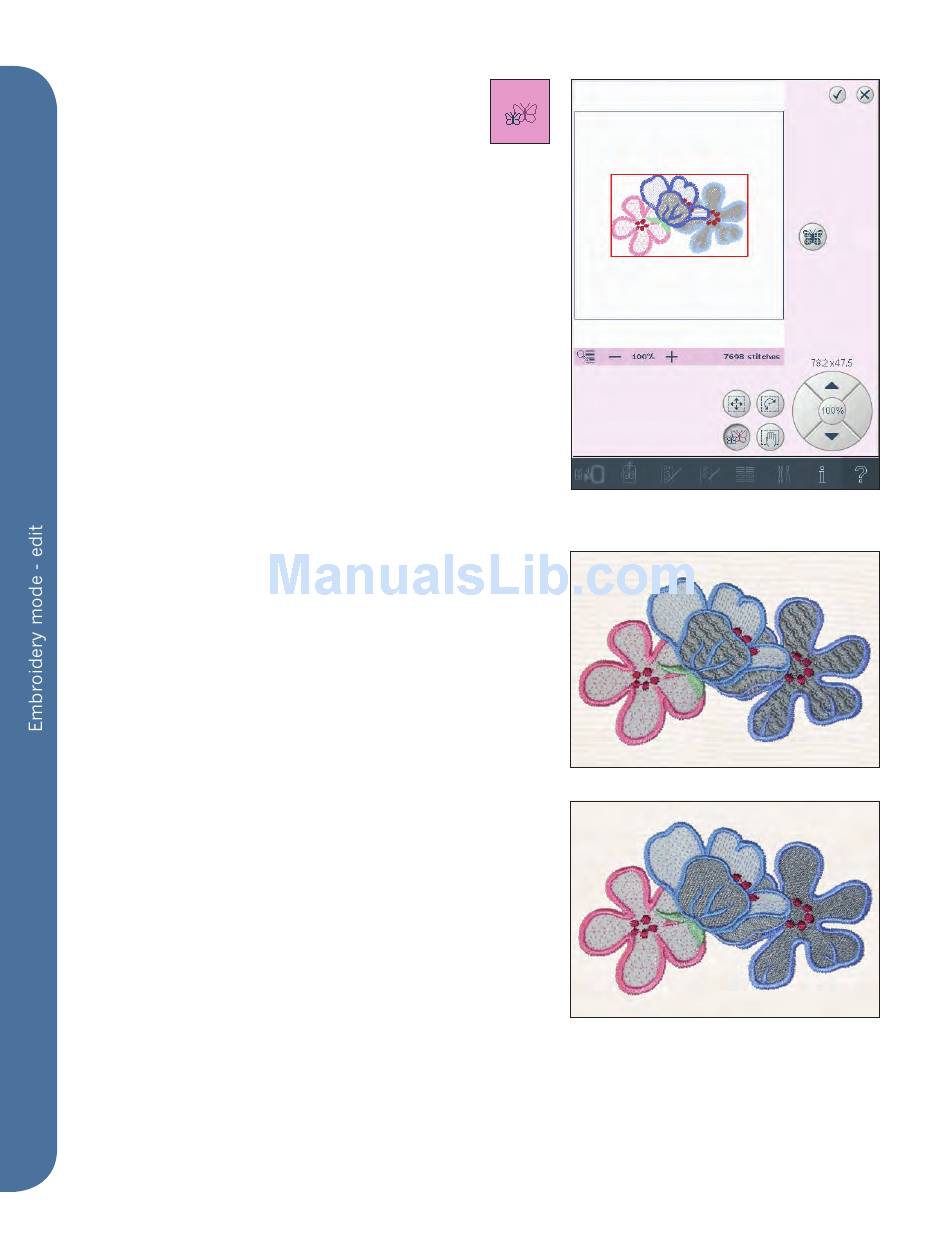

Resize adjustments
Select the design you want to resize. Open the
resize window (25).
Adjust the design size by touching and dragging
on the screen or by using the wheel. The size of the
design is shown in millimeters above the wheel. To
return to the original size, touch the wheel center
icon (18).
Adjust the placement of the design in the hoop,
using move (13) and rotate (14).
Retain fi ll type (A)
All fi ll areas in an embroidery design are made in a
specifi c type to get the best effect. When enlarging
or reducing a design the stitches in the fi ll area will
be affected.
There are two ways to handle the fi ll type and style
in the design to be resized. The default setting will
not retain fi ll type. This is the fastest way to resize
a design, however the fi ll areas in the design may
look different than the original.
When retain fi ll type is selected, it will take longer
to resize but the process will retain the fi ll types
and styles within the design areas as is best for the
design. If greatly enlarging a design, retain fi ll type
is recommended for best results.
To start resizing
When you are satisfi ed with the design size and
placement, touch OK to close the window and
start resizing. An hourglass on the screen during
resizing shows that it is working. When fi nished
the resize window will close.
Touch cancel to return to embroidery edit. The
resizing process will stop.
Note: Stitches and sequences cannot be resized.
8:18
25
Retain fi ll type
Do not retain fi ll type
A
13 14
18
