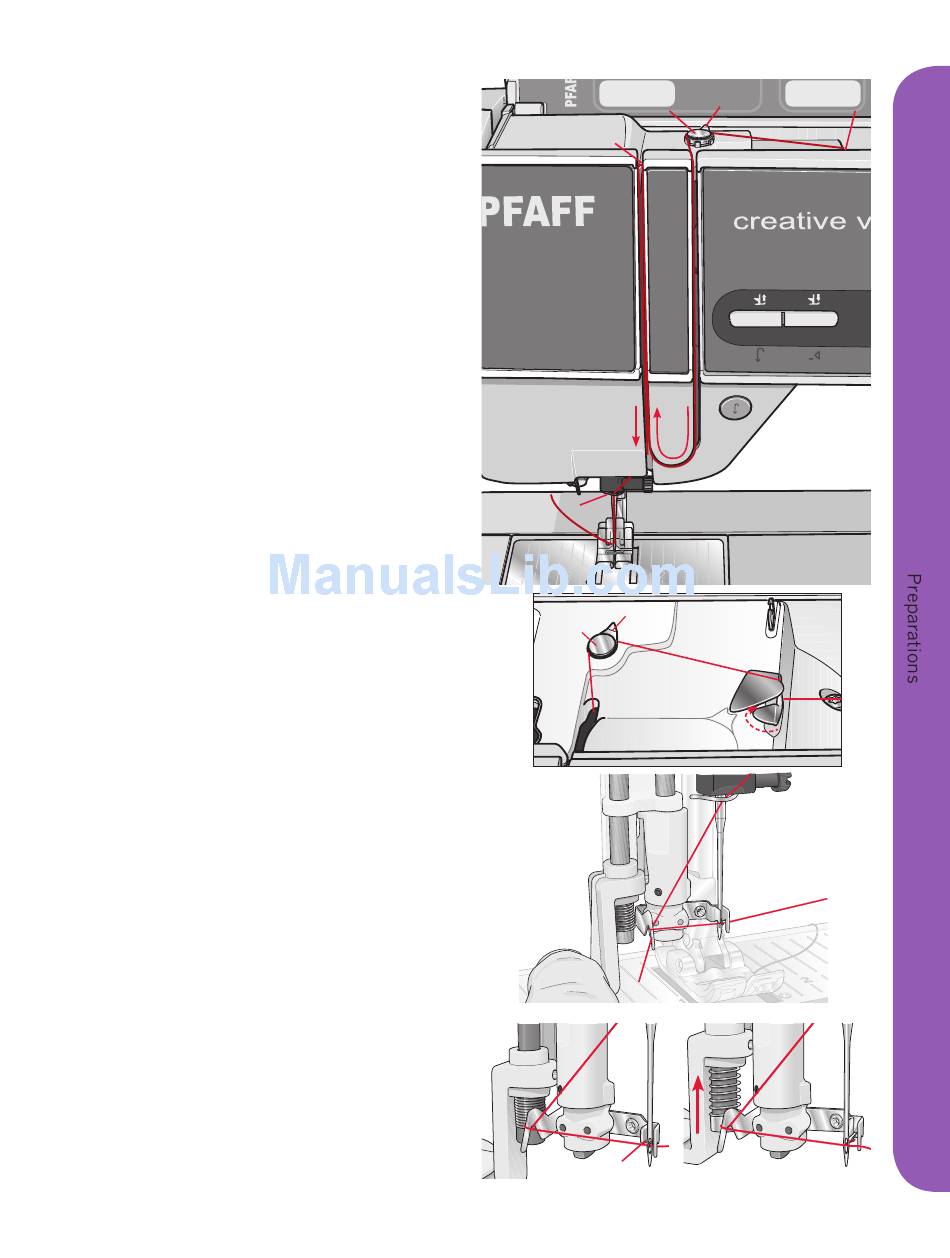

Threading the machine

Make sure that the presser foot is raised and the
needle is in the up position.
1. Place the thread on the spool pin and fi t a spool
cap of the right size.
2. Pull the thread into the thread guide by pulling
it from the front to the back (A). Make sure the
thread clicks into place. Then pull the thread
underneath the bobbin thread guide (B) on the
pre-tension disc (C).
3. Thread down through the right-hand
threading slot and then upwards through the
left-hand threading slot.
4. Bring the thread from the right into the take-up
lever (D) and down in the left-hand threading
slot to the needle thread guide (E).
5. Thread the needle.

Needle threader

The needle threader allows you to thread the
needle automatically. The needle must be in the up
position to use the built-in needle threader. We also
recommend lowering the presser foot.
1. Use the handle to pull the needle threader all
the way down. The threader hook (G) swivels
through the needle eye.
2. Place the thread from the back over the hook
(F) and under the thread hook (G).
3. Let the needle threader gently swing back. The
hook pulls the thread through the needle eye
and forms a loop behind the needle. Pull the
thread loop out behind the needle.
Note: The needle threader is designed to be used for size
70-120 needles. You cannot use the needle threader for
size 60 needles or smaller, the wing needle, twin needle
or triple needle. There are also some optional accessories
that require manual threading of the needle.
When threading the needle manually make sure that the
needle is threaded from front to back. The bobbin cover
can be used as a magnifying glass.
C B
D
E
B
C
A
F
G
A
2:5
