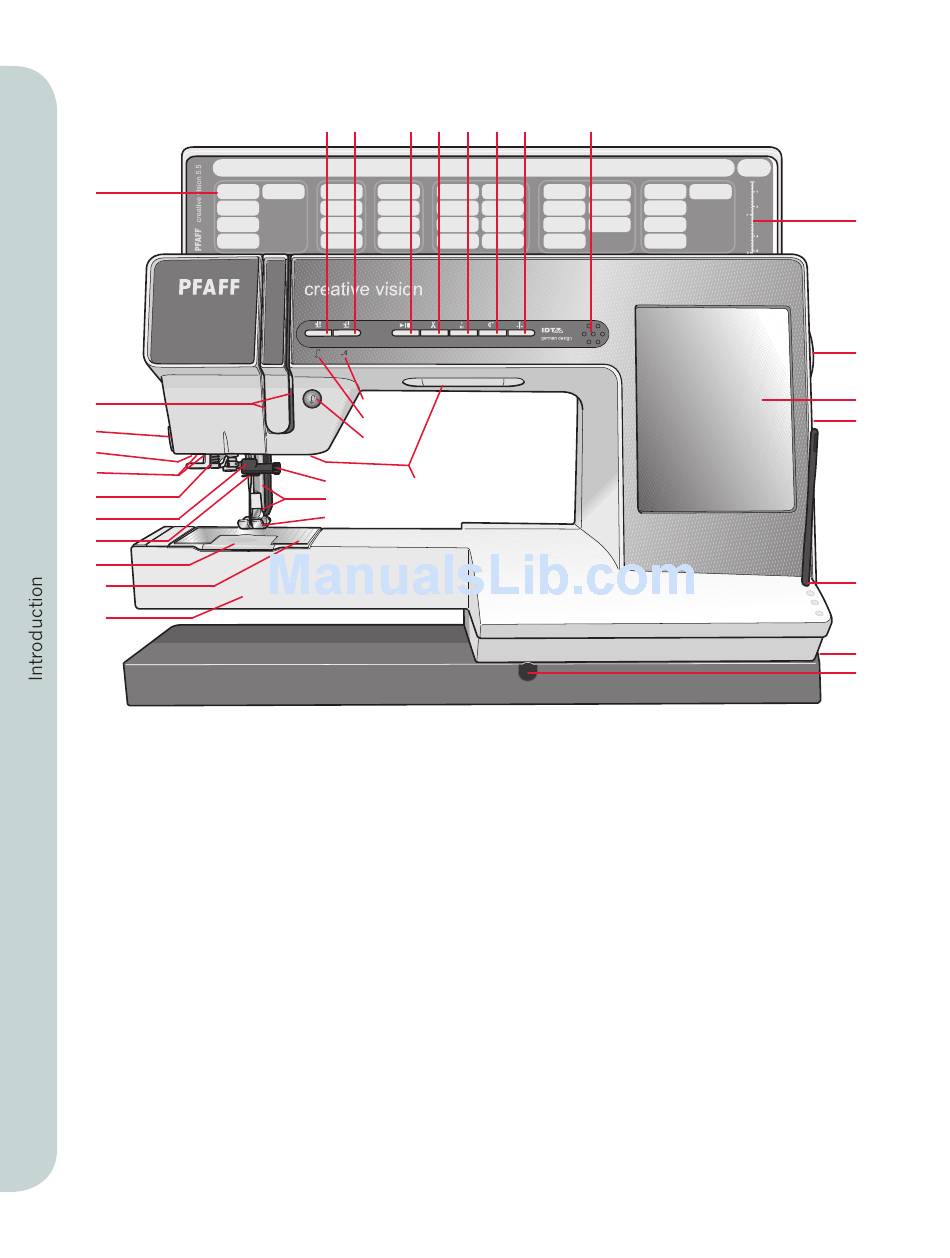

Machine overview

1
2
3
4
5
6
7
8
9
10
11

Front side

1. Lid with stitch categories
2. Threading slots
3. Thread cutter
4. Sensormatic buttonhole foot socket
5. Custom LED-lights
6. Built-in needle threader
7. Needle bar
8. Needle thread guide
9. Bobbin cover
10. Stitch plate
11. Free arm
12. Presser foot
13. Presser foot bar and presser foot holder
14. Needle screw
15. Reverse
16. Reverse indicator
17. Action indicator
1:8
18 19 20 21 22 23
17
16
15
14
5
13
12
18. Presser foot up and extra lift toggle
19. Presser foot down and pivot toggle
20. Start/stop
21. Thread snips
22. Immediate tie-off
23. Stitch restart
24. Needle up/down
25. Speaker
26. Button ruler
27. Handwheel
28. PFAFF® HD screen
29. Built-in USB ports
30. Stylus holder
31. Main switch, connectors for power cord and
32. Connection for knee-lift
24 25
foot control
26
27
28
29
30
31
32
