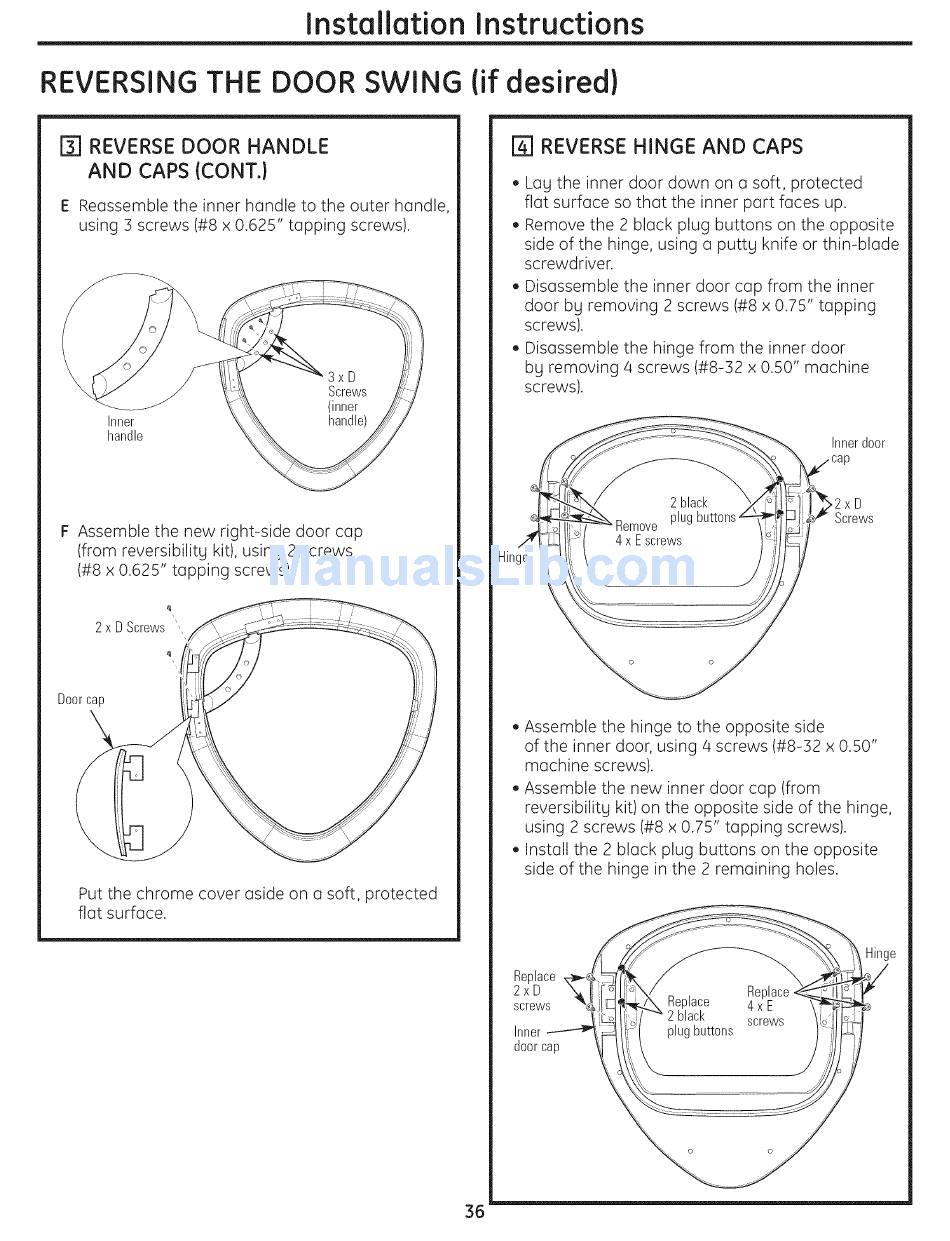

Installation Instructions
REVERSING THE DOOR SWING (if desired}
[_] REVERSE DOOR HANDLE
AND CAPS {CONT.}
E Reassemble the inner handle to the outer handle,
using 3 screws (#8 x 0.625" tapping screws).
Inner
handle
F Assemble the new right-side door cap
(from reversibility kit), using 2 screws
(#8 x 0.625" tapping screws).
Doorcap
Put the chrome cover aside on a soft, protected
flat surface.
F_ REVERSE HINGE AND CAPS
• Lag the inner door down on a soft, protected
flat surface so that the inner part faces up.
• Remove the 2 black plug buttons on the opposite
side of the hinge, using a putts knife or thin-blade
screwdriver.
• Disassemble the inner door cap from the inner
door bg removing 2 screws (#8 x 0.75" tapping
screws).
Disassemble the hinge from the inner door
bg removing 4 screws (#8-32 x 0.50" machine
screws).
Innerdoor
>2xD
Screws
• Assemble the hinge to the opposite side
of the inner door, using 4 screws (#8-32 x 0.50"
machine screws).
Assemble the new inner door cap (from
reversibilitg kit) on the opposite side of the hinge,
using 2 screws (#8 x 0.75" tapping screws).
Install the 2 black plug buttons on the opposite
side of the hinge in the 2 remaining holes.
Replace
2xD
screws
Inner
doorcap
36
