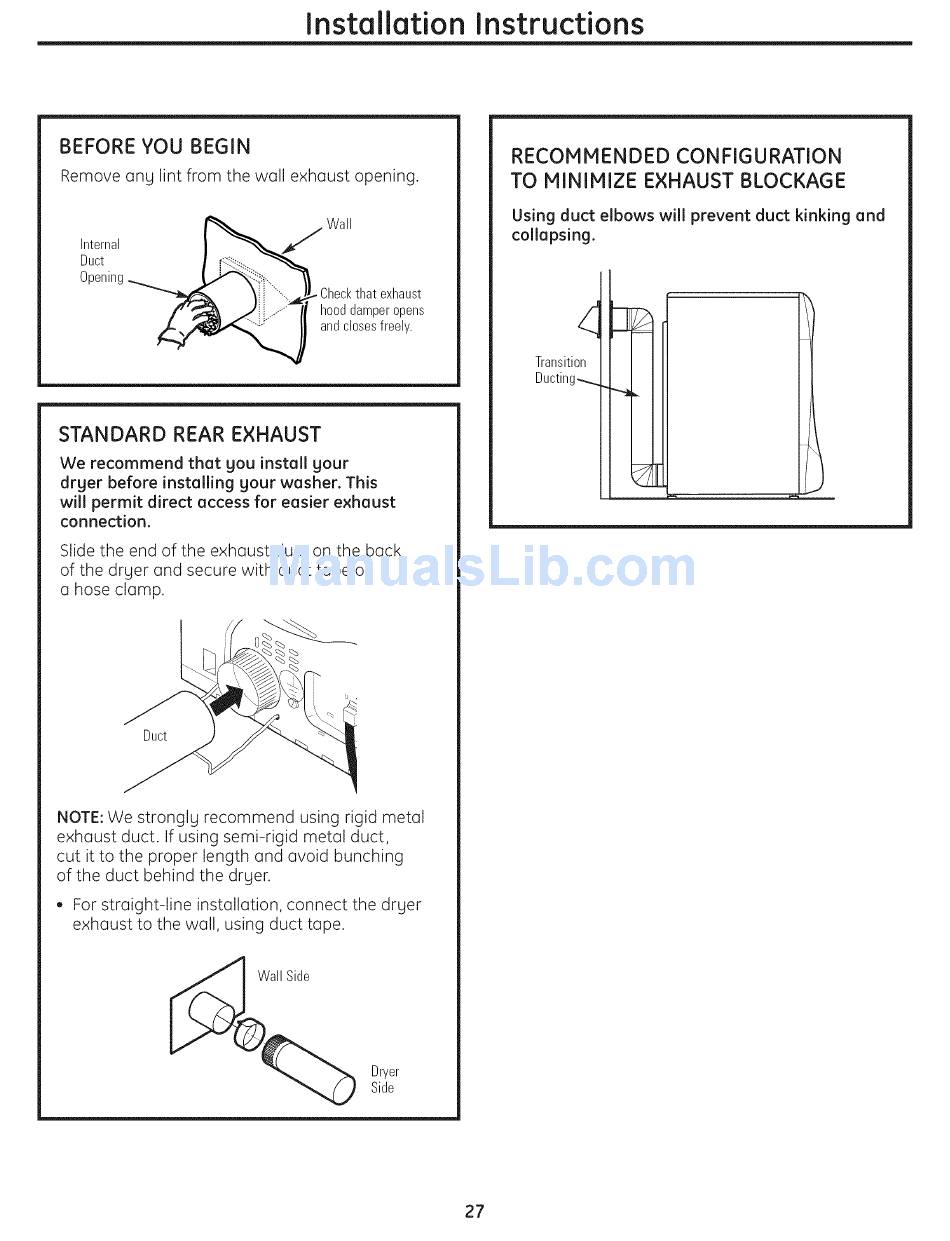

Standard Rear Exhaust - GE Profile DPVH890 Owner's Manual & Installation Instructions

Installation Instructions
BEFORE YOU BEGIN
Remove ang lint from the wall exhaust opening.
Wall
Internal I _J
Duct I _ ........"_----------------_
Opening_:_i,,.
¥i - ..... Check that exhaust
f',_ .i,/:.- ........... " hood damper opens
andclosesfreely.
STANDARD REAR EXHAUST
We recommend that you install your
dryer before installing your washer. This
will permit direct access for easier exhaust
connection.
Slide the end of the exhaust duct on the back
of the drger and secure with duct tape or
a hose clamp.
Duct
NOTE: We stronglg recommend using rigid metal
exhaust duct. If using semi-rigid metal duct,
cut it to the proper length and avoid bunching
of the duct behind the drger.
• For straight-line installation, connect the drger
exhaust to the wall, using duct tape.
Dryer
Side
RECOMMENDED CONFIGURATION
TO MINIMIZE EXHAUST BLOCKAGE
Using duct elbows will prevent duct kinking and
collapsing.
Transition
Ducting_
27
