Installing the Switch in a Rack

4
a. Clean the four depressions on each bottom corner of the switch to
ensure they are free of dust.
b. Place a rubber foot in each depression with the adhesive side against
the chassis and press into place.
3. Place the switch with the bottom side down on a flat, sturdy surface.
4. Provide power to the switch by connecting the power cord to the switch
power supply and to a power outlet. Ensure the power cord is routed so
that it is not exposed to stress. Power is supplied to the switch as soon as
the cord is connected. The switch runs POST (power on self-test) by
default each time it is turned on.
Do not connect the switch to the network until the IP address is
Note
correctly set. For instructions on how to set the IP address, see
"Configuring and Connecting the Switch"
This section provides instructions for installing the FC Entry Switch 8B or
FC Switch 8B in an HP or Compaq/Rittal rack.

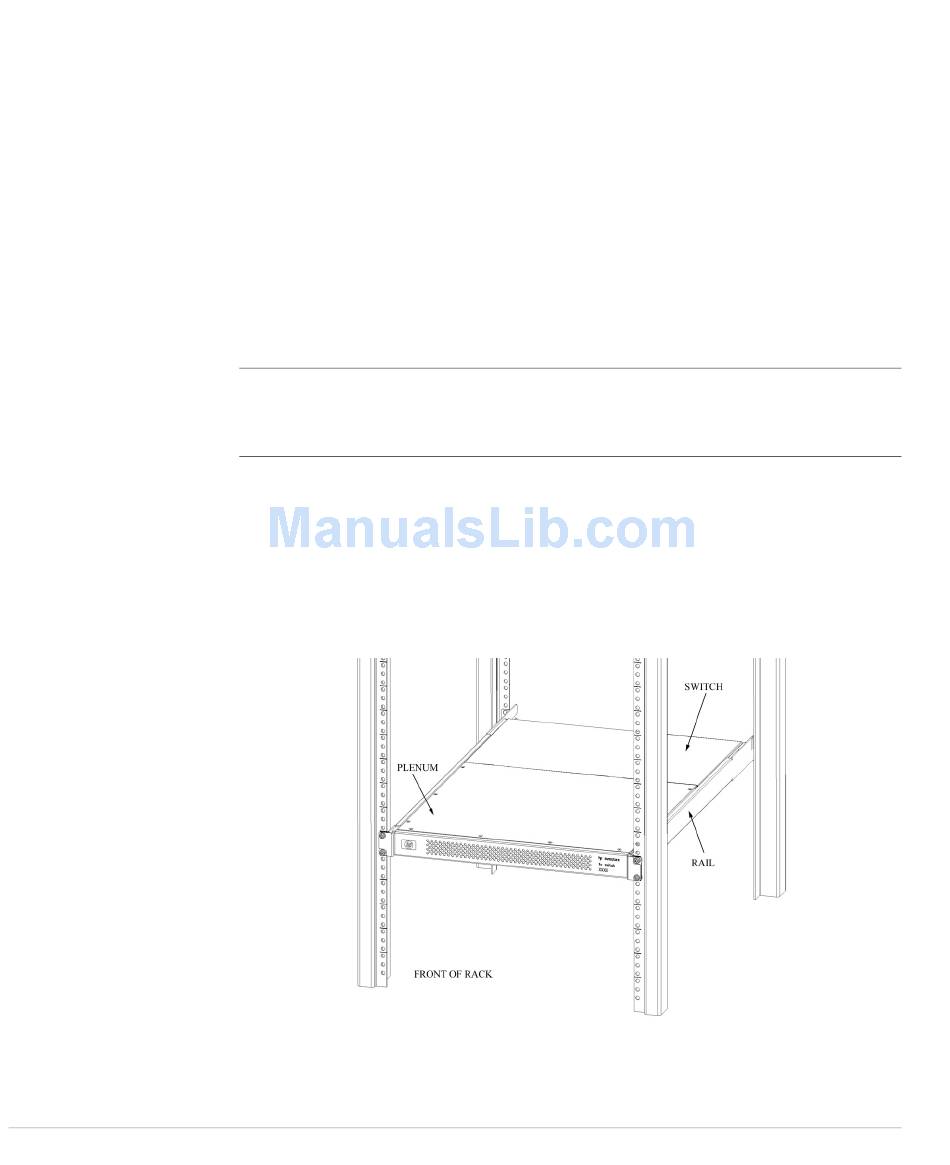

Figure 1. FC Entry Switch 8B and FC Switch 8B Rack-Mounted Switch
on page 23.
Getting Started Guide
