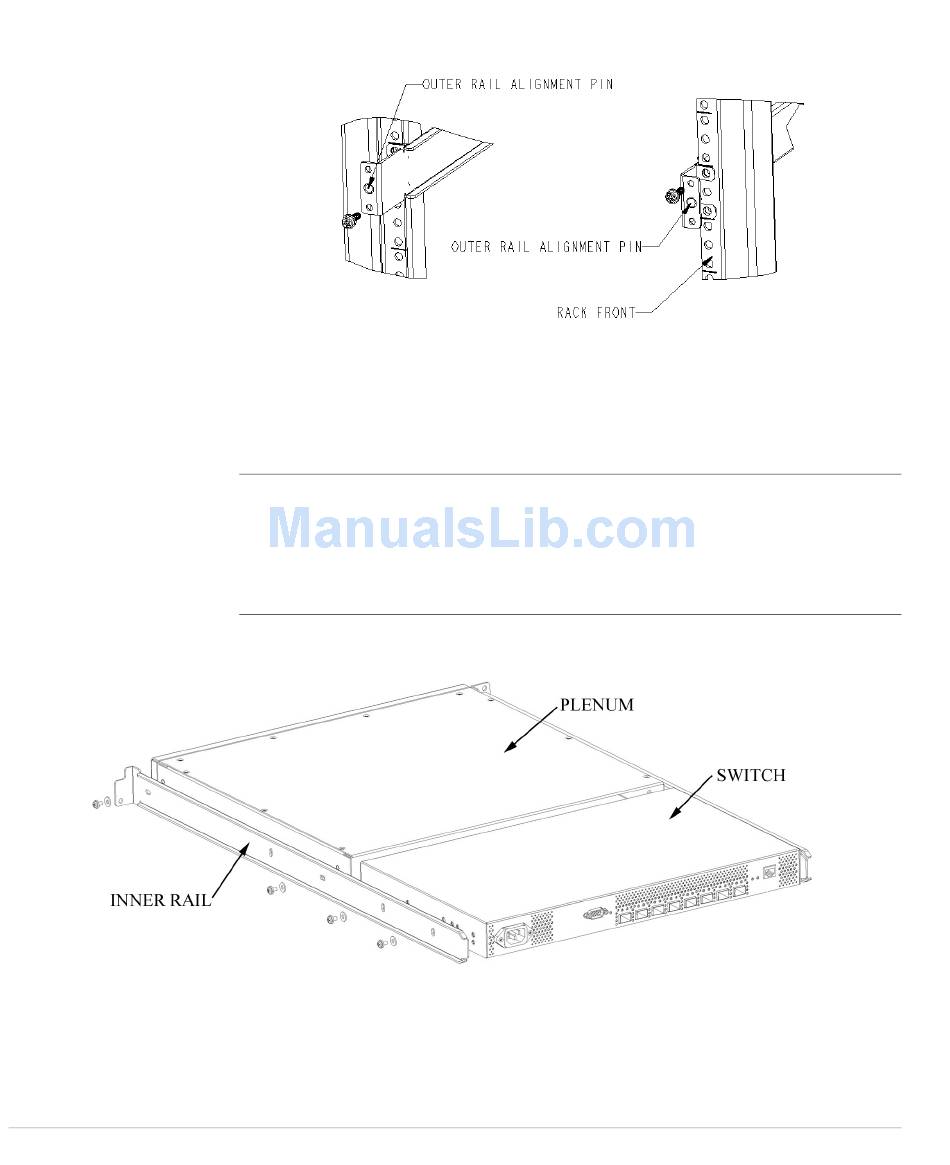

Figure 5. Assembling the Outer Rails
6. Assemble each of the two inner rails (one on each side of the switch and
plenum) using eight #8-32 x 5/16 Phillips pan-head screws (with attached
star lock washers) and eight #8 flat washers as shown in
Do not use any other screws other than the eight that are
CAUTION
provided. Use of any longer lengths can cause damage to internal
components of the switch. Be sure to install the flat washers along with the
pan-head screws. Before tightening screws, make sure that the rails are
centered to the overall height of the switch.
Figure 6. Assembling the Inner Rails
7. Insert the switch with the attached inner rails into the outer rails as shown
in Figure 7.
Figure 6.
