SFP Media Side

20
– One LED in the center of the fan side to indicate the overall switch
status.
• One universal input power supply.
• Five fans:
– Two dedicated to cooling the power supply, three dedicated to
cooling the motherboard.
– Air is pulled in through the rear intake and pushed out through the
vents in the SFP media side.
• Three digital thermometers, capable of sensing a temperature range
from -55°C to +125°C, in 0.5°C increments.
• A real-time clock (RTC) with a 10-year battery and 56 bytes of
NVRAM.

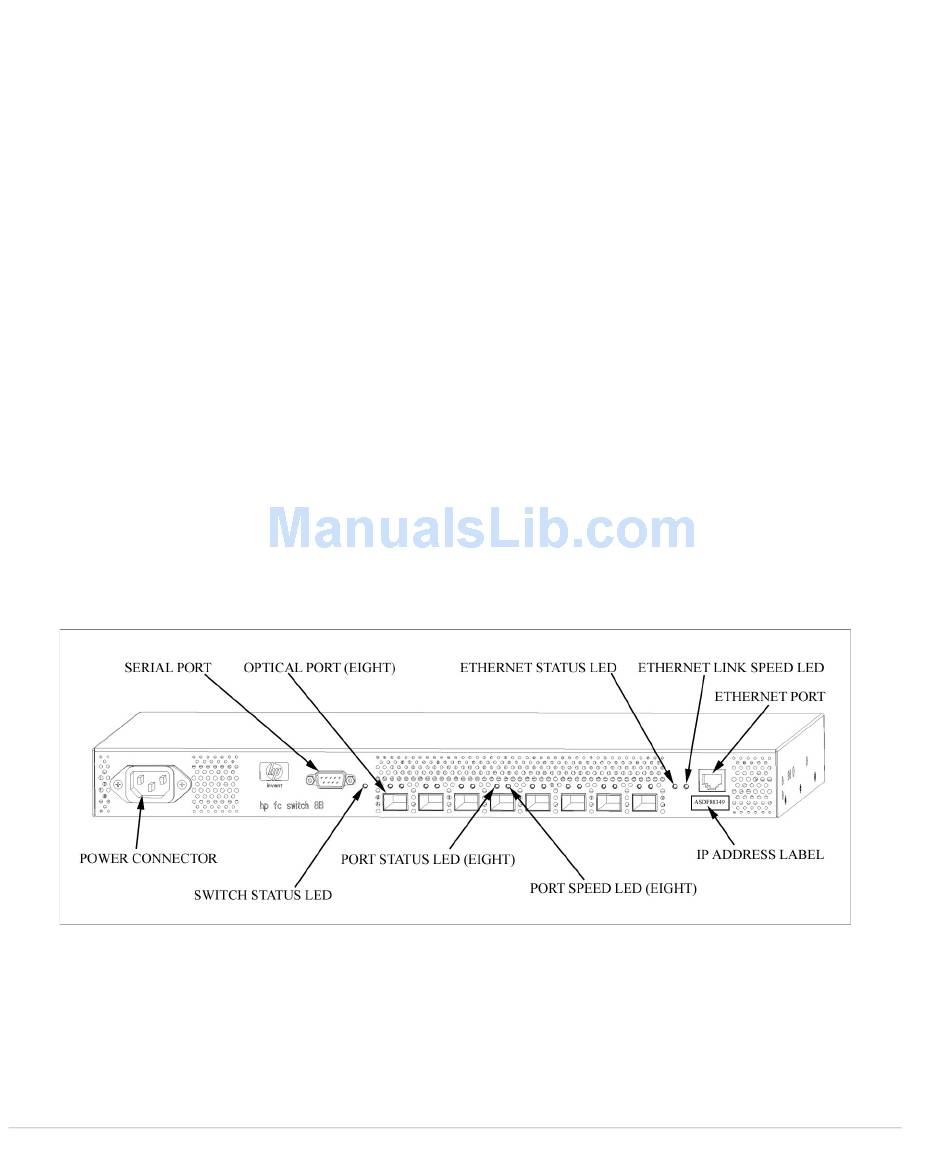

Figure 16 shows the SFP media side of the switch, which contains the
power connector, IP label, serial port, switch status LED, fiber optic ports
and their corresponding LEDs, and the Ethernet port and its corresponding
LEDs.
Figure 16. The SFP Media Side of the FC Entry Switch 8B and FC Switch 8B
The switch ports are color-coded into two groups of four, to indicate which
ports can be used in the same ISL Trunking group.
