Installing the Switch

The following items are required to install the switch in a rack:

• FC Entry Switch 8B or FC Switch 8B

• Power cable

• #2 Phillips and T25 Torx screwdrivers

• Plenum

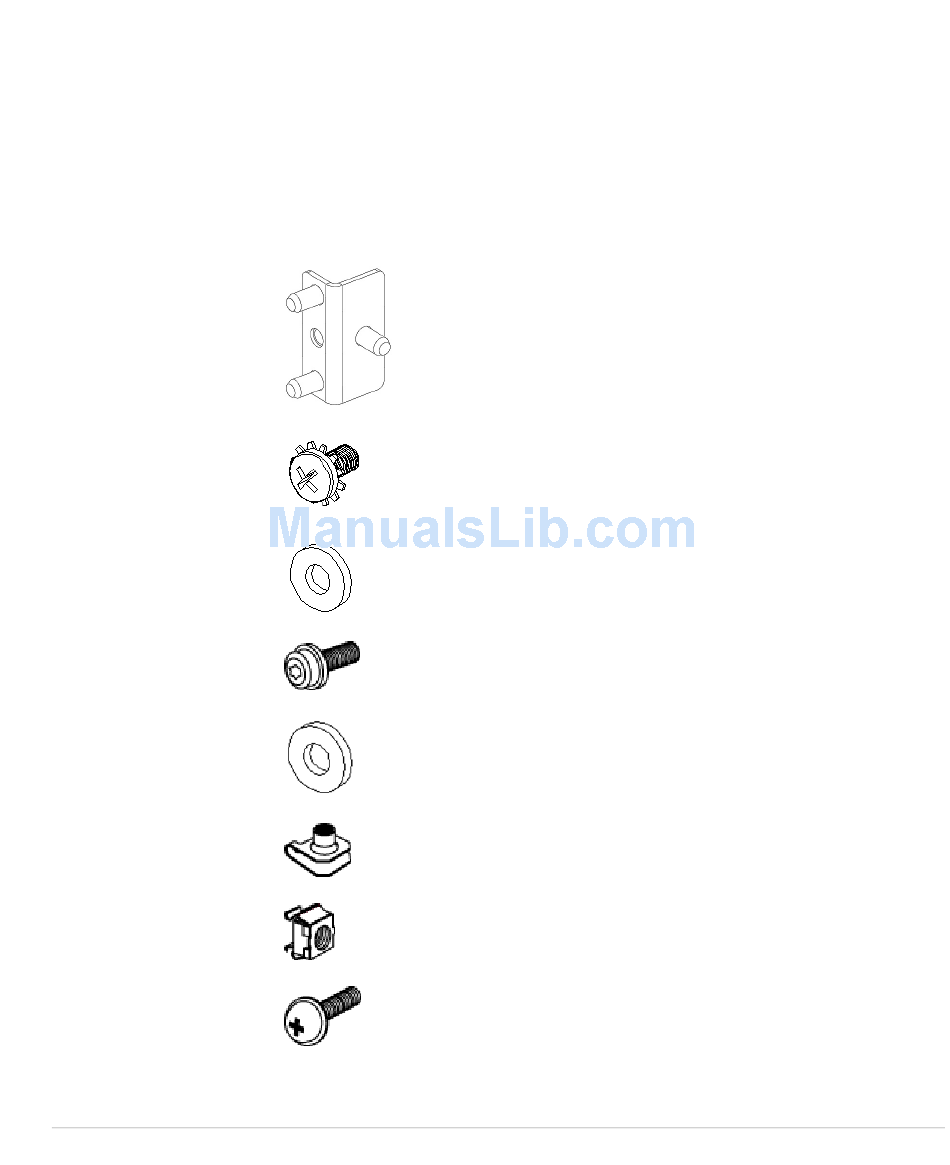

• Rails and rail mounting hardware:

(2) Rear mounting bracket

(8) #8-32 x 5/16 Phillips pan-head screw with captive star

lock washer

(8) #8 Flat washer

(6) M5 Torx head screw with captive lock washer

(2) Rubber washer

(4) M5 U-type Tinnerman clip (HP rack only)

(4) #10-32 square Tinnerman nut (Compaq/Rittal rack only)

(4) #10-32 x 5/8 Phillips pan-head screw with attached lock

washer (Compaq/Rittal rack only)
