Intel Light-Guided Diagnostics
The server board contains diagnostic LEDs to help you identify failed and failing
components and to help you identify the server from among several servers. Except for the
ID LED, the status LED, and the +5-volt standby LED, the LEDs turn on (amber) only if a
failure occurs.
®

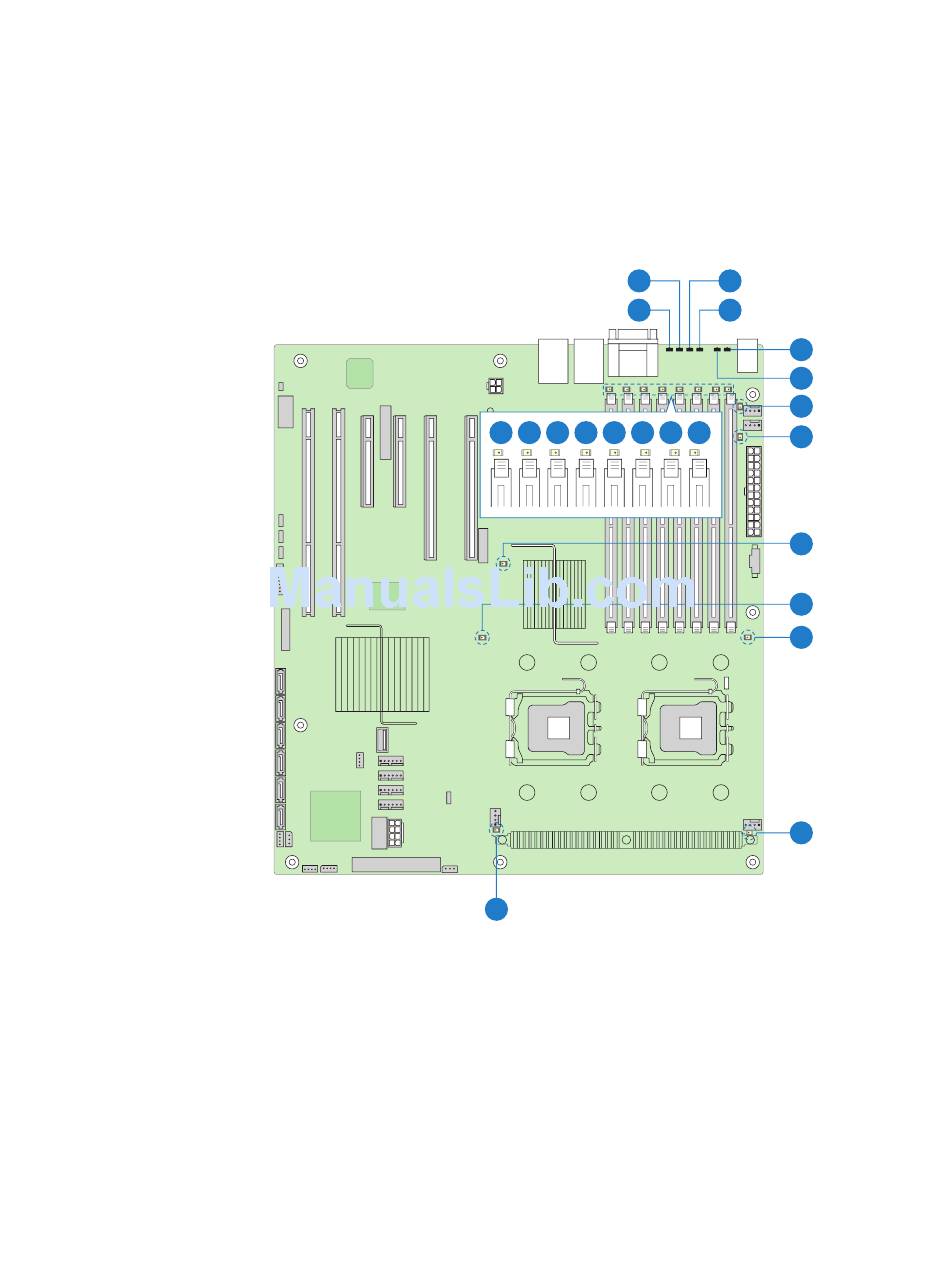

Intel Server Board S5000PSL
A
B
I J K L M N O P
U
C
D
E
F
G
H
Q
R
S
T
AF000109
