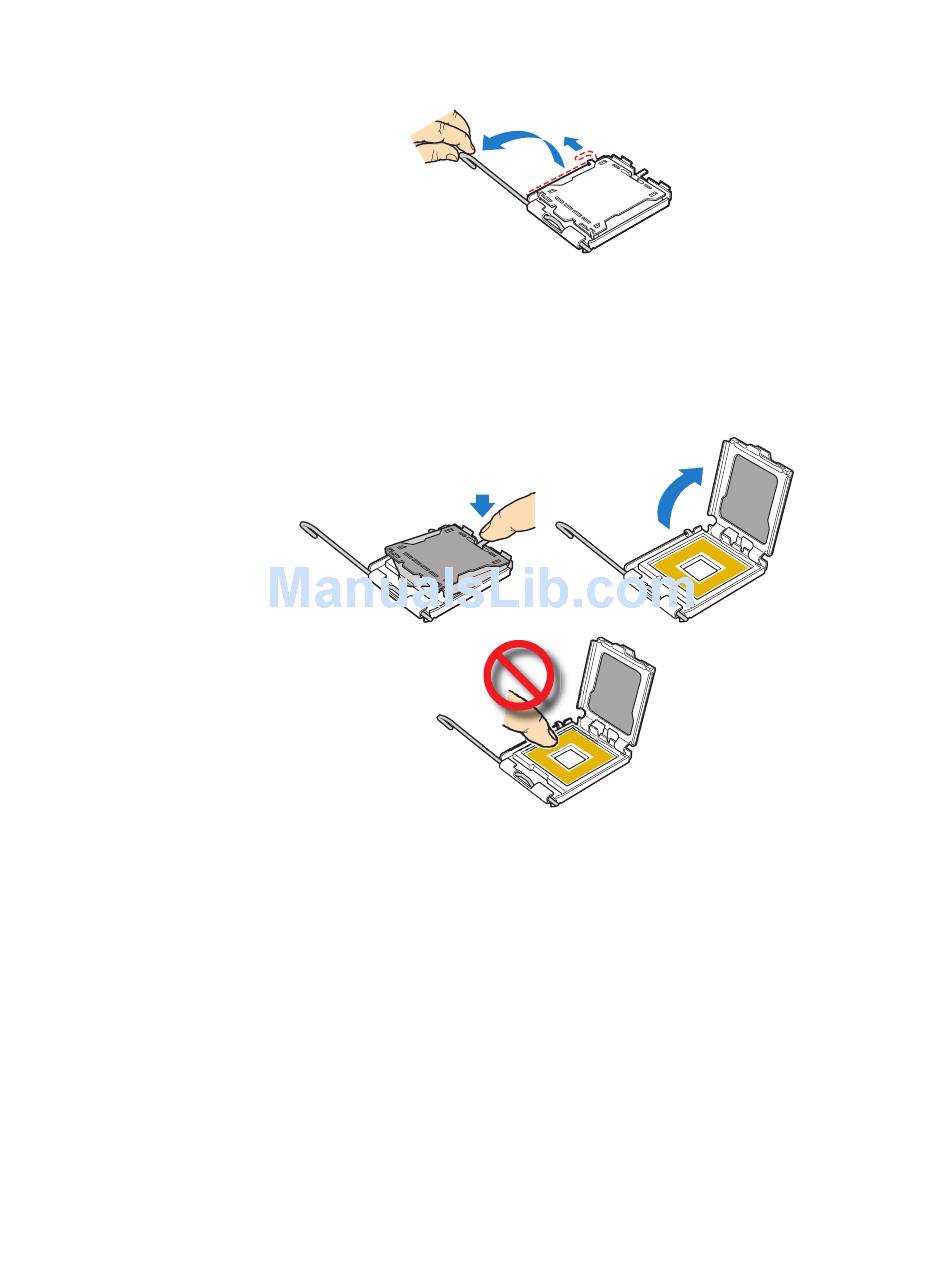

Figure 12. Opening Processor Socket Lever

8. Push down on the rear tab of the load plate to swing the front of the load plate up
slightly. Fully open the load plate. See
Figure
13.
AF000096

Figure 13. Opening Load Plate

®
Intel
Server Board S5000PSL
35
