4. Operation
The last line of the display is the input area. When the Input command is executed in the
application program, the input area is displayed at the last line of the screen.

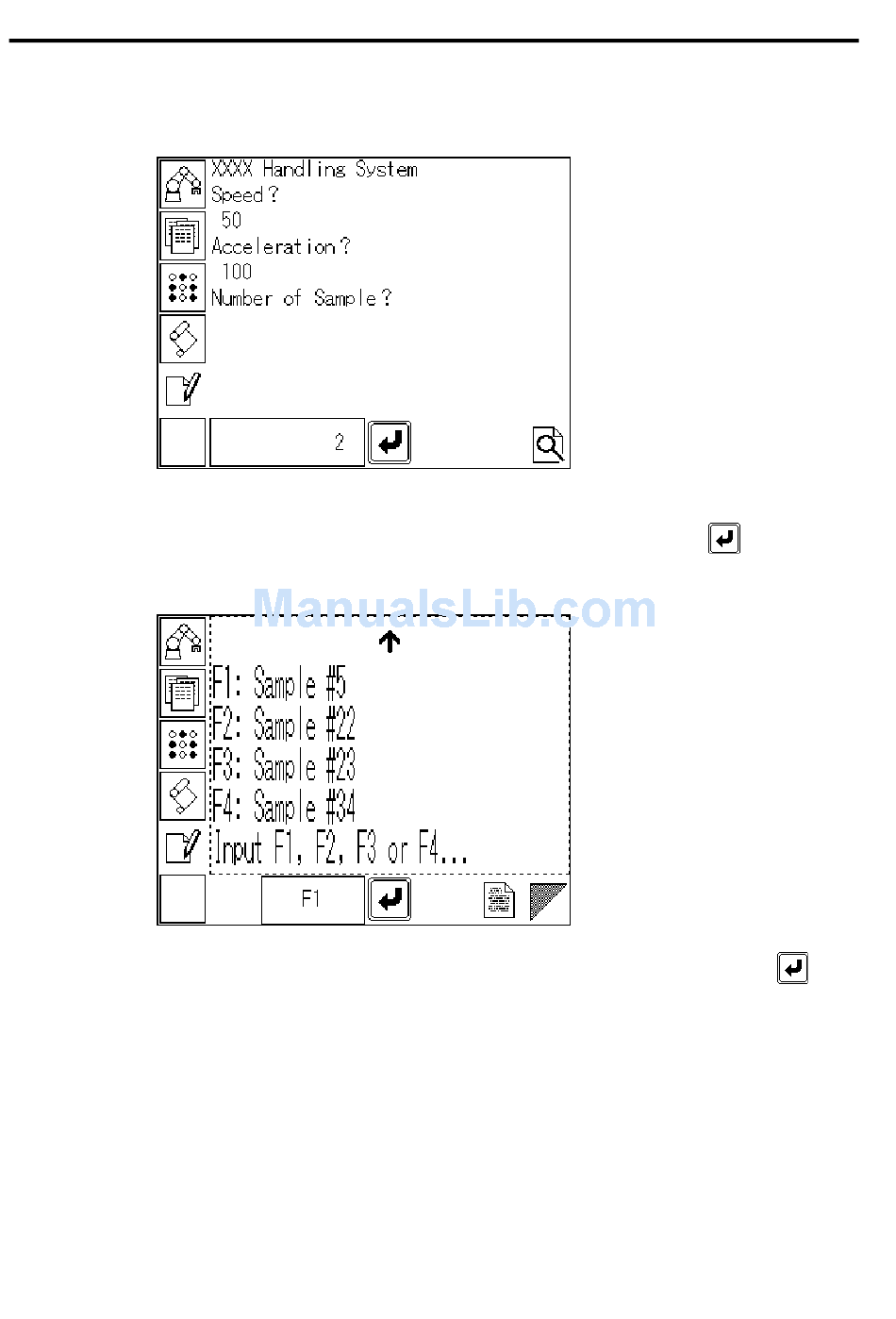

Application screen (numerical value input)
In the case of numerical value input, touch the input area. This displays the numerical value
input dialog box. Use this dialog box to input numerical values, and press the
fix the input values.
Application screen (text string input)
In the case of text string input, press F1 to F6 function switches on the right side of the
screen. In the same way as numerical value input, fix the input values by pressing the
button.
When you touch the input area, the dialog for F1 to F6 input is displayed. You can use this
dialog instead of the function switches to input text strings.
If the Print or Input commands are executed from the application program while a different
screen is displayed, the Application screen button on the left side blinks to notify the
operator. In the case of the Print command, the button stops blinking when the Application
screen is displayed.
In the case of the Input command, the button continues to blink until the input is completed.
24
button to
OP1 Rev.1a
