4. Operation
Buttons for moving to each of these screens are displayed on the left side of the screen. You
can move to the desired screen at any time by pressing these buttons.

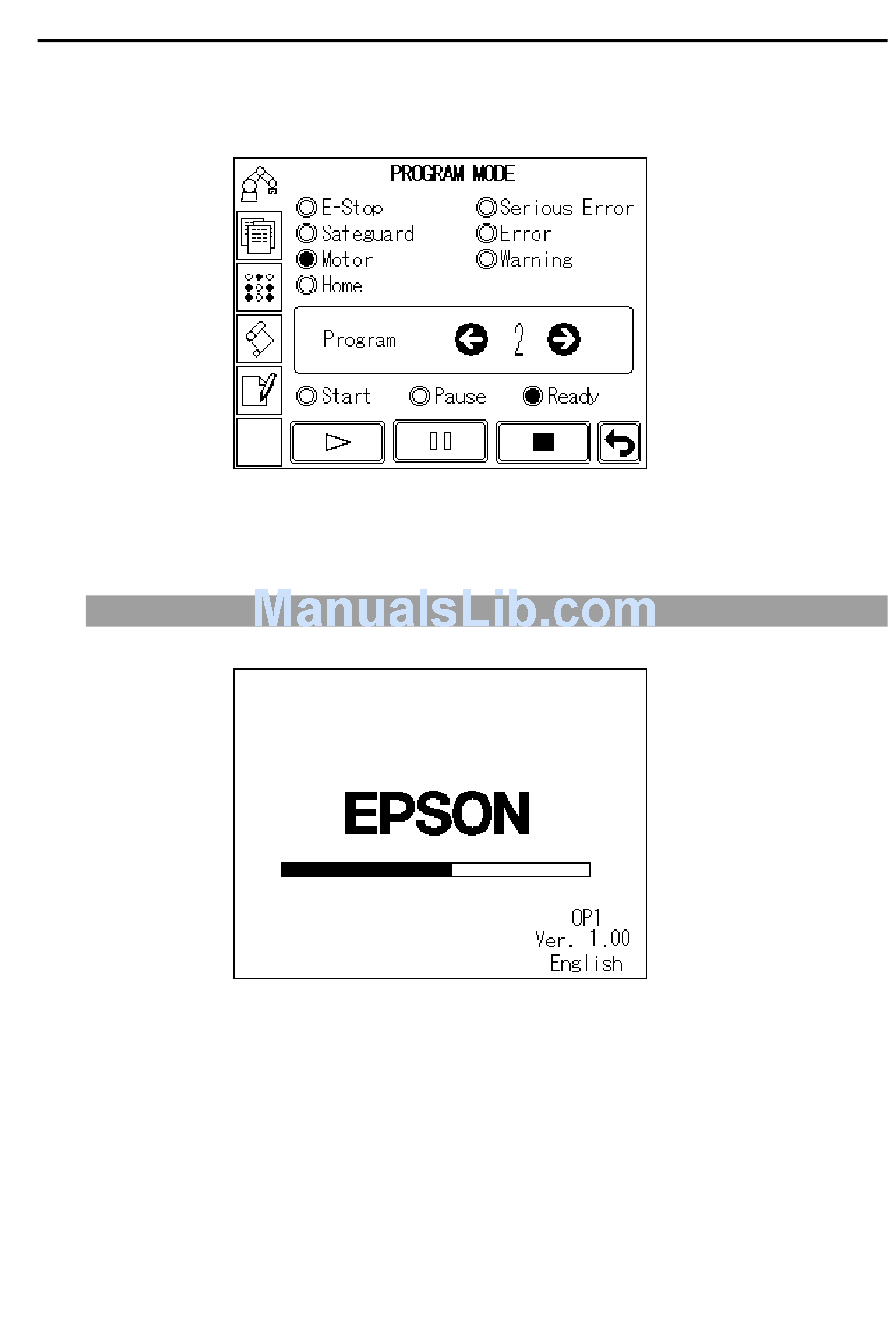

Operator Panel screen image
When the operator is prompted to confirm or perform an operation, the button for the
respective screen on the left of the Operator Panel blinks. When a button blinks, touch the
button to display the target screen, and perform the required operation (e.g. confirmation of
display data or data input).
4.2 Startup Screen
Startup screen
The startup screen is displayed on the Operator Pendant when the Controller is turned ON.
Normally, it takes several tens of seconds to start up the Controller. The startup screen
shows that the Controller is starting up by a progress bar in the middle of the screen.
The version of the firmware installed on the Operator Panel is displayed at the bottom right
of the screen.
If the Controller starts up successfully, the screen automatically switches to the Program
Execution screen.
