6.5 About Gasket
The gasket is used for dust-proof and dip-proof performance.
- Gasket that is used for long periods of time or once has been installed on the panel is
NOTE
- The drip-proof performance (IP65 equivalent) is assured only when the gasket is

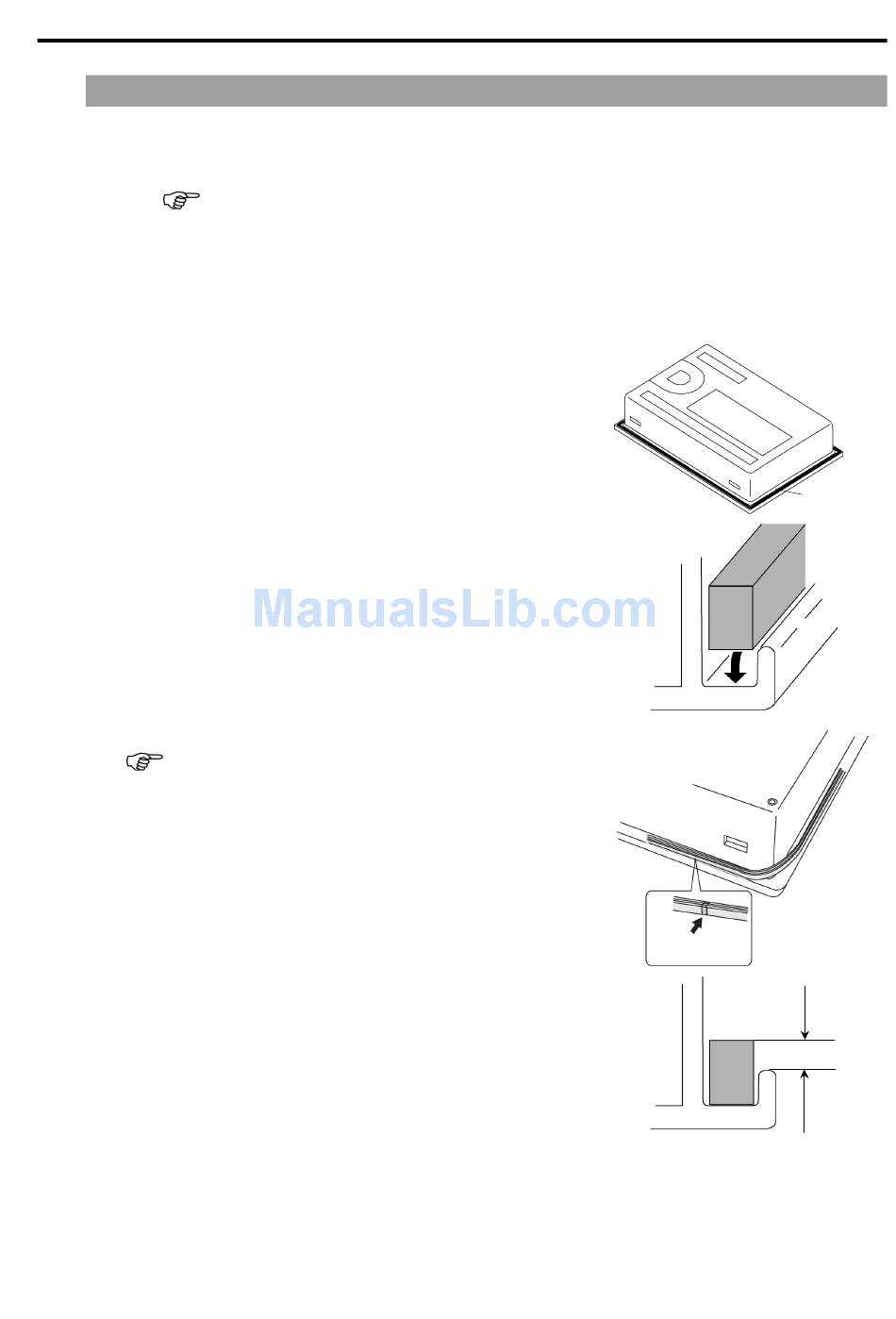

Replacement Procedure
(1) Put the Operator Panel on a horizontal place with
the display side down.
(2) Remove the gasket.
(3) Insert new gasket.
NOTE
Do not insert the seams of the gasket at the
-
corners of the Operator Panel.
Attach the gasket so that its seams come to the
-
bottom side the Operator Panel.
Make sure to check the mounting condition of
(4)
the gasket.
(The gasket
approximately 3.0 mm from the groove)
OP1 Rev.1a
scratched or dirty, and may not qualify IP65 dust-proofing and drop-proofing
performance. Replace the gasket periodically* for stable dust-proof and dip-proof
performance.
* Periodically: Yearly, or when obvious scratches or dirt is seen.
mounted properly to the groove.
evenly sticking out
6. Maintenance and Inspection
Gasket
Seams
3.0mm
35
