HP Compaq 8510p - Compaq Business Notebook Maintenance And Service Manual page 84

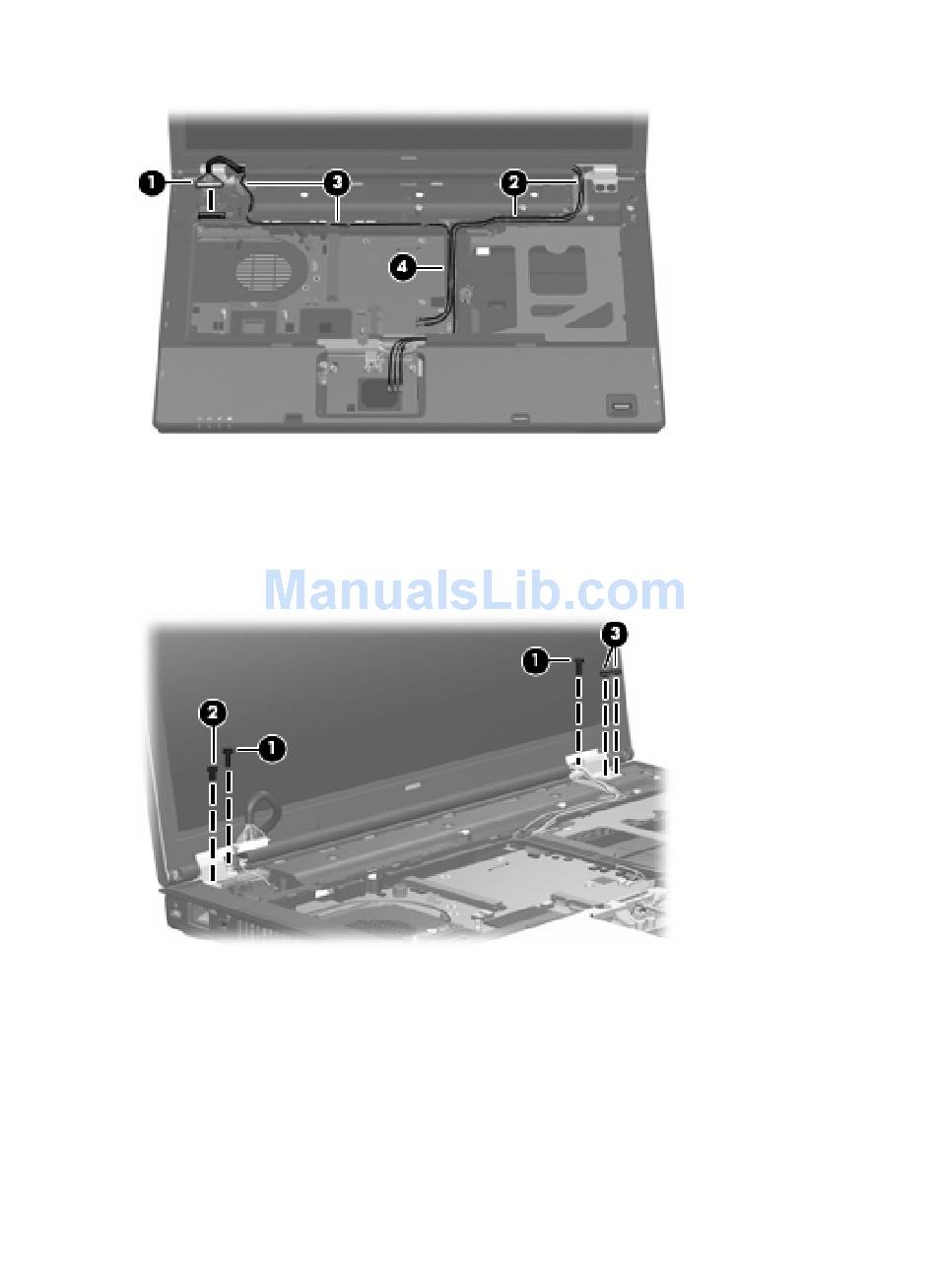

2. Remove the wireless antenna cables from the clips (2) and (3) and routing channels (4) built into
the top cover.
3. Remove the following screws:
(1) Two Torx T8M2.5×9.0 screws
(2) One Phillips PM2.5×4.0 screw
(3) Two Phillips PM2.0×2.0 screws
4. Position the computer with the rear panel toward you.
5. Remove the four Torx T8M2.5×9.0 screws (1) that secure the display assembly to the computer.
76 Chapter 4 Removal and replacement procedures
