i. Top cover (see
j. Speaker assembly (see
k. Modem module (see
l. System board (see

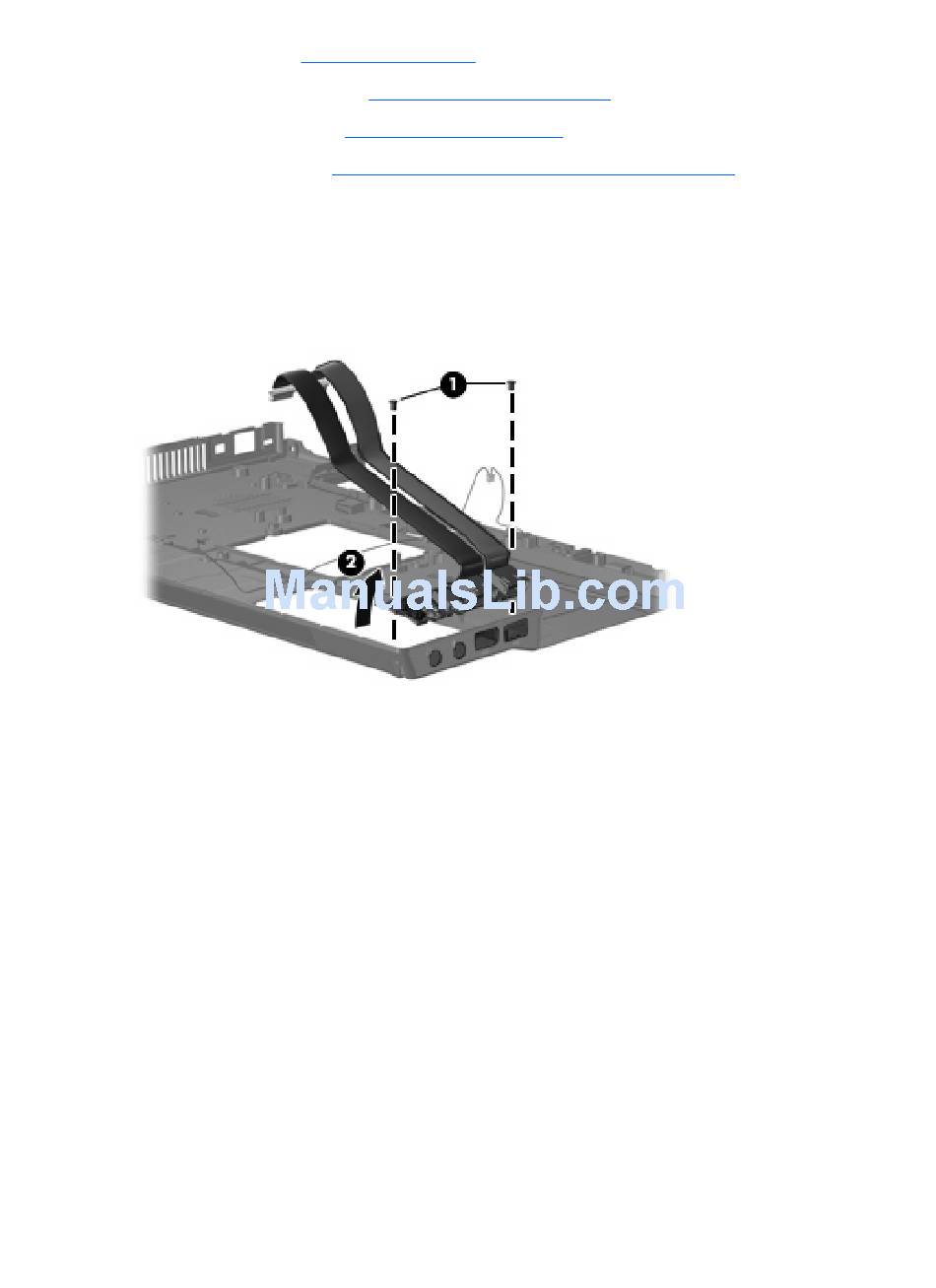

Remove the USB/audio board:
1. Remove the two Phillips PM2.5×4.0 screws (1) that secure the USB/audio board to the base
enclosure.
2. Lift the left side of the USB/audio board (2) until the USB and audio connectors disengage from
the openings in the base enclosure.
3. Remove the USB/audio board and cables from the base enclosure.
Reverse this procedure to install the USB/audio board.
92 Chapter 4 Removal and replacement procedures
Top cover on page 80)
Speaker assembly on page
Modem module on page
System board and system board frame on page
82)
84)
85)
