Before removing the WWAN module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the SIM (see
6. Remove the keyboard (see

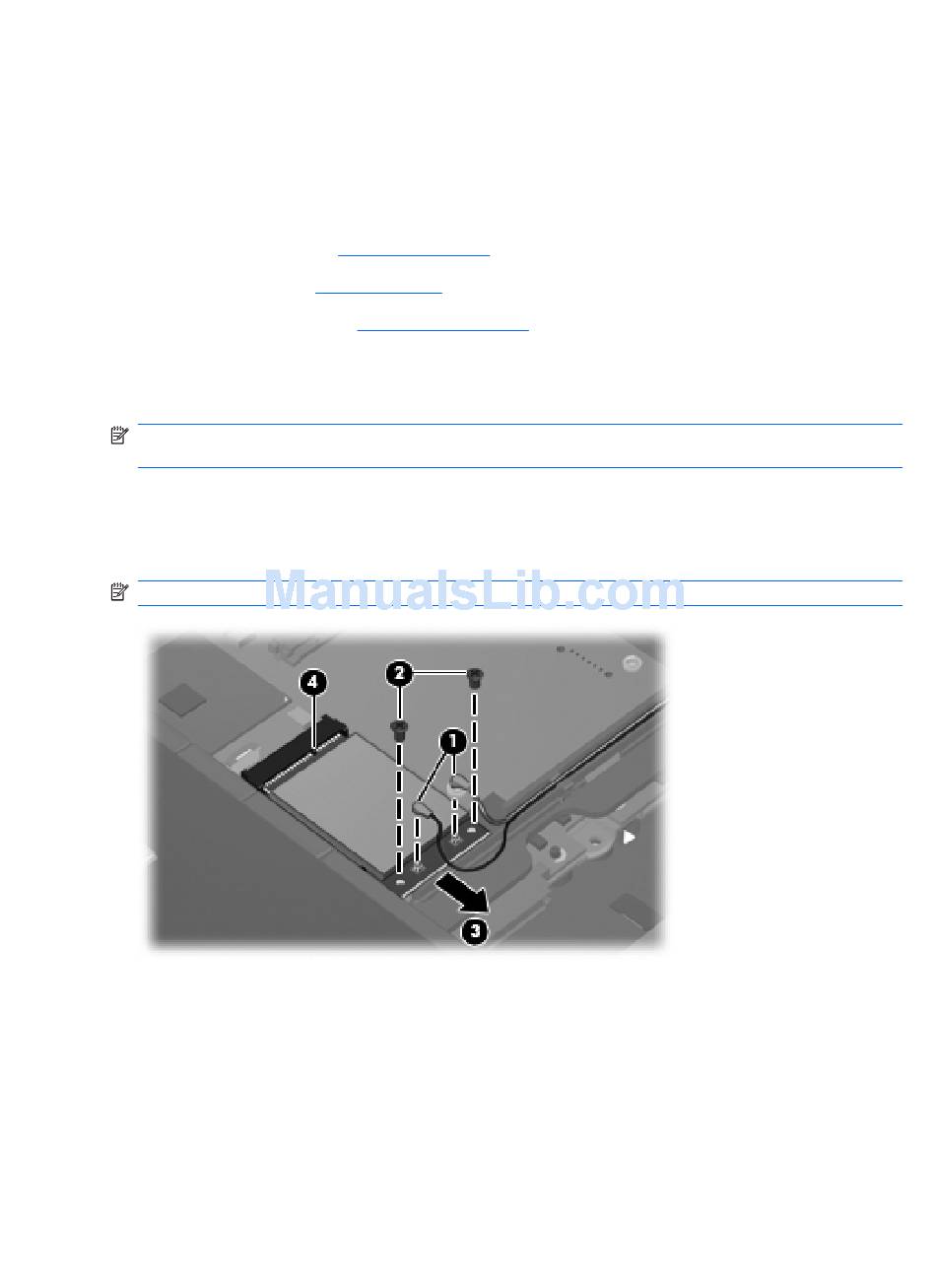

Remove the WWAN module:
1. Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.
NOTE:
blue WWAN antenna cable is connected to the WWAN module "Aux" terminal.
2. Remove the two Phillips PM2.5×4.0 screws (2) that secure the WWAN module to the computer.
(The edge of the module opposite the slot rises away from the computer.)
3. Remove the WWAN module (3) by pulling the module away from the slot at an angle.
NOTE:
Reverse this procedure to install the WWAN module.
60 Chapter 4 Removal and replacement procedures
Battery on page
SIM on page
Keyboard on page
The red WWAN antenna cable is connected to the WWAN module "Main" terminal. The
WWAN modules are designed with a notch (4) to prevent incorrect installation.
45).
46).
57).
