External Monitor - HP Compaq 8510p - Compaq Business Notebook Maintenance And Service Manual

Hp compaq 8510p notebook pc and hp compaq 8510w mobile workstation - maintenance and service guide
Hide thumbs
Table of Contents

Advertisement

External monitor

Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

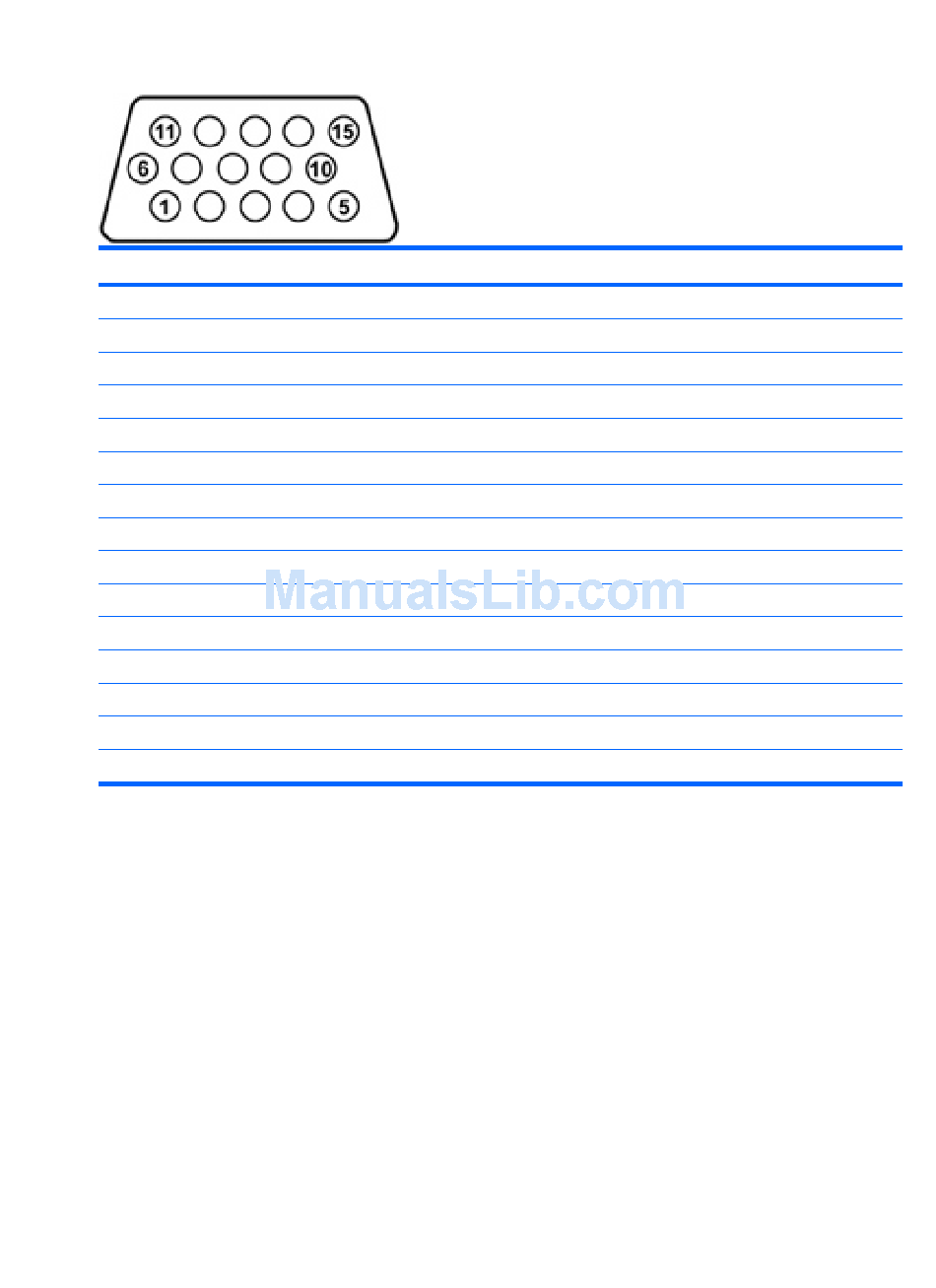

146 Chapter 9 Connector pin assignments
Signal
Red analog
Green analog
Blue analog
Not connected
Ground
Ground analog
Ground analog
Ground analog
+5 VDC
Ground
Monitor detect
DDC 2B data
Horizontal sync
Vertical sync
DDC 2B clock
