Before removing the keyboard, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Remove the keyboard:
1.
Turn the computer upside down, with the front toward you.
2.

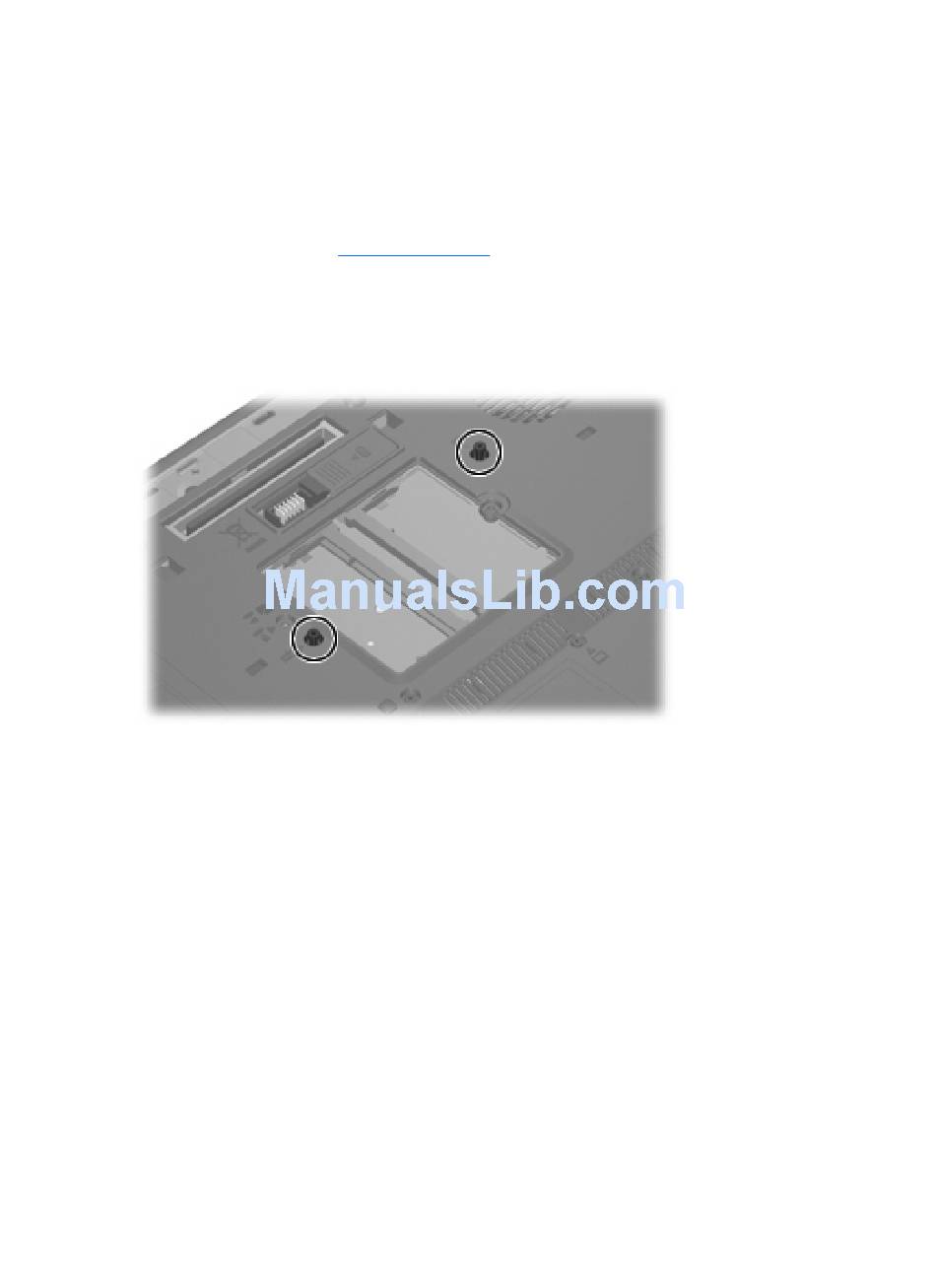

Loosen the two Phillips PM2.5×9.0 captive screws that secure the keyboard to the computer.
3.
Turn the computer display-side up, with the front toward you.
4.
Open the computer as far as possible.
5.
Slide the four keyboard retention tabs (1) toward you. The tabs are located between the
f1
keys, between the
keys.
58
Chapter 4 Removal and replacement procedures
Battery on page
45).
f4
and
f5
keys, between the
f8
and
f9
keys, and between the
esc
and
f12
and
scroll
