Fuser Drive Motor Removal - Lexmark Optra C710 Service Manual

5016-001

Fuser Drive Motor Removal

1. Remove the right side cover, refer to the
Removal" on page

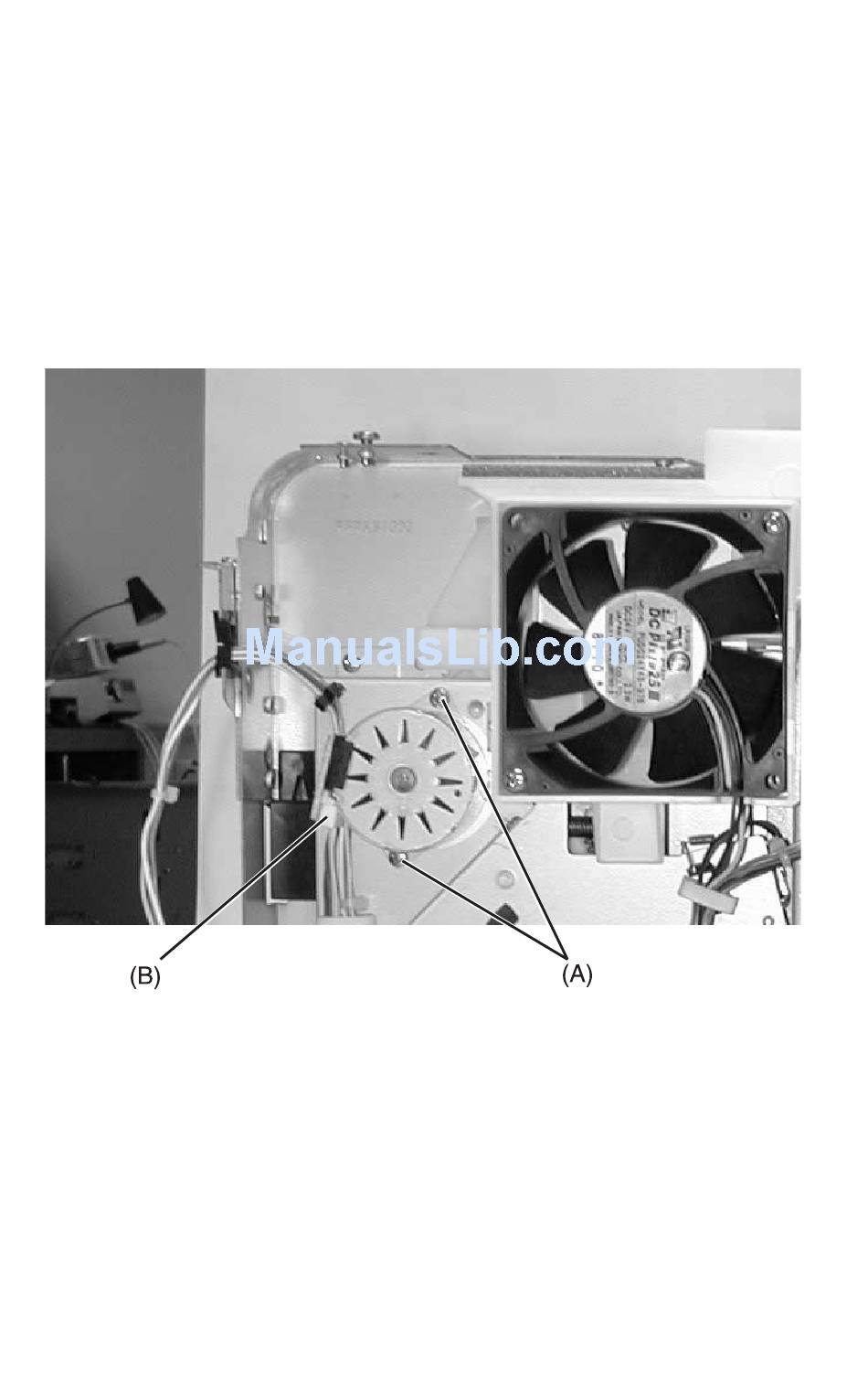

2. Remove the two (2) screws [A] from the fuser drive motor.
3. Disconnect the fuser drive motor cable [B].
4. Remove the fuser drive motor.
4-8
Service Manual
4-4.
"Right Side Cover
