5016-001

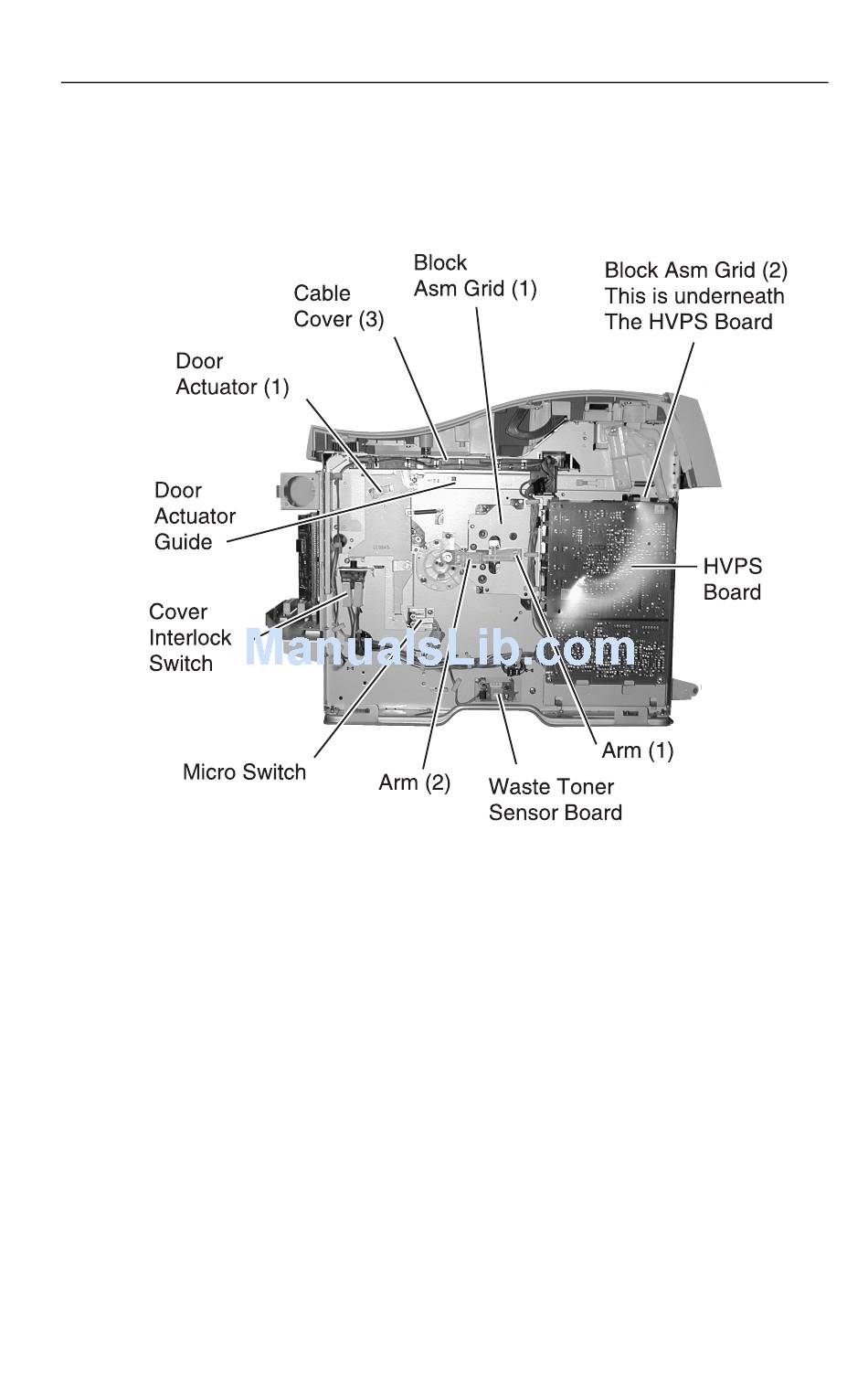

Left Side Removals
Remove the left side cover, refer to the
on page 4-3
Note: Take care when removing the cables on the left side of the
printer. Always ensure to route the cables through the appropriate
cable clips as shown.
and remove any of the following FRUs.
"Left Side Cover Removal"
Repair Information
4-15
