HVPS Board Assembly Removal
1. Remove the right side cover, refer to the
Removal" on page

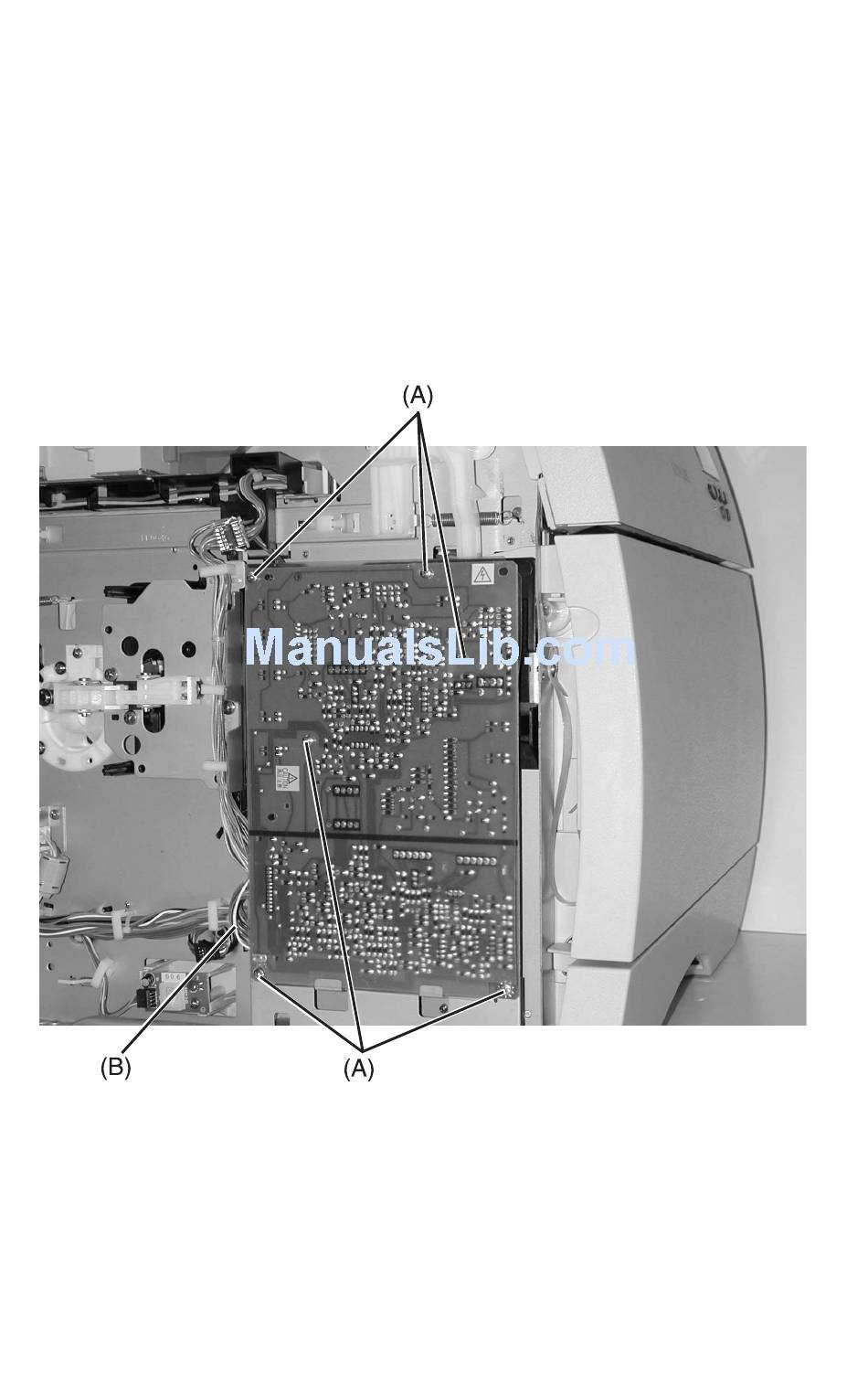

2. Remove the six (6) screws [A] from the HVPS board.
3. Disconnect the HVPS cable [B].
4. Remove the HVPS board assembly.
Note: When replacing the grid 1 block assembly, be sure not to
damage or deform the high voltage contact.
