5016-001
Second Paper Feed Unit (Optional Paper Trays)

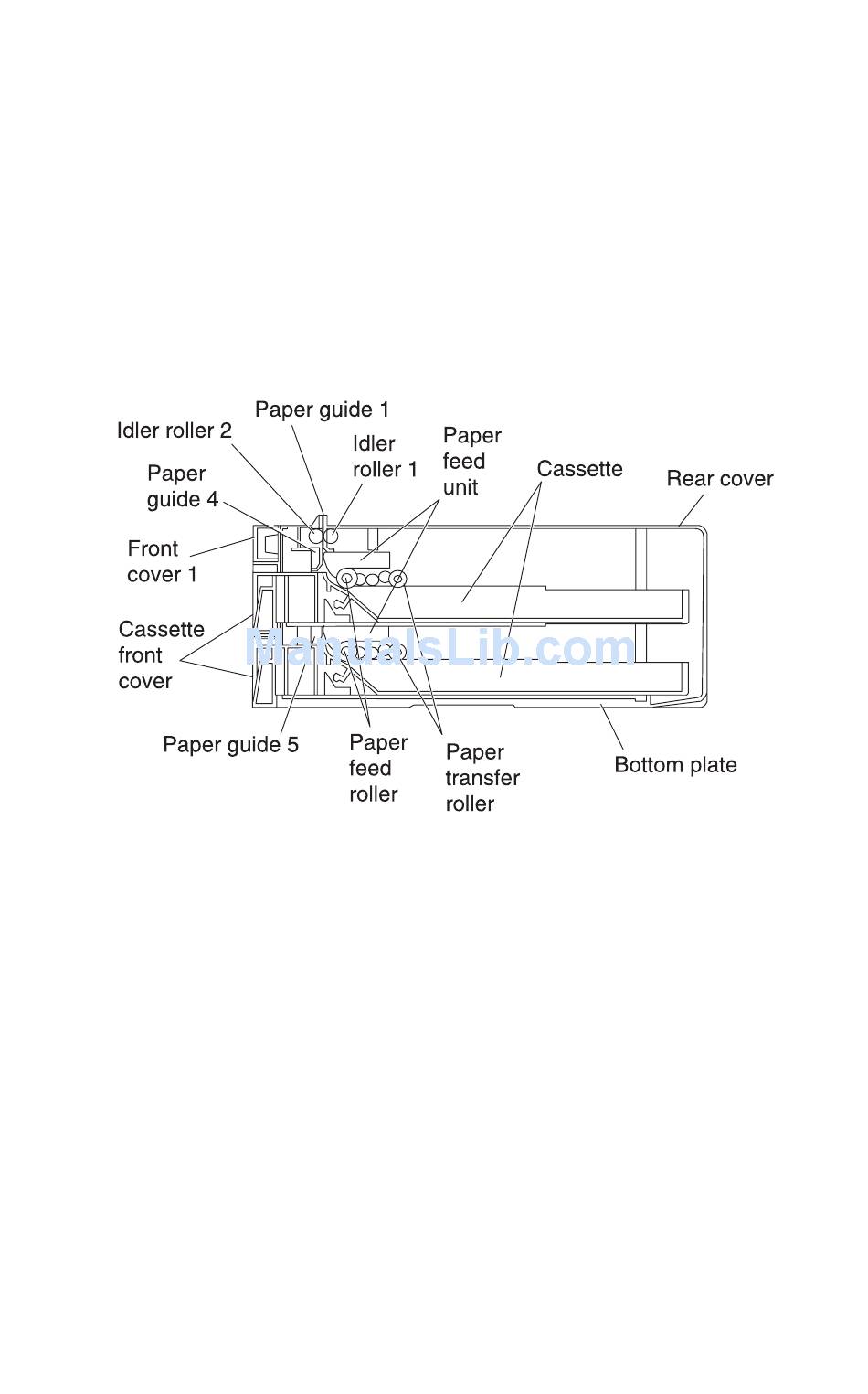

Construction of the Second paper feed option
The second paper feed unit consists of two separate feed units
which are the same as the paper feed unit for tray 1, along with idler
rollers above the paper feed units and paper guides on the side of
the paper feed opening. The interconnect board assembly, drive
module and LVPS for the option is located on the right side frame.
General Information
1-13
