5016-001
Carriage Drive Motor Removal
1. Remove the right side cover, refer to the
Removal" on page

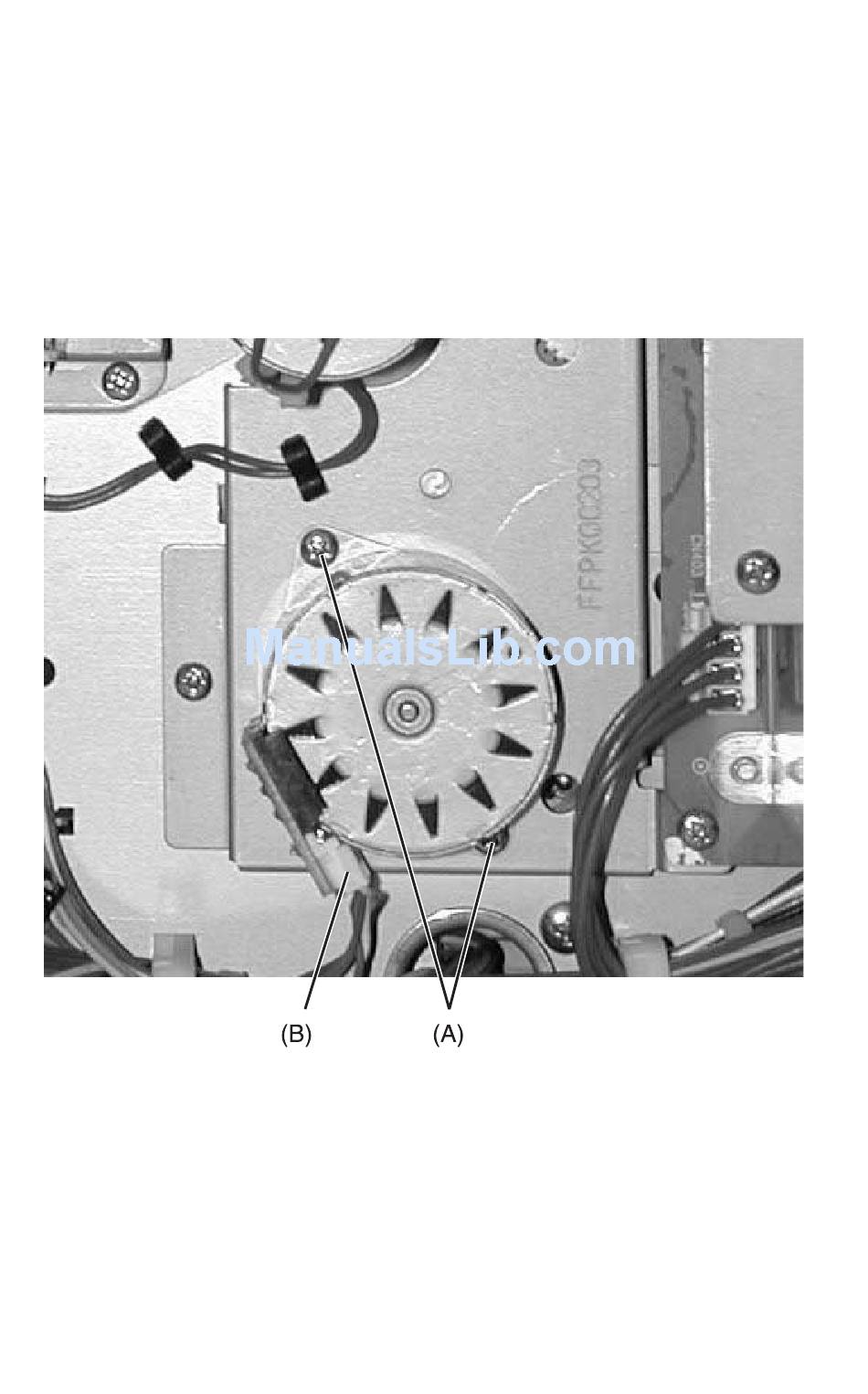

2. Remove the two (2) screws [A] from the carriage drive motor.
3. Disconnect the carriage drive cable [B].
4. Slide the carriage drive motor mechanism to the right and out of
the printer.
4-6
Service Manual
4-4.
"Right Side Cover
