5016-001

Motor Mounting Stay C Assembly Removal

1. Remove the main fan with mounting bracket, refer to the
Fan Mounting Bracket Removal" on page

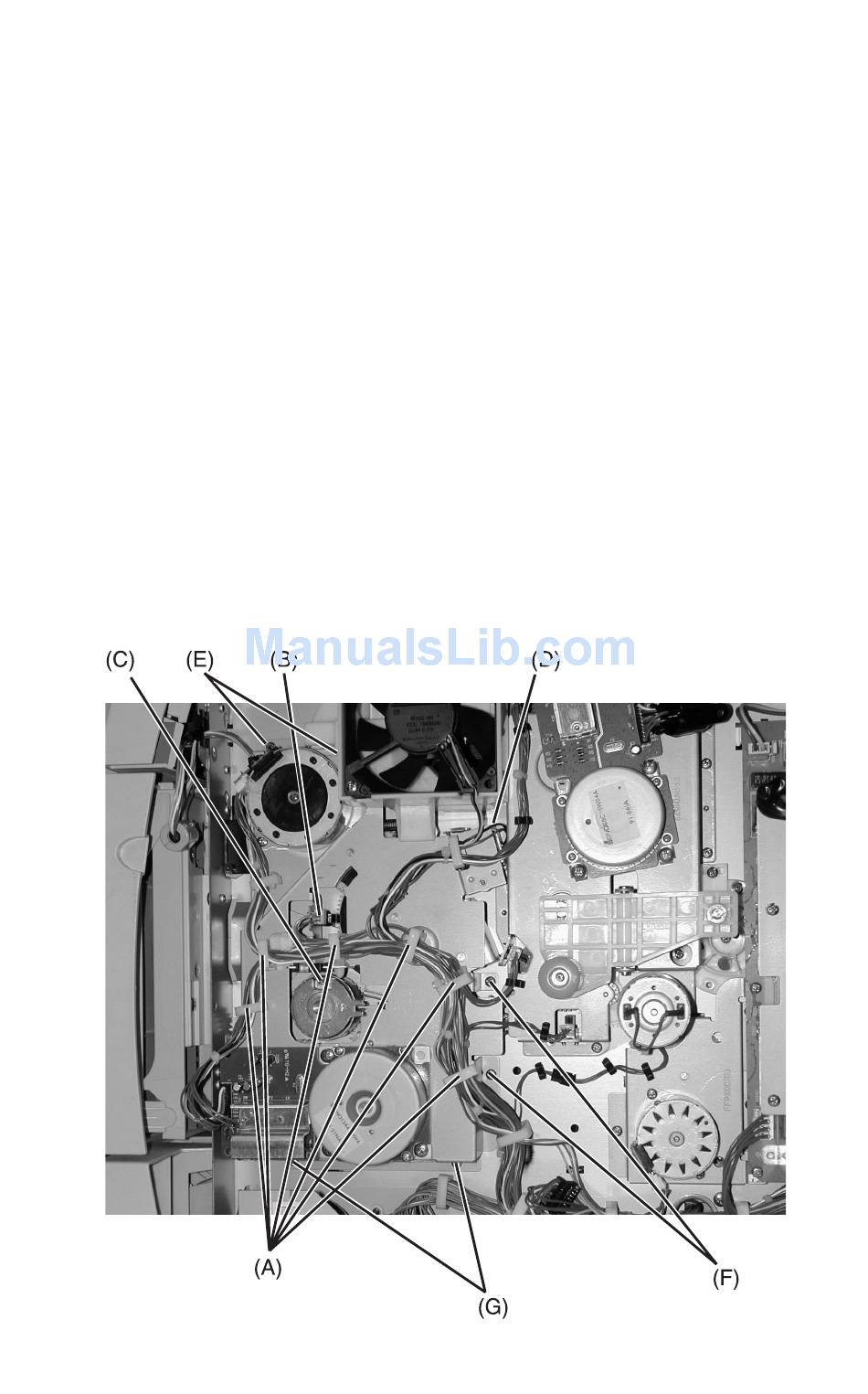

2. Disconnect the cable harness from the cable clips [A].
3. Disconnect the cam sensor cable [B].
4. Disconnect the cam clutch cable [C].
5. Disconnect the solenoid cable [D].
6. Remove the two (2) screws from the top of the motor mounting
stay assembly [E]. The screw on the top right is shorter and
must be replaced exactly as removed.
7. Remove the two (2) screws from the right side of the motor
mounting stay assembly [F].
8. Remove the two (2) screws from the bottom of the motor
mounting stay assembly [G].
Note: When reinstalling the motor mounting stay assembly, be sure
the timing belt remains in place with proper tension.
4-12.
Repair Information
"Main
4-13
