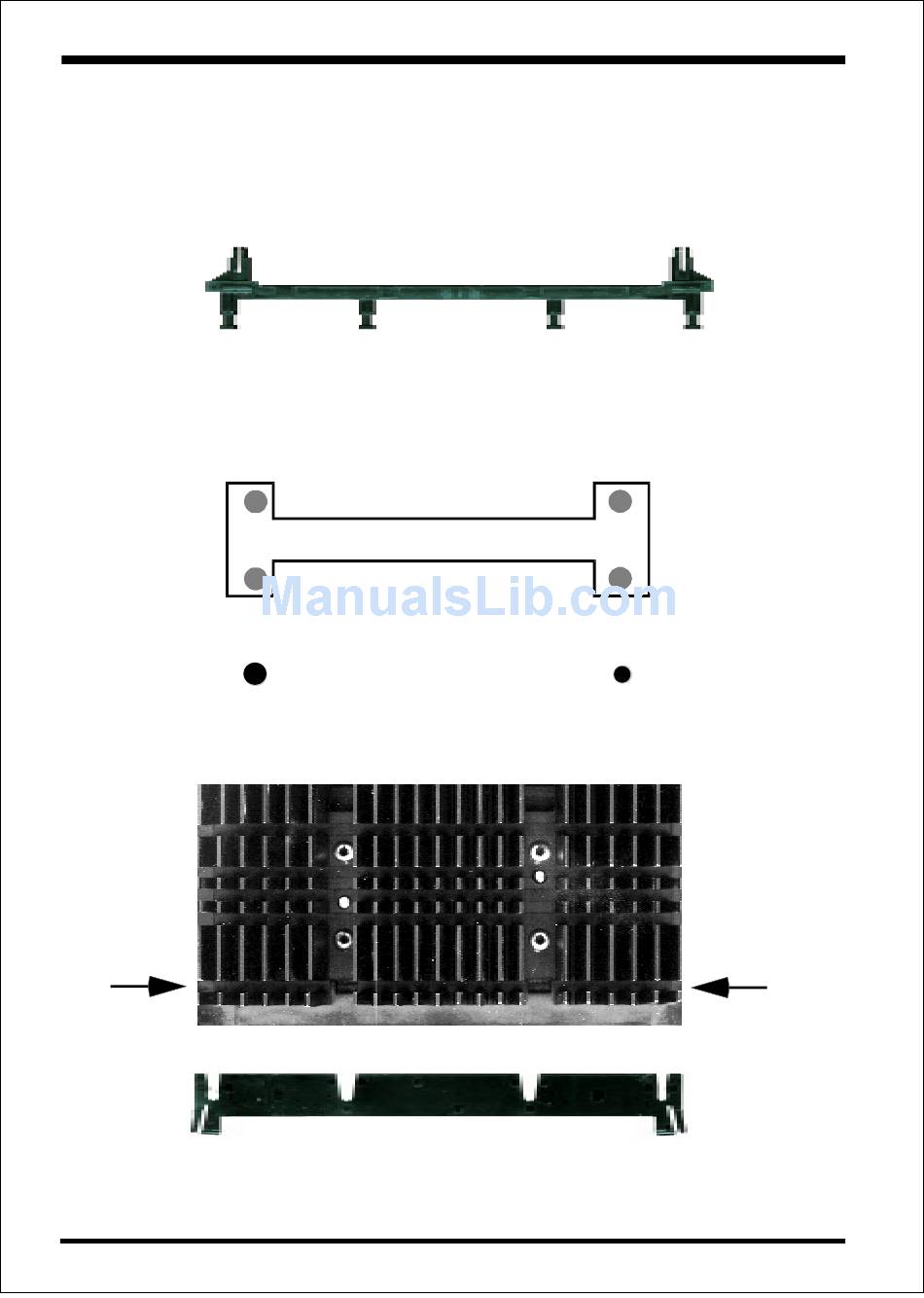

Now we need to secure the heatsink with the top half of the support (figure 9).
Take the top piece of the support and slide it into the bottom fin (figure 9) on
the heatsink and then push forward until it clips into the bottom base (figure 7)
that is already there (figure 9).
Figure 7 shows the layout of Slot 1 and the holes for mounting the Heatsink
base piece (figure 6).
Large Hole for Heat Sink Base
Bottom fin
of heatsink
Page 3-8
Figure 7
CPU Car tr idge SLOT 1
Small Hole for Heat Sink Base
Figure 8
Top half of the support
Figure 9
EP-6VBA
Motherboard
Layout
Bottom fin
of heatsink
