EPOX EP-6VBA User Manual page 21

EP-6VBA

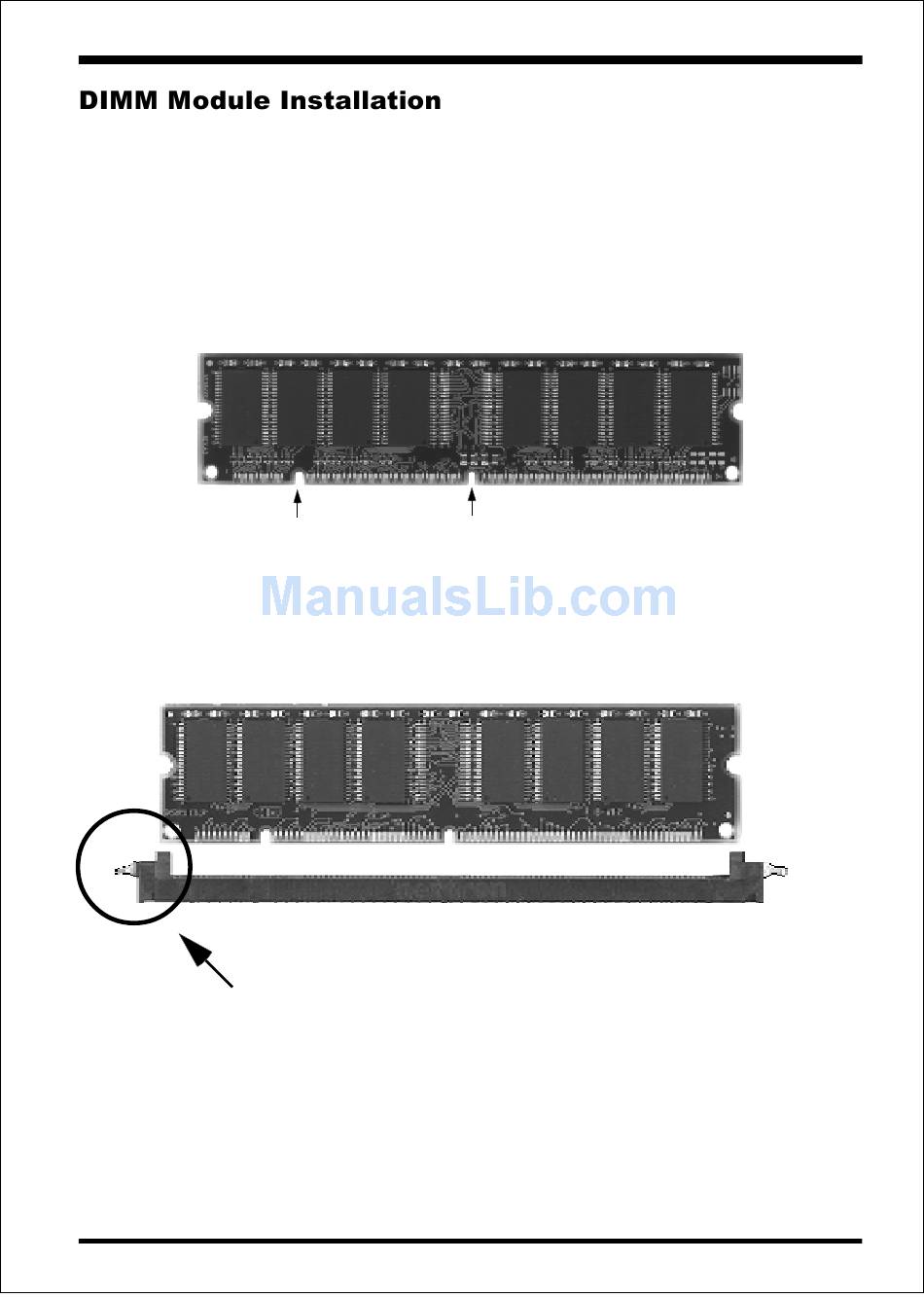

Figure 3 displays the notch marks and what they should look like on your
DIMM memory module.
DIMMs have 168-pins and two notches that will match with the onboard DIMM
socket. DIMM modules are installed by placing the chip firmly into the socket
at a 90 degree angle and pressing straight down (figure 4) until it fits tightly into
the DIMM socket (figure 5).
LEFT KEY ZONE
(UNBUFFERED)
Figure 3
Figure 4
DIMM Module clip before installation
CENTER KEY ZONE
(3.3 V DRAM)
Installation
Page 3-5
