Introduction
The EP-6VBA is equipped with an I/O back panel. Please use the appropriate I/
O shield (figure 3).
PS/2 Mouse
PS/2
KEYBOARD

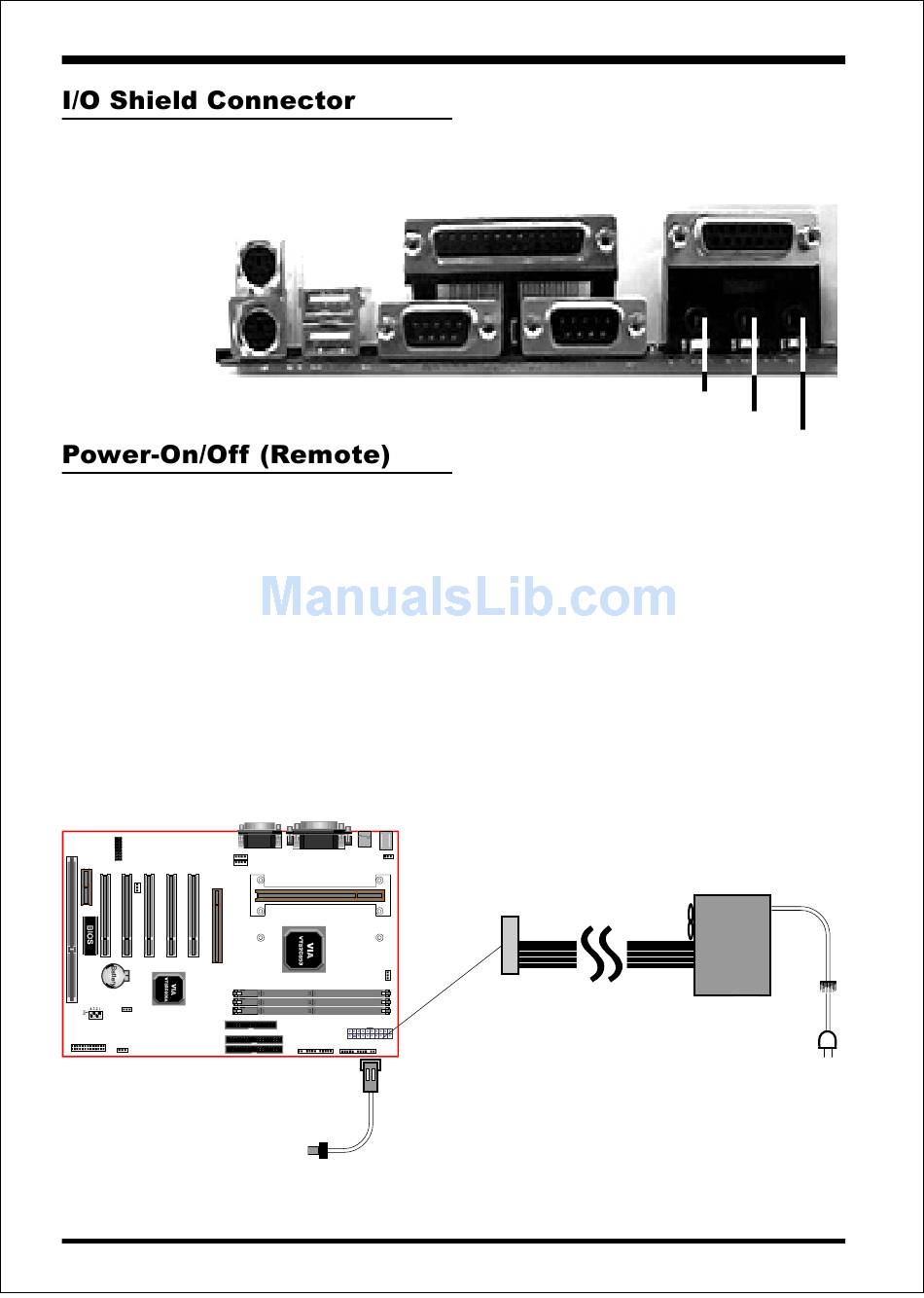

Figure 3: I/O back panel layout
The EP-6VBA has a single 20-pin connector for ATX power supplies. For ATX
power supplies that support the Remote On/Off feature, this should be connected
to the systems front panel for system Power On/Off button. The systems power
On/Off button should be a momentary button that is normally open.
The EP-6VBA has been designed with "Soft Off" functions. You can turn Off the
system from one of two sources: The first is the front panel Power On/Off
button, and the other is the "Soft Off" function (coming from the EP-6VBA's
onboard circuit controller) that can be controlled by the operating system. Win-
dows 95 will control this when the user clicks that they are ready to Shutdown the
system.
Case (chassis) Power
ON/OFF button (J 3)
Figure 4: Simple ATX Power ON/OFF Controller
Page 1-6
parallel port
USB port
COM1
J 3
EP-6VBA Board
Joystick/Midi port
COM2
Speaker
ATX
POWER SUPPLY
EP-6VBA
Line_in
MIC
