EPOX EP-6VBA2 User Manual

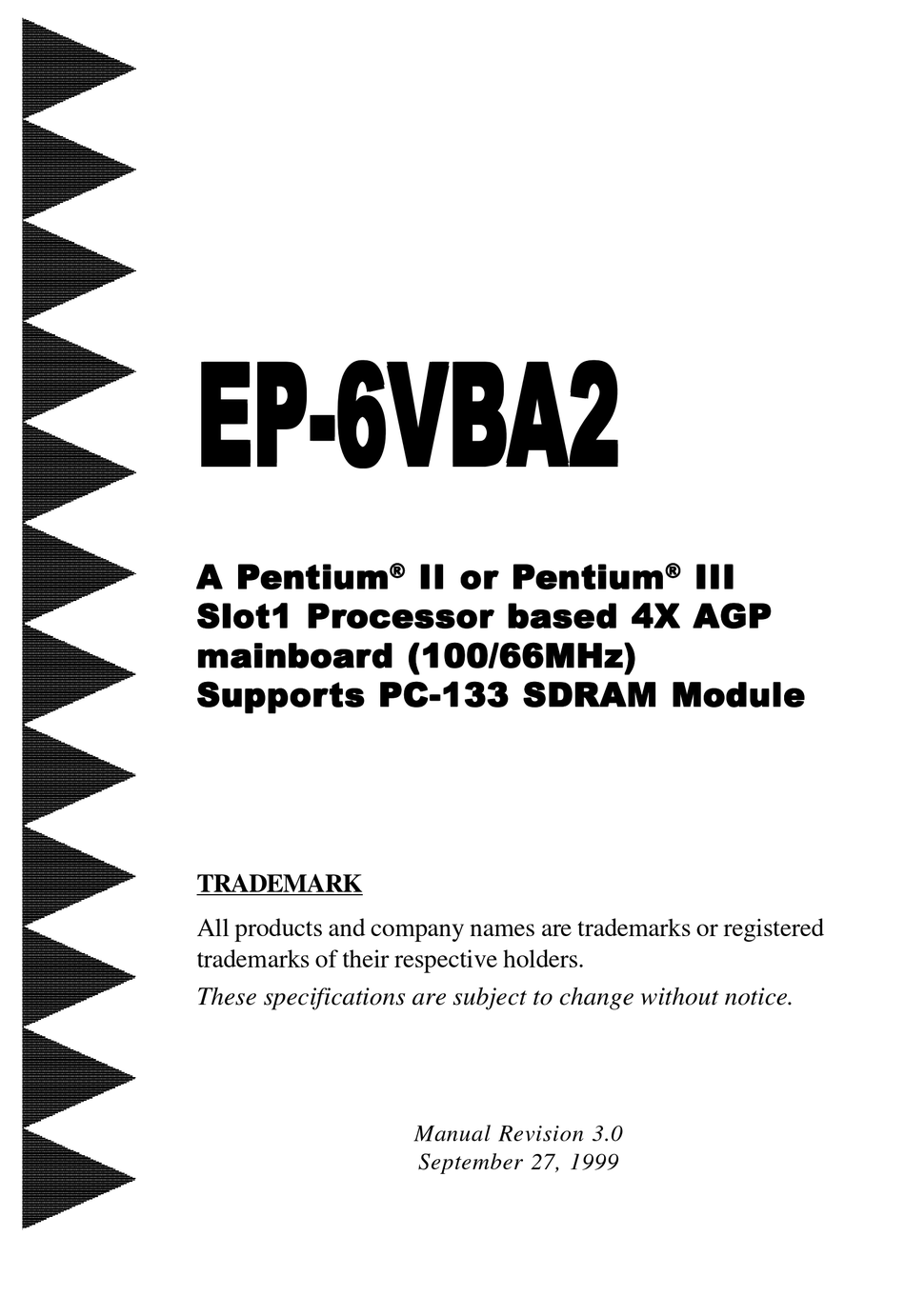

Pentium ii or pentium iii slot1 processor based 4x agp mainboar mainboard (100/66mhz) d (100/66mhz) supports pc-133 sdram module
Hide thumbs Also See for EP-6VBA2:
Table of Contents

Advertisement

Quick Links

EP-6VB
EP-6VB A2 A2 A2 A2 A2
EP-6VB
EP-6VB
EP-6VB
A P
A P entium
A P
entium
entium
entium
A P
A P
entium
Slot1 Processor based 4X AGP
Slot1 Processor based 4X AGP
Slot1 Processor based 4X AGP
Slot1 Processor based 4X AGP
Slot1 Processor based 4X AGP
mainboar
mainboar
mainboar
mainboar d (100/66MHz)
mainboar
Suppor
Suppor ts PC-133 SDRAM Module
Suppor
ts PC-133 SDRAM Module
ts PC-133 SDRAM Module
ts PC-133 SDRAM Module
Suppor
Suppor
ts PC-133 SDRAM Module
TRADEMARK
All products and company names are trademarks or registered
trademarks of their respective holders.
These specifications are subject to change without notice.
II or P entium
II or P
II or P
II or P
II or P
® ® ® ® ®
d (100/66MHz)
d (100/66MHz)
d (100/66MHz)
d (100/66MHz)
Manual Revision 3.0
September 27, 1999
entium
entium
entium
entium
® ® ® ® ®
III
III
III
III
III

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP-6VBA2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EPOX EP-6VBA2

Summary of Contents for EPOX EP-6VBA2

  • Page 1 EP-6VB EP-6VB A2 A2 A2 A2 A2 EP-6VB EP-6VB EP-6VB A P entium entium entium entium II or P II or P entium II or P entium entium entium entium II or P II or P entium ® ® ® ® ® ®...
  • Page 2 EPoX has been advised of the possibility of such damages arising from any defect or error in the manual or product. EPoX may revise this manual from time to time without notice. For updated BIOS, drivers, or product release information you may visit our websites at http://www.epox.com or http://www.epox.com.tw.
  • Page 3 EP-6VBA2 serial number: _________________________________ Contacting Technical Support EPoX technical support is working hard to answer all of your questions online. From our website you can find answers to many common questions, drivers, BIOS updates, tech notes, and important technical bulletins. If you are still unable to locate the solution you are seeking, you always have the option to contact our support technicians directly.

  • Page 4: Table Of Contents

    System Block Diagram ........1-7 Section 2 Features EP-6VBA2 Features ..........2-1 Section 3 Installatio EP-6VBA2 Detailed Layout ........ 3-2 Easy Installation Procedure Configure Jumpers ..........3-3 System Memory Configuration ......3-4 ® Installing a Pentium II/III Processor ....3-6 Device Connectors ..........
  • Page 5 EP-6VBA2 Change Supervisor or User Password ....4-22 IDE HDD Auto Detection ........4-23 Save & Exit Setup ..........4-25 Exit Without Saving ..........4-25 Driver Installation ..........5-1 Appendix Appendix A Memory Map ............A-1 I/O Map ..............A-1 Timer &...
  • Page 6 EP-6VBA2 Page Left Blank...

  • Page 7: Introduction

    INTRODUCTION Components Checklist ü ü ü ü ü EP-6VBA2 mainboard ü ü ü ü ü EP-6VBA2 user’s manual ü ü ü ü ü Floppy ribbon cable ü ü ü ü ü ATA-66 Hard drive ribbon cable ü ü ü ü ü...

  • Page 8: Overview

    Introduction EP-6VBA2 Overview Pentium II or Pentium III Processor ® ® ® ® ® The Pentium II or Pentium III Processor (The Pentium III Processor as 400/ 100MHz and 450/100MHz speed above with 512K-L2 cache Versions.) is the ® ®...

  • Page 9: Cartridge Terminology

    EP-6VBA2 Introduction ® ® The entire enclosed product is called the Pentium II or Pentium III Processor. The packaging technology and each of the physical elements of the product are referred to using accurate technical descriptions. This allows clear reference to the products as just a processor.

  • Page 10: Accelerated Graphics Port

    Introduction EP-6VBA2 The L2 cache (TagRAM, PBSRAM) components keep standard industry names. ® ® The Pentium II or Pentium III Processor is the first product to utilize the S.E.C. cartridge technology and Slot 1 connector. Unless otherwise noted, any refer- ®...

  • Page 11: Ep-6Vba2 Form-Factor

    Introduction EP-6VBA2 Form-Factor The EP-6VBA2 is designed with ATX form factor - the new industry standard of chassis. ATX form factor is essentially a Baby-AT baseboard rotated 90 degrees within the chassis enclosure and a new mounting configuration for the power supply.

  • Page 12: I/O Shield Connector

    Introduction EP-6VBA2 I/O Shield Connector The EP-6VBA2 is equipped with an I/O back panel. Please use the appropriate I/ O shield (figure 3). Joystick/Midi parallel port PS/2 Mouse USB port PS/2 KEYBOARD COM1 COM2 Speaker Line_in Figure 3: I/O back panel layout Power-On/Off (Remote) The EP-6VBA2 has a single 20-pin connector for ATX power supplies.

  • Page 13: System Block Diagram

    EP-6VBA2 Introduction System Block Diagram Pentium II Pentium III Processor 100/66MHz 100/66MHz 66MHz PCI Bridge and memory controller VT82C694X AMR Slot VT82C686A I/O Bridge USB 0,1 USB 2,3 Figure 5: System Block Diagram Page 1-7...
  • Page 14 Introduction EP-6VBA2 Page Left Blank Page 1-8...

  • Page 15: Features

    (2) independent high performance PCI IDE interfaces capable of supporting PIO Mode 3/4 and Ultra DMA 33/66 devices. The EP-6VBA2 supports (5) PCI Bus Master slots and a jumperless PCI INT# control scheme which reduces configuration confusion when plugging in PCI card(s).
  • Page 16 Features EP-6VBA2 • EP-6VBA2 utilizes a Lithium battery which provides environmental protection and longer battery life. • Supports the (4) Universal Serial Bus (USB) Ports. The onboard VT82C686A chip provides the means for connecting PC peripherals such as; keyboards, joysticks, telephones, and modems.

  • Page 17: Installation

    EP-6VBA2 Installation Section 3 INSTALLATION Page 3-1...

  • Page 18: Ep-6Vba2 Detailed Layout

    Installation EP-6VBA2 EP-6VBA2 Detailed Layout Figure 1 Page 3-2...

  • Page 19: Easy Installation Procedure

    EP-6VBA2 Installation Easy Installation Procedure Easy Installation Procedure The following must be completed before powering on your new system: 3-1. Configure DIP Switch and Jumper to match your hardware 3-2. System memory Configuration 3-3. Install Pentium II or Pentium III Processor 3-4.

  • Page 20: System Memory Configuration

    EP-6VBA2 Section 3-2 System Memory Configuration Memory Layout The EP-6VBA2 supports (3) PC133 168-pin DIMMs (Dual In-line Memory Module). The DIMMs can be either EDO (Enhanced Data Out) or SDRAM (Synchronized DRAM). • DIMM SDRAM may be 83MHz (12ns), 100MHz (10ns) or 125MHz (8ns) bus speed.
  • Page 21 EP-6VBA2 Installation DIMM Module Installation Figure 3 displays the notch marks and what they should look like on your DIMM memory module. DIMMs have 168-pins and two notches that will match with the onboard DIMM socket. DIMM modules are installed by placing the chip firmly into the socket at a 90 degree angle and pressing straight down (figure 4) until it fits tightly into the DIMM socket (figure 5).

  • Page 22: Installing A Pentium Ii/Iii Processor

    Installation EP-6VBA2 Section 3-3 Installing a Pentium II/III Processor ® The EP-6VBA2 uses the Single Edge Contact (SEC) slot for a Pentium II/III processor packaged in an SEC cartridge. The SEC slot is not compatible with other ® non-Pentium II/III processors.
  • Page 23 EP-6VBA2 Installation will be shipped with the boxed processor to draw power from a power header on the mainboard’s J4. Now we are ready to install the SEC Cartridge (Pentium II/III Processor) into the Retention Module. The SEC Cartridge is mounted by sliding the SEC Cartridge into the Retention Module and letting it slide all the way down.

  • Page 24: Device Connectors

    Installation EP-6VBA2 Section 3-4 Device Connectors Please install the motherboard into the chassis. Now that your motherboard is installed you are ready to connect all your connec- tions (figure 7). Joystic/Midi port parallel port PS/2 Mouse USB port PS/2 KEYBOARD...
  • Page 25 EP-6VBA2 Installation Device Connectors (continued) (This is connected to the power button on the case. Using the Soft-Off by Pwr-BTTN feature, you can choose either Instant Off (turns system off immediatly), or 4 sec delay (you need to hold the button down for 4 seconds before the system turns off).

  • Page 26: External Modem Ring-In Power On And Keyboard Power On Function (Kbpo)

    On the basis of bounded functions in I/O chipset, the two serial ports are able to support the External Modem Ring-in Power ON function. Once users connect the external modem to COM1 or COM2, the EP-6VBA2 mainboard allows users to turn on their system through the remote and host's dial-up control.

  • Page 27: Award Bios Setup

    EP-6VBA2 BIOS Section 4 AWARD BIOS SETUP BIOS Instructions Award’s ROM BIOS provides a built-in Setup program which allows user to modify the basic system configuration and hardware parameters. The modified data will be stored in a battery-backed CMOS, so that data will be retained even when the power is turned off.

  • Page 28: Standard Cmos Setup

    BIOS EP-6VBA2 The menu displays all the major selection items. Select the item you need to reconfigure. The selection is made by moving the cursor (press any direction key ) to the item and pressing the ‘Enter’ key. An on-line help message is displayed at the bottom of the screen as the cursor is moved to various items which provides a better understanding of each function.

  • Page 29: Bios Features Setup

    Selecting the “BIOS FEATURES SETUP” option in the CMOS SETUP UTILITY menu allows users to change system related parameters in the displayed menu. This menu shows all of the manufacturer’s default values for the EP-6VBA2. Pressing the [F1] key will display a help message for the selected item.
  • Page 30 BIOS EP-6VBA2 Virus Warning: During and after the system boots up, any attempt to write to the boot sector or partition table of the hard disk drive will halt the system and an error message will appear. You should then run an anti-virus program to locate the virus. Keep in mind that this feature protects only the boot sector, not the entire hard drive.
  • Page 31 EP-6VBA2 BIOS Quick Power On Self Test: This category speeds up the Power On Self Test (POST). The default is Enabled. Enabled: This setting will shorten or skip of the items checked during POST. Disabled: Normal POST. Boot Sequence: This category determines which drive is searched first by the O/S (Operating System).
  • Page 32 BIOS EP-6VBA2 Gate A20 Option: This refers to the way the system addresses memory above 1MB (extended memory). The default is Fast. Normal: The A20 signal is controlled by the keyboard controller or chipset hardware. Fast: The A20 signal is controlled by Port 92 or chipset specific method.
  • Page 33 EP-6VBA2 BIOS PCI/VGA Palette Snoop: This field controls the ability of a primary PCI VGA controller to share a common palette (When a snoop write cycles) with an ISA video card. The default is Disabled. Enabled: If an ISA card is connected to a PCI VGA card via the VESA connector, and that ISA card connects to a VGA monitor, then that ISA card uses the RAMDAC of the PCI card.

  • Page 34: Chipset Features Setup

    BIOS EP-6VBA2 4-3 Chipset Features Setup Choose the “CHIPSET FEATURES SETUP” in the CMOS SETUP UTILITY menu to display following menu. Figure 4: Chipset Features Setup Bank 0/1, 2/3, 4/5 DRAM Timing: This value in this field is set by the system board manufacturer, depending on whether the board has paged DRAMs or EDO (extended data output) DRAMs.
  • Page 35 EP-6VBA2 BIOS DRAM Page-Mode: The item will active or inactive chipset page registers. Enabled: Page-Mode Enabled. Disabled: No page registers update and non Page-Mode operation. Memory Hole : You can reserve this memory area for the use of ISA adaptor ROMs.
  • Page 36 BIOS EP-6VBA2 AGP-4X Mode: Chipset AGP Mode support. Options: x1 , x2 and x4. OnChip USB: Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB peripheral. USB Keyboard Support: This controls the activation status of an optional USB keyboard that may be attached.

  • Page 37: Power Management Setup

    EP-6VBA2 BIOS 4-4 Power Management Setup Choose the “POWER MANAGEMENT SETUP” in the CMOS SETUP UTILITY to display the following screen. This menu allows the user to modify the power management parameters and IRQ signals. In general, these parameters should not be changed unless it’s absolutely necessary.
  • Page 38 BIOS EP-6VBA2 Min. saving: Minimum power savings. Inactivity period is 1 hour in each mode. User define: Allows user to define PM Timers parameters to control power saving mode. PM controlled APM: This option shows weather or not you want the Power Management to be controlled the Advanced Power Management (APM).
  • Page 39 EP-6VBA2 BIOS Soft-Off by PWRBTN: Use this to select your soft-off function. The default is Delay 4 sec. Instant Off: Turns off the system instantly. Delay 4 Second : Turns off the system after a 4 second delay. If momentary press of button, the system will go into Suspend Mode.

  • Page 40: Pnp/Pci Configuration

    BIOS EP-6VBA2 4-5 PNP/PCI Configuration The PNP/PCI configuration program is for the user to modify the PCI/ISA IRQ signals when various PCI/ISA cards are inserted in the PCI or ISA slots. WARNING: Conflicting IRQ’s may cause the system to not find certain devices.
  • Page 41 EP-6VBA2 BIOS Reset Configuration Data: This setting allows you to clear ESCD data. The default is Disabled Disabled: Normal Setting. Enabled: If you have plugged in some Legacy cards to the system and they were recorded into ESCD (Extended System Configuration Data), you can set this field to Enabled in order to clear ESCD.

  • Page 42: Load Setup Defaults

    BIOS EP-6VBA2 4-6 Load Setup Defaults The “LOAD SETUP DEFAULTS” function loads the system default data directly from ROM and initializes the associated hardware properly. This function will be necessary only when the system CMOS data is corrupted. 4-7 Integrated Peripherals...
  • Page 43 EP-6VBA2 BIOS OnChip IDE Channel1: The default is Enabled. Enabled: Enables Onboard IDE secondary port. Disabled: Disables Onboard IDE secondary port. IDE Prefetch Mode: Enable prefetching for IDE drive interfaces that support its faster drive accesses. If uou are getting disk drive errors, change the setting to omit the drive interface where the errors occur.
  • Page 44 BIOS EP-6VBA2 Primary Slave UDMA: This allows you to select the mode of operation for the hard drive. The default is Auto. Auto: The computer will select the optimal setting. Disabled: The hard drive will run in normal mode. Secondary Master UDMA: This allows you to select the mode of operation for the hard drive.
  • Page 45 EP-6VBA2 BIOS COM2: Enable Onboard Serial port 2 and address is 2F8H/IRQ3. COM3: Enable Onboard Serial port 2 and address is 3E8H/IRQ4. COM4: Enable Onboard Serial port 2 and address is 2E8H/IRQ3. Disabled: Disable Onboard SMC CHIP’s Serial port 2.

  • Page 46: Sensor And Cpu Speed Setup

    BIOS EP-6VBA2 4-8 Sensor and CPU Speed Setup C/87 C/75 0 RPM 0 RPM 2.07V 1.52V 3.33V 5.02V 12.15V Auto Detect DIMM/PCI Clk: When enabled the motherboard will automatically disable the clock source for a DIMM socket which does not have a module in it.
  • Page 47 EP-6VBA2 BIOS DRAM Clock Is: The item will synchronize/asynchronize DRAM operation clock. Host Clock: DRAM has same working clock with CPU host bus. 2/3 Host: DRAM running with lower operation clock. CPUFAN Off In Suspend: This option is used to set if the CPU fans will turn off during suspend mode.

  • Page 48: Change Supervisor Or User Password

    BIOS EP-6VBA2 4-9 Change Supervisor or User Password To change the password, choose the “SUPERVISOR PASSWORD or USER PASSWORD” option from the CMOS SETUP UTILITY menu and press [Enter]. Note: Either “Setup” or “System” must be selected in the “Security Option”...

  • Page 49: Ide Hdd Auto Detection

    EP-6VBA2 BIOS 4-10 IDE HDD Auto Detection The “IIDE HDD auto detection” utility is a very useful tool, especially when you do not know which kind of hard disk type you are using. You can use this utility to detect the correct disk type installed in the system automatically. But now you can set HARD DISK TYPE to Auto in the STANDARD CMOS SETUP.
  • Page 50 BIOS EP-6VBA2 If user set his HDD to NORMAL mode, the maximum accessible HDD size will be 528 Megabytes even though its physical size may be greater than that! LBA (Logical Block Addressing) mode: A new HDD accessing method to overcome the 528 Megabyte bottleneck.

  • Page 51: Save & Exit Setup

    EP-6VBA2 BIOS Note: To support LBA or LARGE mode of HDDs, there must be some software involved. All the software is located in the Award HDD Service Routine (INT 13h). It may fail to access a HDD with LBA (LARGE) mode selected if you are running under an Operating System which replaces the whole INT 13h.
  • Page 52 BIOS EP-6VBA2 Page Left Blank Page 4-26...

  • Page 53: Appendix

    EP-6VBA2 Appendix Appendix A A-1 MEMORY MAP Address Range Size Description [00000-7FFFF] 512K Conventional memory [80000-9FBFF] 127K Extended Conventional memory [9FC00-9FFFF] Extended BIOS data area if PS/2 mouse is installed [A0000-C7FFF] 160K Available for Hi DOS memory [C8000-DFFFF] Available for Hi DOS memory and adapter...

  • Page 54: Timer & Dma Channels Map

    Appendix EP-6VBA2 [2F8-2FF] SERIAL port 2. [360-36F] NETWORK ports. [378-37F] PARALLEL port 1. [3B0-3BF] MONOCHROME & PARALLEL port adapter. [3C0-3CF] EGA adapter. [3D0-3DF] CGA adapter. [3F0-3F7] FLOPPY DISK controller. [3F8-3FF] SERIAL port 1. A-3 TIMER & DMA CHANNELS MAP TIMER MAP: TIMER Channel 0 System timer interrupt.

  • Page 55: Rtc & Cmos Ram Map

    EP-6VBA2 Appendix FLOPPY DISK (SMC CHIP). PARALLEL port 1. RTC clock. Available. Available. Available. PS/2 Mouse. MATH coprocessor. Onboard HARD DISK (IDE1) channel. Onboard HARD DISK (IDE1) channel. A-5 RTC & CMOS RAM MAP RTC & CMOS: Seconds. Second alarm.
  • Page 56 Appendix EP-6VBA2 Base memory high byte. Extension memory low byte. Extension memory high byte. 19-2d 2E-2F Reserved for extension memory low byte. Reserved for extension memory high byte. DATE CENTURY byte. INFORMATION FLAG. 34-3F Reserve. 40-7F Reserved for CHIPSET SETTING DATA.

  • Page 57: Post Codes

    EP-6VBA2 Appendix Appendix B B-1 POST CODES ISA POST codes are typically output to I/O port address 80h. POST (hex) DESCRIPTION 01-02 Reserved. Turn off OEM specific cache, shadow. 1. Initialize EISA registers (EISA BIOS only). 2. Initialize all the standard devices with default values Standard devices includes.
  • Page 58 Appendix EP-6VBA2 Create resource map from ESCD. 5. Assign IO & Memory for PCI devices. (PCI BIOS only) Initialization of the BIOS Data Area. (40:ON - 40:FF) 1. Program some of the Chipset's value according to Setup. (Early Setup Value Program) 2.
  • Page 59 EP-6VBA2 Appendix 2. Program all onboard super I/O chips (if any) including COM ports, LPT ports, FDD port ... according to setup value. 33-3B Reserved. Set flag to allow users to enter CMOS Setup Utility. 1. Initialize Keyboard. 2. Install PS2 mouse.

  • Page 60: Unexpected Errors

    Appendix EP-6VBA2 5. Program parity according to Setup setting. 6. Power Management Initialization. Enable/Disable global PM. APM interface initialization. 1. If it is NOT a PnP BIOS, initialize serial & parallel ports. 2. Initialize time value in BIOS data area by translate the RTC time value into a timer tick value.

  • Page 61: Appendix C Load Setup Defaults

    EP-6VBA2 Appendix Appendix C NOTE: The "LOAD SETUP DEFAULTS" function loads the system default data directly from ROM and initializes the associated hardware properly. This function will be necessary when you accept this mainboard, or the system CMOS data is corrupted.
  • Page 62 Appendix EP-6VBA2 Page Left Blank A-10...

  • Page 63: Ghost 5.1 Quick User's Guide

    EP-6VBA2 Appendix Appendix D D-1 GHOST 5.1 Quick User’s Guide Installation is very easy. You only need to copy the Ghost5 folder or Ghost.exe to your hard disk. The current market version is for single Client, so the LPT and NetBios portions will not be explained further.
  • Page 64 Appendix EP-6VBA2 There are 3 hard disk functions: 1. Disk To Disk (disk cloning) 2. Disk To Image (disk backup) 3. Disk From Image (restore backup) Important! 1. To use this function, the system must have at least 2 disks. Press the Tab key to move the cursor.
  • Page 65 EP-6VBA2 Appendix 4. Click OK to display the following confirmation screen. Select Yes to start. Disk To Image (Disk Backup) 1. Select the location of the Source drive. 2. Select the location for storing the backup file. A-13...
  • Page 66 Appendix EP-6VBA2 3. Click OK to display the following confirmation screen. Select Yes to start. Disk From Image (Restore Backup) 1. Select the Restore file. 2. Select the Destination drive of the disk to be restored. A-14...
  • Page 67 EP-6VBA2 Appendix 3. When restoring disk backup, set the required partition size as shown in the following figure. 4. Click OK to display the following confirmation screen. Select Yes to start. Partition A-15...
  • Page 68 Appendix EP-6VBA2 There are 3 partition functions: 1. Partition To Partition (partition cloning) 2. Partition To Image (partition backup) 3. Partition From Image (restore partition) Partition To Partition (Partition Cloning) The basic unit for partition cloning is a partition. Refer to disk cloning for the operation method.
  • Page 69 EP-6VBA2 Appendix 3. Select the path and file name for storing the backup file. 4. Is the file compressed? There are 3 options: (1) No: do not compress data during backup (2) Fast: Small volume compression (3) High: high ratio compression. File can be compressed to its minimum, but this requires longer execution time.
  • Page 70 Appendix EP-6VBA2 Partition From Image (Restore Partition) Select the backup file to be restored. 2. Select the source partition. 3. Select the disk to be restored. A-18...
  • Page 71 EP-6VBA2 Appendix 4. Select the partition to be restored. 5. Select Yes to start restoring. Check This function checks the hard disk or backup file for backup or restoration error due to FAT or track error. A-19...
