Token Ring Statistics
Using these radio buttons, you can choose whether to view the statistics gathered
since the MicroMMAC-T was last restarted or (if you are monitoring port-level
statistics) since the station was first inserted (Total), during the last polling
interval (Delta), or accumulated from zero at a user-defined point (Cumulative).
You set the interval to update information (from 1 second to 23 hours, 59 minutes,
59 seconds) by using the clock symbol at the bottom of the window (See
the Statistics Poll
To choose Total, Delta, or Cumulative:
•
•
•

Viewing Elapsed, Average, and Peak Activity Levels

Timer Statistics windows measure activity levels for different network events on a
color-coded strip chart. An example of this chart is shown in
The activity states and their colors are:
•
•
3-2
Interval, below, for details on using the clock symbol).
Click on the Total radio button. After the completion of the current polling
cycle plus one complete polling cycle, the screen will display the sum of
statistics processed since the MicroMMAC-T was last restarted or (if you are
monitoring port-level statistics) since the station was first inserted. These
totals are read from the device and updated at each subsequent polling
interval.
Click on the Delta radio button. After the completion of the current polling
cycle plus two more polling cycles, the screen will display the count of
statistics processed during the last polling interval. These counts are refreshed
after each polling cycle.
Click on the Cumulative radio button. After the completion of the current
polling cycle, the screen will display the count of statistics processed during
the last polling interval, and then will accumulate statistics with each polling
cycle thereafter until another display option is chosen.

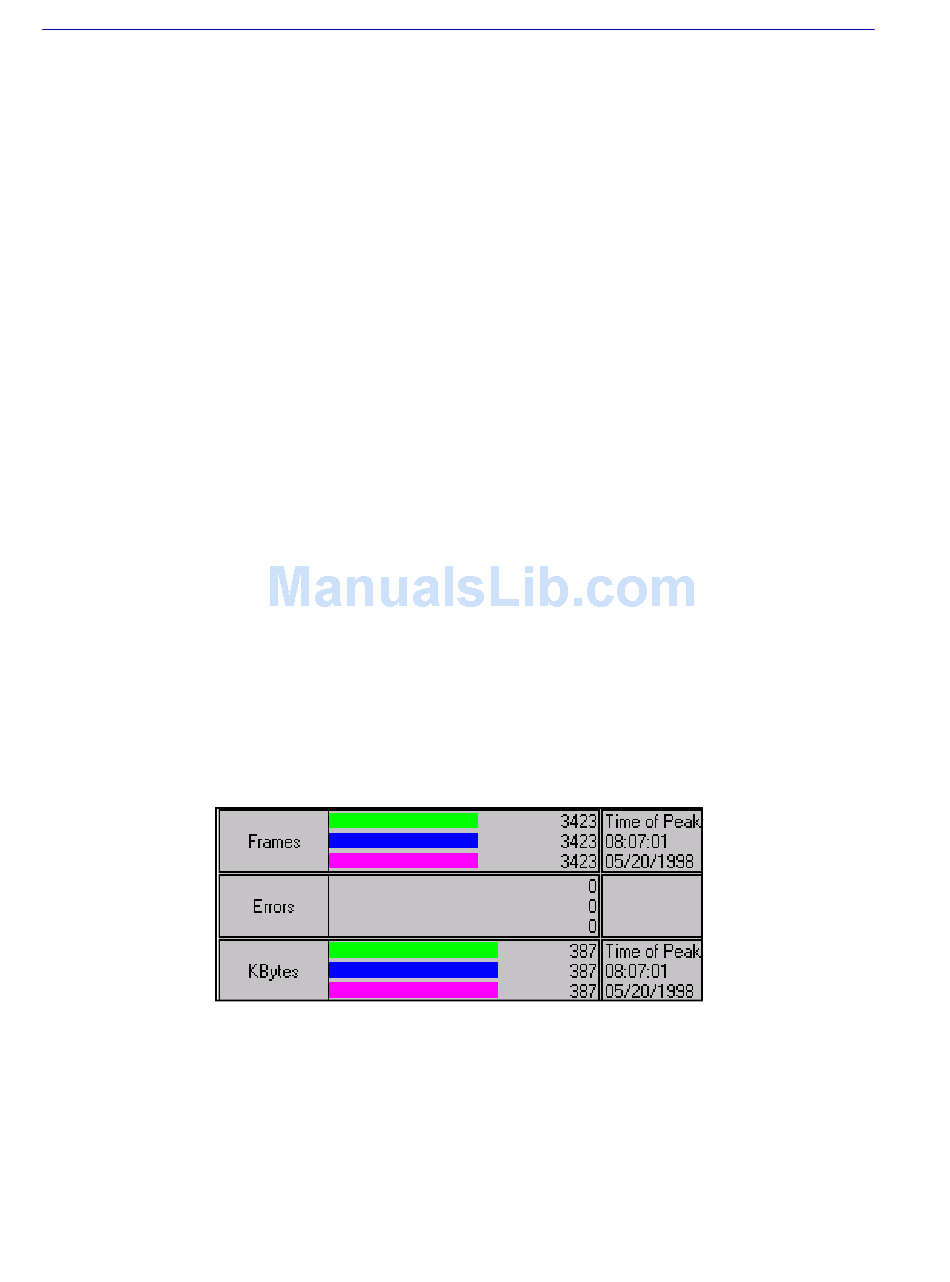

Figure 3-2. A Sample Timer Statistics Chart
Elapsed (Green) — Indicates the level of activity during the last time interval.
Average (Blue) — Indicates the average level of activity over all time intervals
since the window was invoked.
Setting
Figure 3-2.
Statistics Window Features
