Device Type

Choosing the Device Type... option from the Device menu brings up a window
that describes the management device being modeled:

Module Type

By selecting the Module Type option from the Module menu on the
MicroMMAC-T Chassis View window, you can view a description of the module
types in your MicroMMAC-T-controlled HubSTACK.
To view a module type:
1. Click on the Module index of the desired module in the HubSTACK. The
2. Drag down to Module Type.... A Module Type text box, similar to the example

Managing the Hub

In addition to the performance and configuration information described in the
preceding sections, the Chassis View also provides you with the tools you need to
configure your hub and keep it operating properly. Hub management functions
include configuring the management station, viewing network information,
viewing ring port status, setting device date and time, resetting the device,
enabling and disabling port mapping and link traps, and enabling and disabling
station ports.
Managing the Hub

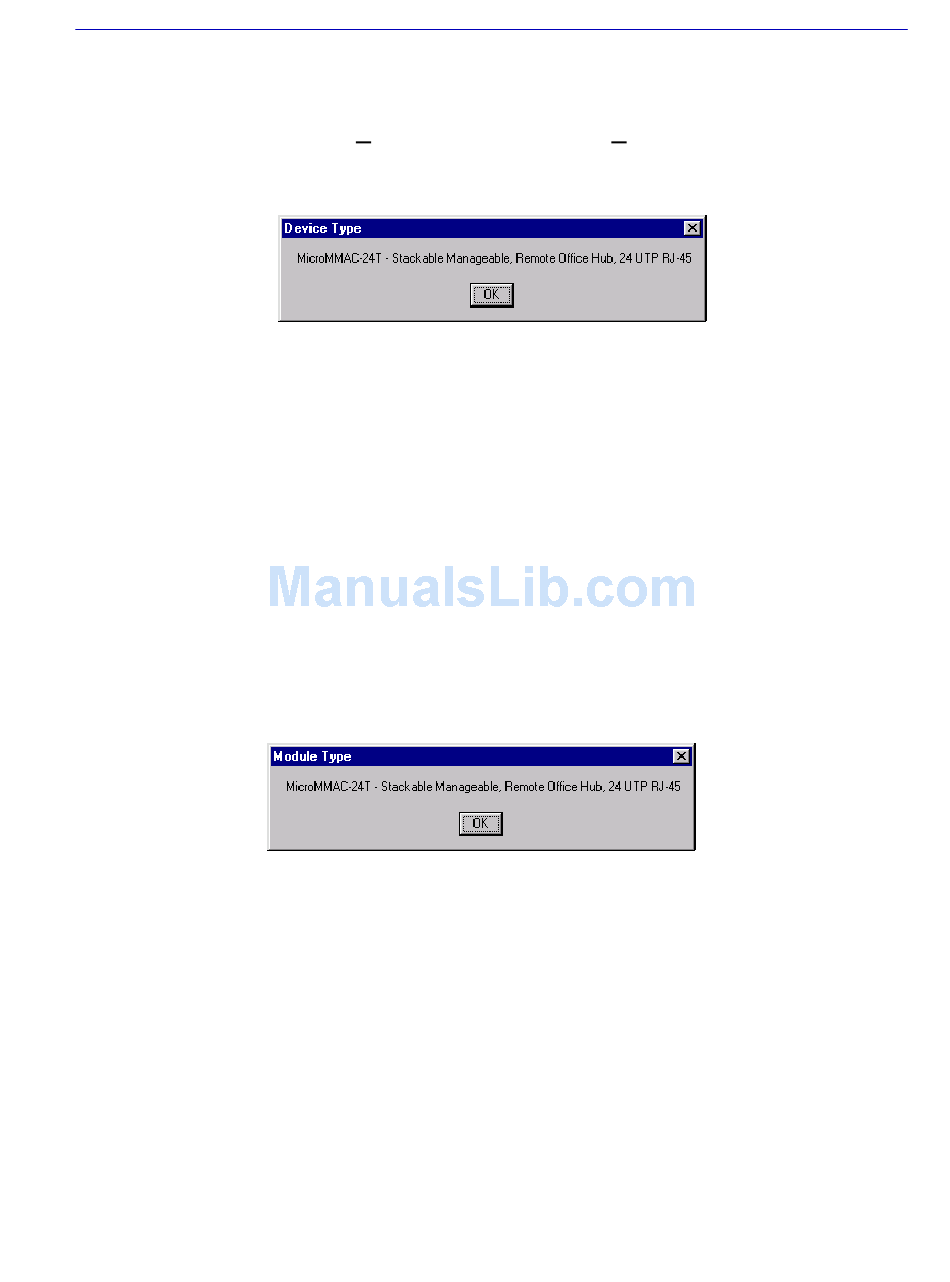

Figure 2-4. Sample Device Type Window
Module menu will appear.
shown in Figure 2-5, will appear describing the module type. If Module Type is
not supported by the selected module, "Unknown" will appear in the text box.
Figure 2-5. Sample Module Type Text Box
The MicroMMAC-T Chassis View
2-13
