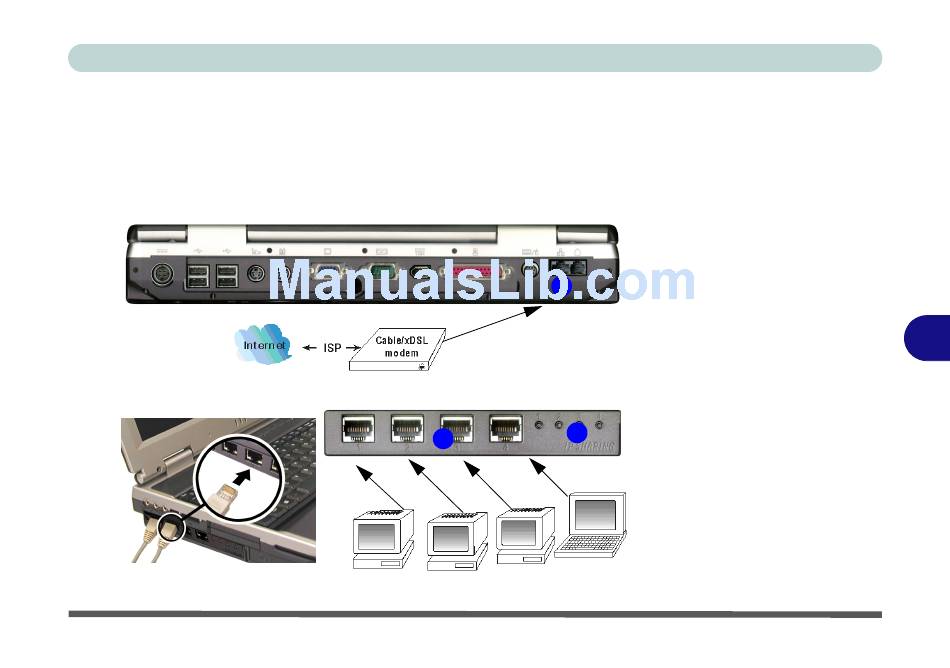

Cable Connections
Your existing cable modem or xDSL connection will connect to the RJ45
LAN jack at rear of your computer. Any other devices will connect to one of
the four ports on the IP sharing module. When a device is connected the LED
indicators will flash.
1
UTP Ethernet Standard/Cross-Over Cable
3
2
Options
Figure 7 - 9
Ports & LEDs
1.
RJ-45 LAN Jack
2.
Four RJ45 dual-
speed (10/
100Mbps) ports
3.
LED Indicators
(flash green for
100Mbps
connection/
orange for
10Mbps
connection)
