Left-side View

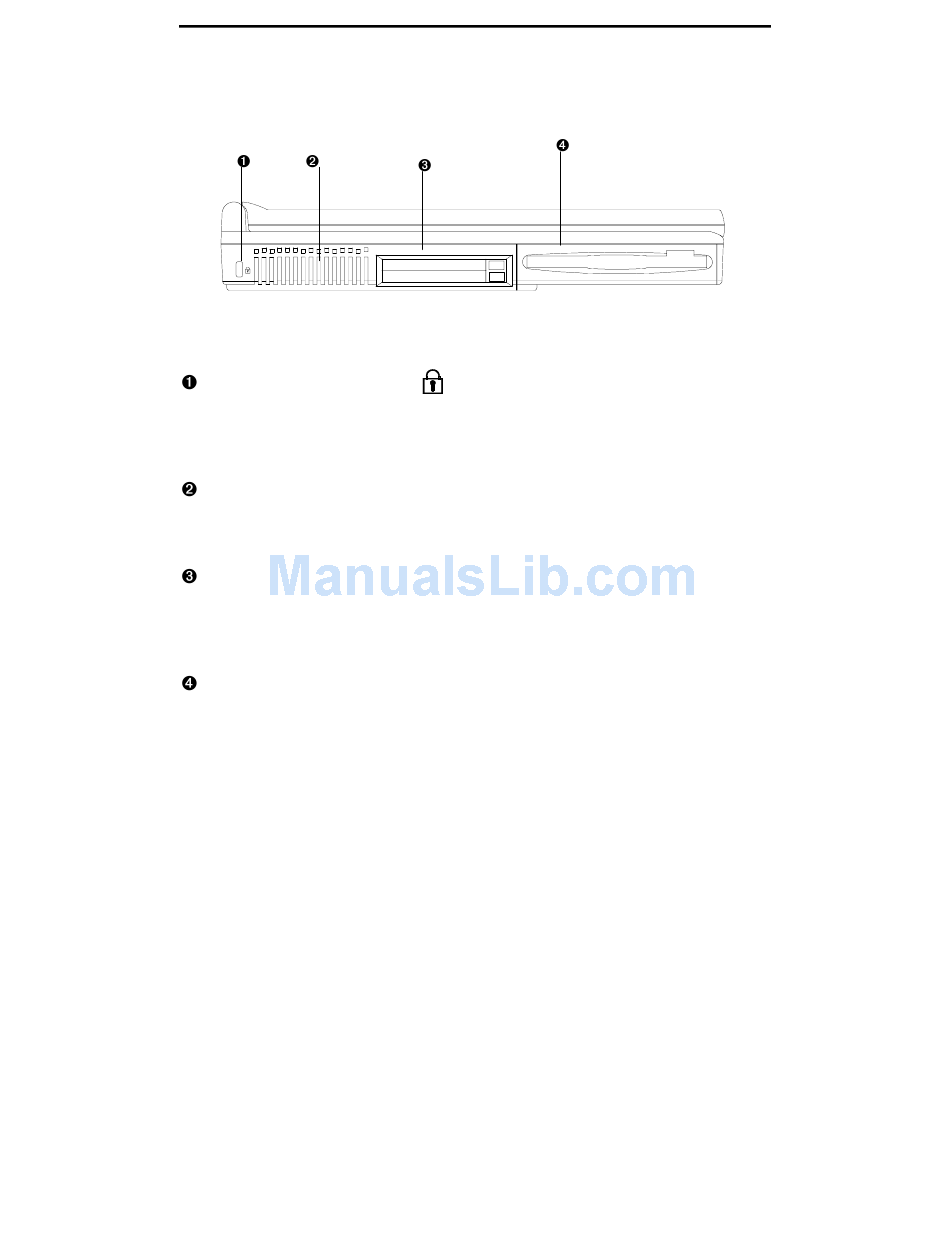

Figure 1-8

Security Connector

The Security Connector is used to protect your DeskNote from being
stolen. Wrap the steel cable around your desk. Next, insert the locking
device into this security connector.

Ventilation

The DeskNote provides ventilation to dissipate the system's operating heat. Do
not block or obstruct it during operation.

PC Card Sockets

The DeskNote provides two Type II or one Type III PC card sockets. Both
sockets will expand the system capabilities when a PC card is inserted. (Please
refer to Chapter 2: Operation for more information on Using PC Card socket.)

Removable 3.5" Floppy Disk Drive

The DeskNote comes standard with a removable 3,5" 1.44MB floppy drive
installed in a bay. The floppy disk drive module can be replaced with optional
drive units, such as a 12.7mm high 2.5" hard disk drive, a 12.7mm high LS-120
120MB floppy drive or a secondary battery pack. (Please refer to Chapter 2:
Operation for more information on using floppy disk drive.)
Chapter 1—Getting Started 1-11
