Chapter 3
5. Connect the cooling fan power cable to the fan connector on the system board.
CAUTION Ensure that you connect the fan to the correct system board connector. If necessary, see
"System Board Layout" in Chapter 9, "Specifications."
6. Replace the left side cover.
7. Replace the external cables and power cord.
8. Power on the Server as described in Chapter 1, "Controls and Indicators."
The BIOS automatically recognizes the new processor. Ensure that the latest version of BIOS is
installed. To learn which version of BIOS is currently installed, press F2 during startup, and then select
Summary from the list of options. To get the latest BIOS version for the HP Server tc2110, connect to
HP's support web site.
http://www.hp.com/

Accessory Boards

The system board in the HP Tower Server tc2110 provides one AGP video card (installed) and three PCI slots
(P1 through P3), 32-bits at 33 MHz bus speed. Some PCI slots may come with pre-installed boards. The SCSI
model requires the first slot, (P1) for the SCSI controller board.

Tested PCI Boards

For a list of tested PCI boards, check for compatibility in the Hardware Tested Products list for the HP Server
tc2110 under the Technical Support topic for the specific NOS used in the Server at HP's web site:
http://www.hp.com/
CAUTION Some accessory board outputs may exceed U.S. National Electrical code (NFPA 70)
Class 2 or limited power source limits and must use appropriate interconnecting cabling
in accordance with the National Electrical Code.
NOTE All Hewlett-Packard accessory boards comply with the U.S. National Electrical code
(NFPA 70) Class 2.
36

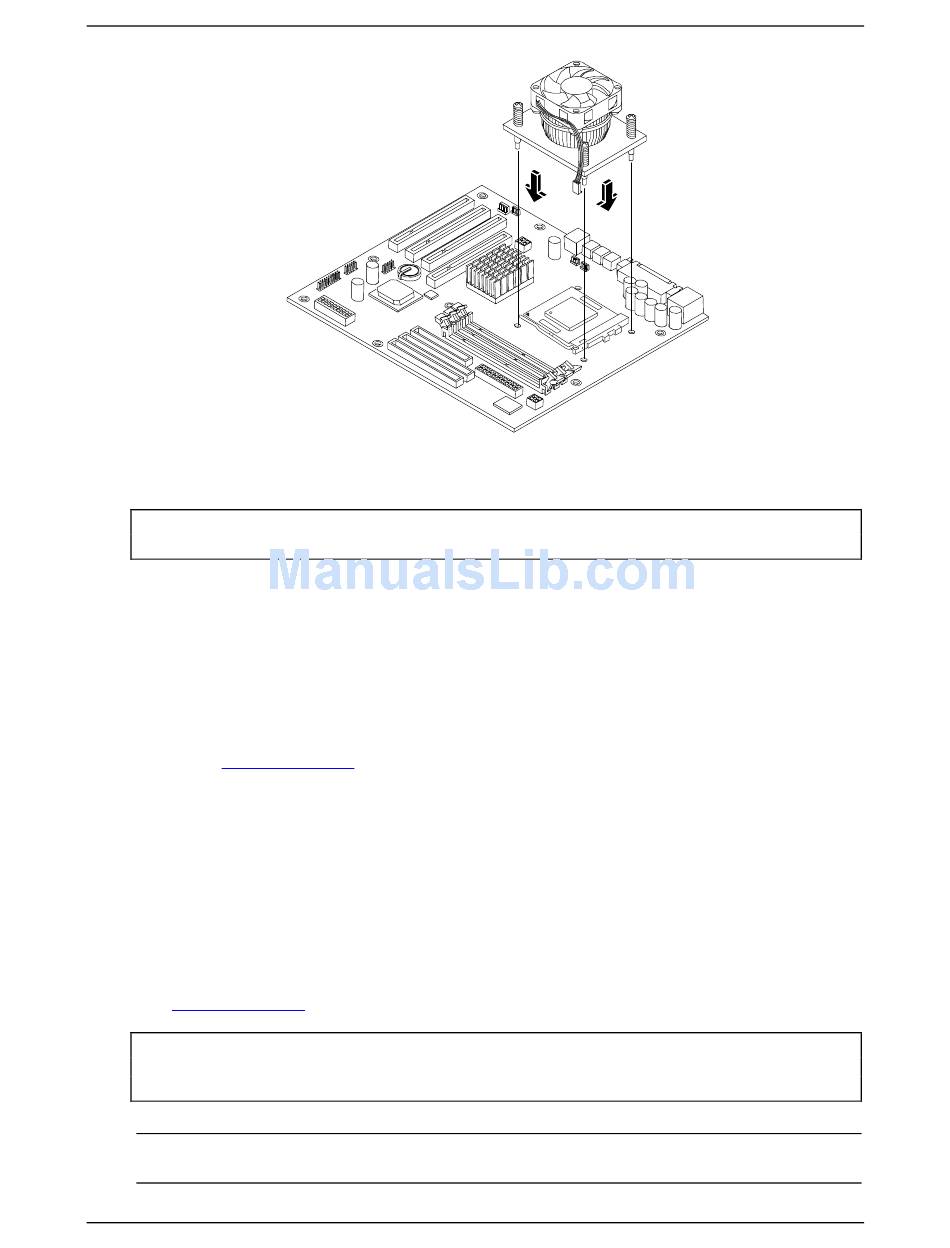

Figure 3-18. Replacing Heat Sink and Cooling Fan
Installing and Configuring
