Chapter 3

Memory Modules

The main memory for the HP Tower Server tc2110 is implemented using three memory slots on the system
board and it supports up to 1.5 GB (512 MB x 3) of memory. The Server only supports HP 168-pin, PC 133
(133 MHz), 3.3V, unbuffered, ECC SDRAM DIMMs and ships with at least one 128 MB DIMM installed.
NOTE Use only memory modules provided for your HP Server model. The use of other memory
modules is not supported. Install only 128 MB, 256 MB, or 512 MB unbuffered ECC
SDRAM modules.
To ensure you have the correct DIMMs before installation, refer to one of the following for a list of qualified
DIMMs:
· HP Order Assistant on the HP web site at:
http://www.hp.com/
· HP Customer Service

Tools Required

Use an anti-static service kit (3M 8501/8502/8503 or equivalent). This kit includes a static-dissipating work
surface, a chassis clip lead, and a wrist strap.

Memory Installation Guidelines

The HP Server tc2110 uses PC 133 (133 MHz) unbuffered ECC SDRAM DIMMs, which are electrically
different from the EDO and PC100 SDRAM memory modules used in previous HP Server models.
· DIMMs sizes supported are 128 MB, 256 MB, or 512 MB in any combination.

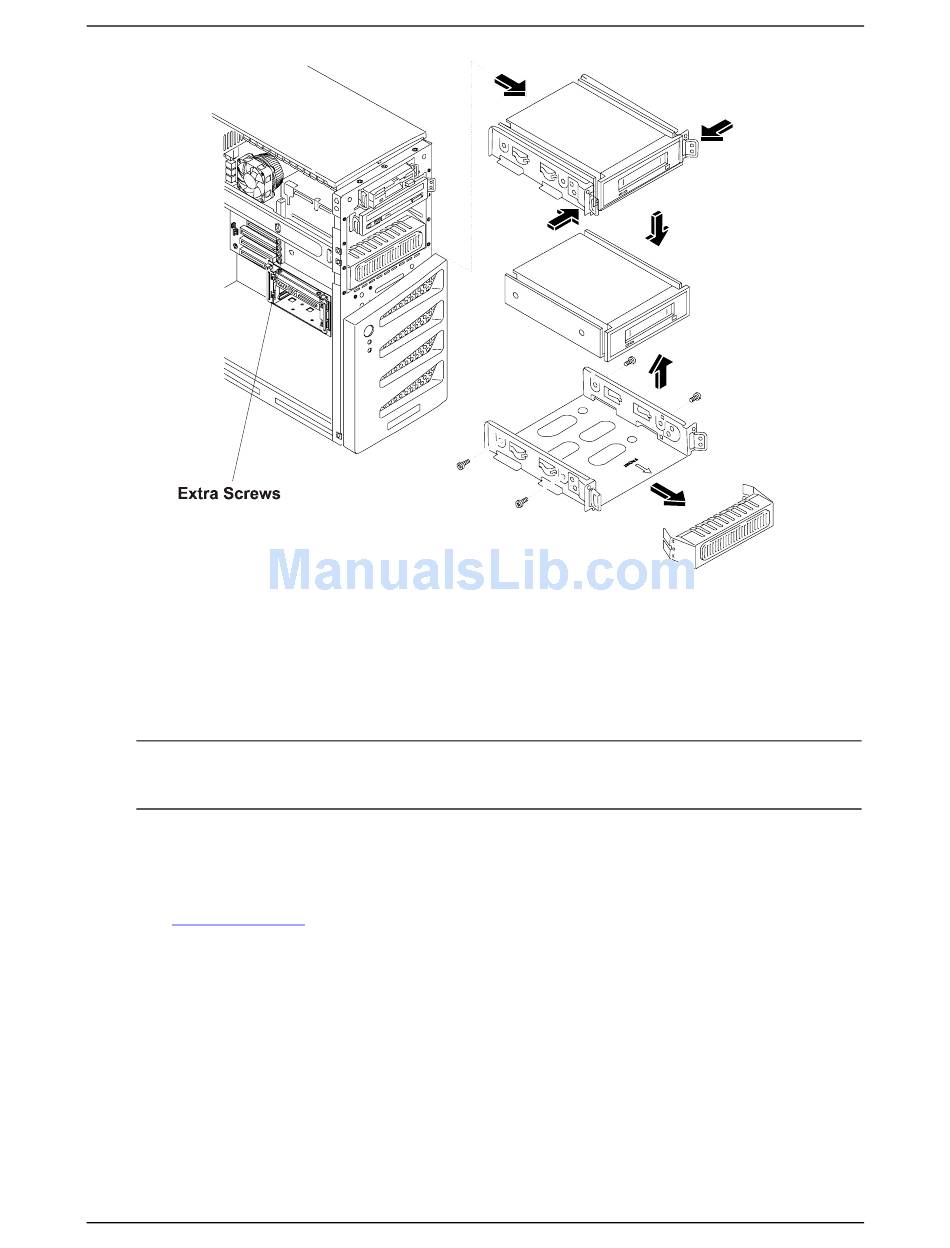

Figure 3-11. Installing the Optional Backup Tape Drive
Installing and Configuring
29
