Removing The Processor - HP Tc2110 - Server - 128 MB RAM Maintenance Manual

Chapter 7
3. Remove the left side cover.
WARNING The power supply will continue to provide standby current to the HP Server until the
power cord is disconnected from the AC power source.
4. Lay the Server on its side (components showing).
5. Disconnect the cooling fan power cable from the connector on the system board.
6. Remove the screws securing the heat sink-cooling fan. Remove the heat sink by twisting and lifting it.
NOTE The heat sink on your HP Server tc2110 may look different than the one shown in the
illustration. If the heat is secured with thumb latches, press to unhook the thumb latch,
then lift the heat sink and release the hook latch.
7. If the processor is stuck to the heat sink, carefully remove the processor from the heat sink, using flat
tool such as a screwdriver.

Removing the Processor

2. If you have not removed the heat sink-cooling fan assembly, do so now before continuing.
CAUTION Wear a wrist-strap and use a static-dissipating work surface connected to the chassis
when handling components. Ensure the metal of the wrist-strap contacts your skin
3. Open the ZIF lever completely to allow removal of the processor.
84

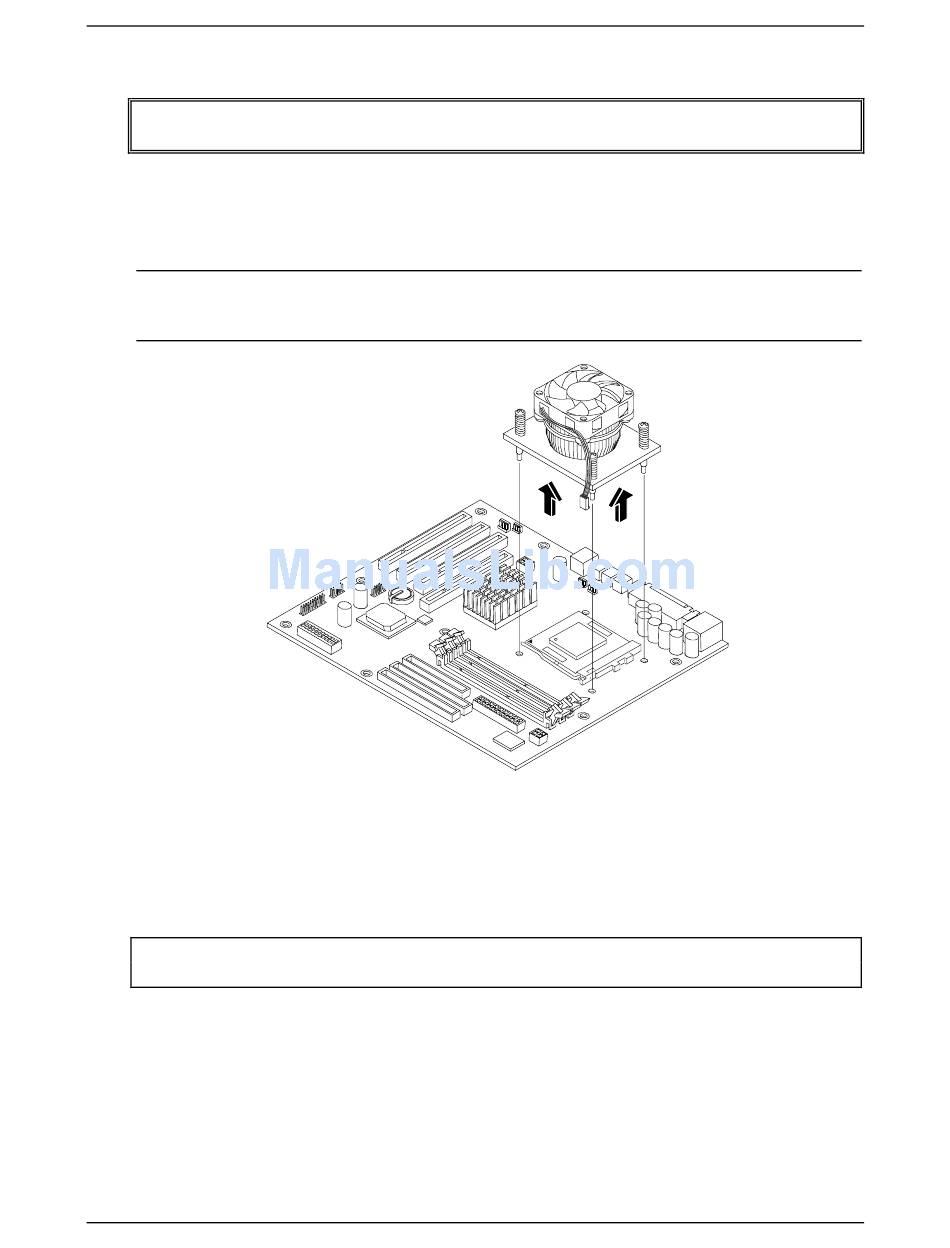

Figure 7-10. Removing Heat Sink and Cooling Fan
Replacing Parts
